AXN480530P Equivalent & Substitute Parts

Part Overview

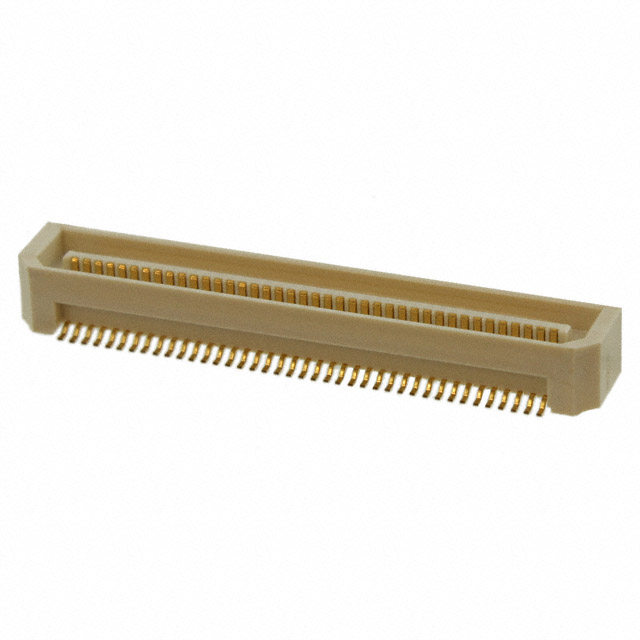

The AXN480530P is an 80-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing production support, maintenance, and design updates. The part operates within the P8 series and is suitable for applications requiring dual-row header configurations with 0.031" (0.80mm) pitch spacing.

Substiute Parts

AXN480530P

Panasonic Electric WorksIn Stock: 797AXN480530P Datasheet

Current PartRFQ

AXK6S80537YG

Panasonic Electric WorksIn Stock: 919AXK6S80537YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AXN480530P is determined by the following critical parameters:

• Connector Type: Header with outer shroud contacts (mechanical and electrical interface requirement)
• Number of Positions: 80 positions (functional capacity)
• Number of Rows: 2 rows (physical layout)
• Mounting Type: Surface mount (assembly process compatibility)
• Contact Finish: Gold plating (electrical performance and corrosion resistance)
• Mated Stacking Heights: 5mm, 5.5mm, 8mm (mechanical compatibility with mating connectors)

The substitute part AXK6S80537YG maintains compatibility across these core parameters. However, the pitch specification differs: the AXN480530P operates at 0.031" (0.80mm) pitch, while the AXK6S80537YG operates at 0.020" (0.50mm) pitch. This pitch difference results in different height above board specifications (0.186" vs. 0.169") and represents a design change rather than a direct pin-for-pin replacement. Selection between these parts depends on PCB layout constraints and mating connector availability.

Parameter Comparison

Engineering Selection Recommendations

The AXK6S80537YG is the identified substitute for the obsolete AXN480530P. Key selection factors include:

Product Status: The AXK6S80537YG maintains active production status, ensuring long-term availability and supply chain continuity compared to the obsolete AXN480530P.

Compliance: The AXK6S80537YG is RoHS compliant, meeting current environmental and regulatory requirements. Both parts carry identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Pitch Specification Change: The transition from 0.031" (0.80mm) to 0.020" (0.50mm) pitch requires PCB layout modification and verification of mating connector compatibility. This is not a direct replacement but a design update.

Mechanical Compatibility: Both parts maintain identical mated stacking heights (5mm, 5.5mm, 8mm) and board guide features, supporting compatibility with existing mechanical interfaces.

Moisture Sensitivity: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.

Frequently Asked Questions (FAQ)

Q: Can the AXK6S80537YG be used as a direct replacement for the AXN480530P without PCB modification?

A: No. The pitch difference (0.031" vs. 0.020") requires PCB layout changes. The footprint, trace routing, and via placement must be redesigned to accommodate the finer pitch specification.

Q: Are the mating connectors interchangeable between these two parts?

A: No. The different pitch specifications require different mating connectors. Verify mating connector availability in the 0.020" (0.50mm) pitch specification before committing to the AXK6S80537YG.

Q: What is the significance of the height above board difference?

A: The AXN480530P has a height of 0.186" (4.72mm), while the AXK6S80537YG has 0.169" (4.30mm). This 0.017" difference may affect clearance calculations in confined spaces or with overlapping components.

Q: Does the AXK6S80537YG meet current environmental standards?

A: Yes. The AXK6S80537YG is RoHS compliant, meeting current environmental regulations. The AXN480530P status is not specified.

Q: Are both parts available in the same packaging format?

A: No. The AXN480530P packaging is not specified. The AXK6S80537YG is supplied in Tape & Reel (TR) format, which is standard for automated assembly processes.

Q: What is the inventory status for these parts?

A: The AXN480530P has 742 pieces in stock (obsolete status). The AXK6S80537YG has 850 pieces in stock (active status), providing better long-term availability assurance.
