AXN460430S Equivalent & Substitute Parts

Part Overview

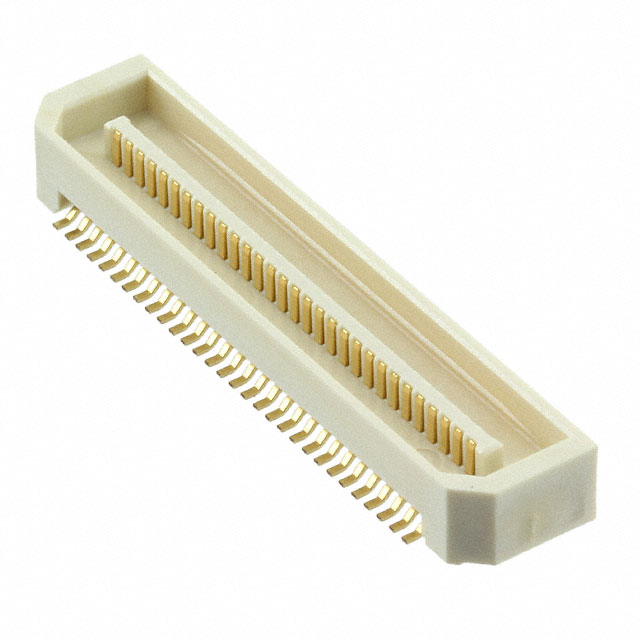

The AXN460430S is a 60-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component belongs to the P8 series and features a 0.031" (0.80mm) pitch configuration across 2 rows.

The AXN460430S is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this connector.

Substiute Parts

AXN460430S

Panasonic Electric WorksIn Stock: 1715AXN460430S Datasheet

Current PartRFQ

AXK6S60447YG

Panasonic Electric WorksIn Stock: 3007AXK6S60447YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AXN460430S is determined by the following critical parameters:

• Connector Type: Header with outer shroud contacts (functional requirement)
• Number of Positions: 60 positions (electrical requirement)
• Number of Rows: 2 rows (physical layout requirement)
• Mounting Type: Surface mount (assembly requirement)
• Contact Finish: Gold plating (electrical performance requirement)
• Mated Stacking Heights: 4mm, 4.5mm, 7mm (mechanical compatibility requirement)

The identified substitute part AXK6S60447YG maintains compatibility across these core parameters. However, the pitch specification differs between the main part (0.031" / 0.80mm) and the substitute (0.020" / 0.50mm), which represents a significant geometric change. This difference affects PCB layout, mating connector specifications, and overall form factor. The substitute operates within the same functional category and shares the same position count, row configuration, and mounting methodology, but requires design verification for pitch-dependent applications.

Parameter Comparison

Engineering Selection Recommendations

The AXN460430S is obsolete and no longer in active production. The AXK6S60447YG is the identified substitute part and maintains active product status with ROHS3 compliance and REACH unaffected certification.

Selection of AXK6S60447YG requires consideration of the pitch difference (0.031" versus 0.020"). This geometric change necessitates PCB layout modification and confirmation that mating connectors compatible with 0.020" pitch are available or can be sourced. The substitute maintains the same position count, row configuration, mounting methodology, contact finish, and stacking height compatibility.

Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications and unlimited moisture sensitivity rating, indicating equivalent regulatory and environmental handling requirements.

Frequently Asked Questions (FAQ)

Q: Can AXK6S60447YG be used as a direct drop-in replacement for AXN460430S?

A: No. While both parts share the same connector type, position count, row configuration, and mounting method, the pitch differs significantly (0.031" versus 0.020"). This requires PCB redesign and confirmation of compatible mating connectors. Direct substitution without design modification is not possible
