AXN330130P Equivalent & Substitute Parts

Part Overview

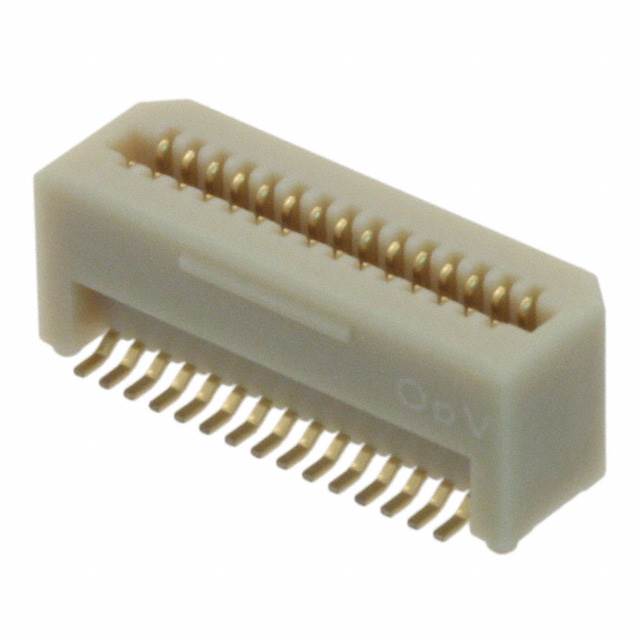

The AXN330130P is a 30-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The connector features a 0.031" (0.80mm) pitch configuration with dual-row arrangement and board guide features, operating at unlimited moisture sensitivity level (MSL 1).

Substiute Parts

AXN330130P

Panasonic Electric WorksIn Stock: 1004AXN330130P Datasheet

Current PartRFQ

AXK5S30337YG

Panasonic Electric WorksIn Stock: 858AXK5S30337YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXN330130P is determined by the following critical parameters:

• Connector Type: Socket, Center Strip Contacts (must match)
• Number of Positions: 30 (must match)
• Number of Rows: 2 (must match)
• Mounting Type: Surface Mount (must match)
• Contact Finish: Gold (must match)
• Manufacturer: Panasonic Electric Works (preferred for compatibility assurance)

The AXK5S30337YG qualifies as a substitute based on matching connector type, position count, row configuration, mounting method, and contact finish. However, this substitute introduces a pitch modification from 0.031" (0.80mm) to 0.020" (0.50mm), which represents a dimensional change requiring circuit board redesign. The substitute maintains the same manufacturer and gold contact specification, ensuring electrical and environmental performance equivalence within the altered pitch specification.

Parameter Comparison

Engineering Selection Recommendations

The AXK5S30337YG represents the only documented substitute for the obsolete AXN330130P within Panasonic Electric Works' product portfolio. Selection of this substitute is justified by:

• Product Status Alignment: The substitute is active and currently manufactured, ensuring long-term availability and supply chain continuity.
• Compliance Certification: The AXK5S30337YG carries RoHS compliance certification, meeting current environmental and regulatory requirements.
• Functional Equivalence: Both connectors maintain identical connector type, position count, row configuration, and contact finish specifications.
• Moisture Resistance: Both parts operate at MSL 1 (unlimited), providing equivalent environmental performance.

The pitch reduction from 0.031" to 0.020" necessitates printed circuit board layout modification. The increased height above board (0.238" versus 0.205") requires clearance verification in the target application. These dimensional changes require design validation but do not preclude functional substitution.

Frequently Asked Questions (FAQ)

Q: Can the AXK5S30337YG be used as a direct drop-in replacement for the AXN330130P?

A: No. While both connectors share identical position count, row configuration, and contact specifications, the pitch change from 0.031" (0.80mm) to 0.020" (0.50mm) requires circuit board redesign. The increased height above board (0.238" versus 0.205") also requires clearance verification. These are not drop-in compatible without layout modification.

Q: What is the primary reason for substitution?

A: The AXN330130P is classified as obsolete. The AXK5S30337YG is an active product from the same manufacturer, ensuring continued availability and manufacturing support.

Q: Are there packaging differences between these parts?

A: Yes. The AXN330130P packaging is not specified in available documentation. The AXK5S30337YG is supplied in Tape & Reel (TR) format, which is standard for surface mount production environments.

Q: Do both connectors meet current environmental standards?

A: Both parts operate at MSL 1 (unlimited moisture sensitivity level). The AXK5S30337YG additionally carries RoHS compliance certification, meeting current regulatory requirements.

Q: What are the mated stacking height options for each connector?

A: The AXN330130P supports mated stacking heights of 6mm, 7mm, 8mm, 13mm, and 14mm. The AXK5S30337YG supports 7mm, 8mm, and 9mm. Verify mating connector compatibility with your specific application requirements.

Q: Are both connectors suitable for high-reliability applications?

A: Both connectors feature gold contact finish and center strip contact design, supporting high-reliability applications. The AXK5S30337YG's active status and RoHS compliance provide additional assurance for current production standards.
