AXN330038P Equivalent & Substitute Parts

Part Overview

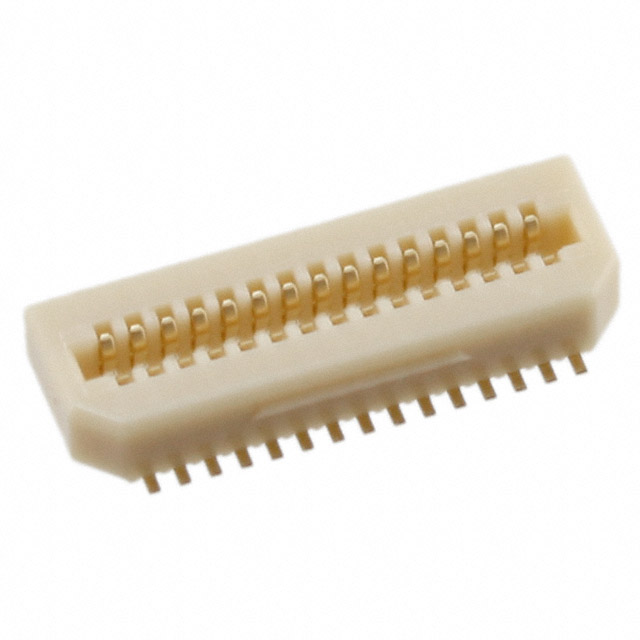

The AXN330038P is a 30-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The connector features a 0.031" (0.80mm) pitch configuration across 2 rows with a 3mm mated stacking height option and board guide features.

Substiute Parts

AXN330038P

Panasonic Electric WorksIn Stock: 1045AXN330038P Datasheet

Current PartRFQ

AXK5S30047YG

Panasonic Electric WorksIn Stock: 3433AXK5S30047YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXN330038P is determined by the following critical parameters:

• Connector Type: Socket configuration with center strip contacts
• Number of Positions: 30-position requirement
• Number of Rows: 2-row configuration
• Mounting Type: Surface mount capability
• Contact Finish: Gold plating
• Moisture Sensitivity Level: MSL 1 or equivalent

The substitute part AXK5S30047YG shares the same connector type, position count, row configuration, mounting method, and contact finish. However, this substitute operates at a different pitch specification (0.020" versus 0.031"), which represents a fundamental geometric difference. This pitch variance affects PCB footprint design, mating interface dimensions, and mechanical compatibility. Substitution is only valid when the receiving application's PCB layout and mating connector accommodate the 0.020" pitch specification.

Parameter Comparison

Engineering Selection Recommendations

The AXK5S30047YG is an active product from the same manufacturer, providing supply chain continuity for the obsolete AXN330038P. Both components maintain identical moisture sensitivity ratings and gold contact finishes, ensuring equivalent environmental performance characteristics.

Selection of AXK5S30047YG requires confirmation that the application's PCB footprint and mating connector interface support the 0.020" (0.50mm) pitch specification. The substitute's increased height above board (0.120" versus 0.087") and expanded stacking height range (4mm–6mm versus 3mm–5mm) must be evaluated against available board clearance and enclosure constraints.

The substitute's active product status provides superior long-term availability and supply reliability compared to the obsolete main part.

Frequently Asked Questions (FAQ)

Q: Can AXK5S30047YG directly replace AXN330038P without PCB redesign?

A: Direct replacement without PCB modification is not possible. The pitch difference (0.031" to 0.020") requires corresponding changes to the PCB footprint pattern. The mating connector must also support the 0.020" pitch specification.

Q: What is the primary difference between these two connectors?

A: The primary difference is the contact pitch. AXN330038P uses 0.031" (0.80mm) pitch, while AXK5S30047YG uses 0.020" (0.50mm) pitch. This affects the physical spacing of all 30 contacts and the overall connector dimensions.

Q: Are both connectors RoHS compliant?

A: The main part AXN330038P does not list RoHS status in the provided specifications. The substitute AXK5S30047YG is explicitly RoHS compliant.

Q: What packaging is available for the substitute part?

A: AXK5S30047YG is supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes.

Q: Do both connectors have the same moisture sensitivity requirements?

A: Yes. Both components are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: What is the height difference between these connectors?

A: AXN330038P has a height above board of 0.087" (2.20mm), while AXK5S30047YG measures 0.120" (3.05mm). This 0.033" difference must be considered in enclosure design and component placement.
