AXLPI-1105-2R2M-T Equivalent & Substitute Parts

Part Overview

The AXLPI-1105-2R2M-T is a 2.2 µH semi-shielded wirewound inductor manufactured by Abracon LLC, designed for surface mount applications in the 0402 (1005 Metric) package. This component is classified as Active product status and is widely used in RF filtering, impedance matching, and signal conditioning circuits requiring compact form factors with controlled DC resistance characteristics.

Substitute parts are identified when component availability is constrained, supply chain disruptions occur, or design flexibility permits equivalent performance specifications. The AISC-040202F-2R2M-T represents a parametrically equivalent alternative from the same manufacturer, offering identical electrical and mechanical characteristics.

Substiute Parts

AXLPI-1105-2R2M-T

Abracon LLCIn Stock: 932AXLPI-1105-2R2M-T Datasheet

Current PartRFQ

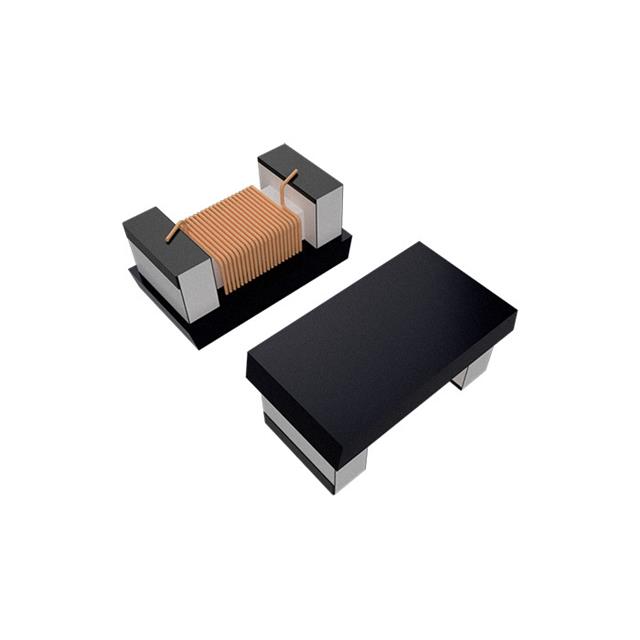

AISC-040202F-2R2M-T

Abracon LLCIn Stock: 11055AISC-040202F-2R2M-T Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The AISC-040202F-2R2M-T qualifies as a parametric equivalent to the AXLPI-1105-2R2M-T based on strict alignment across all critical electrical and mechanical parameters. Substitution eligibility is determined by the following criteria:

Electrical Parameters (Must Match Exactly):

• Inductance value: 2.2 µH
• Inductance tolerance: ±20%
• Current rating: 300 mA
• Saturation current: 190 mA
• DC resistance maximum: 2.5 Ohm
• Self resonant frequency: 150 MHz
• Operating temperature range: -40°C to 125°C

Mechanical Parameters (Must Match Exactly):

• Package / Case: 0402 (1005 Metric)
• Mounting type: Surface Mount
• Physical dimensions: 0.043" L x 0.024" W (1.10mm x 0.60mm)
• Maximum seated height: 0.020" (0.50mm)

Material & Construction (Must Match Exactly):

• Core material: Ferrite
• Shielding configuration: Semi-Shielded
• Component type: Wirewound

Both parts are manufactured by Abracon LLC and maintain Active product status, ensuring continued availability and support.

Parameter Comparison

Engineering Selection Recommendations

Both the AXLPI-1105-2R2M-T and AISC-040202F-2R2M-T are Active products from Abracon LLC with identical compliance certifications. Selection between these parts is based on availability and supply chain considerations rather than technical performance differentiation.

Compliance & Regulatory Status:

• Both components are ROHS3 Compliant
• Both maintain REACH Unaffected status
• Both carry MSL Rating 1 (Unlimited moisture sensitivity level)
• Both are classified under ECCN EAR99 and HTSUS 8504.50.8000

Packaging & Logistics:

• AXLPI-1105-2R2M-T: 870 Pcs available in Tape & Reel packaging
• AISC-040202F-2R2M-T: 11,008 Pcs available in Tape & Reel packaging

The AISC-040202F-2R2M-T offers significantly higher inventory availability, making it the preferred selection when supply continuity is a priority. Both parts are suitable for direct substitution in existing designs without circuit modification or re-qualification.

Frequently Asked Questions (FAQ)

Q: Can AISC-040202F-2R2M-T be used as a direct replacement for AXLPI-1105-2R2M-T?

A: Yes. Both components are parametrically identical across all electrical specifications (inductance, current rating, DC resistance, frequency response), mechanical dimensions (0402 package, surface mount), and material composition (ferrite core, semi-shielded). Direct substitution is permissible without design changes.

Q: Are there any differences in performance between these two inductors?

A: No. The components share identical inductance values, tolerance bands, current ratings, saturation characteristics, and operating temperature ranges. Performance in circuit applications is equivalent.

Q: Do both parts use the same package and mounting method?

A: Yes. Both are 0402 (1005 Metric) surface mount components with identical physical dimensions: 0.043" L x 0.024" W (1.10mm x 0.60mm) and maximum seated height of 0.020" (0.50mm). PCB footprints and reflow profiles are interchangeable.

Q: What is the significance of the semi-shielded configuration?

A: Semi-shielded wirewound inductors provide partial electromagnetic field containment, reducing coupling to adjacent circuit traces while maintaining compact form factors. This configuration is suitable for RF filtering and impedance matching applications where moderate EMI isolation is required.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both AXLPI-1105-2R2M-T and AISC-040202F-2R2M-T are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements for electronic component manufacturing and distribution.

Q: What is the moisture sensitivity level (MSL) for these inductors?

A: Both components carry MSL Rating 1 (Unlimited), indicating no moisture sensitivity restrictions. Standard storage and handling procedures apply without special desiccant or controlled humidity requirements.

Q: Can these inductors handle the specified current continuously?

A: The current rating of 300 mA represents the maximum continuous current. The saturation current (Isat) of 190 mA indicates the point at which inductance begins to degrade. Operating below saturation current ensures stable inductance performance.
