AXK7L30223G Equivalent & Substitute Parts

Part Overview

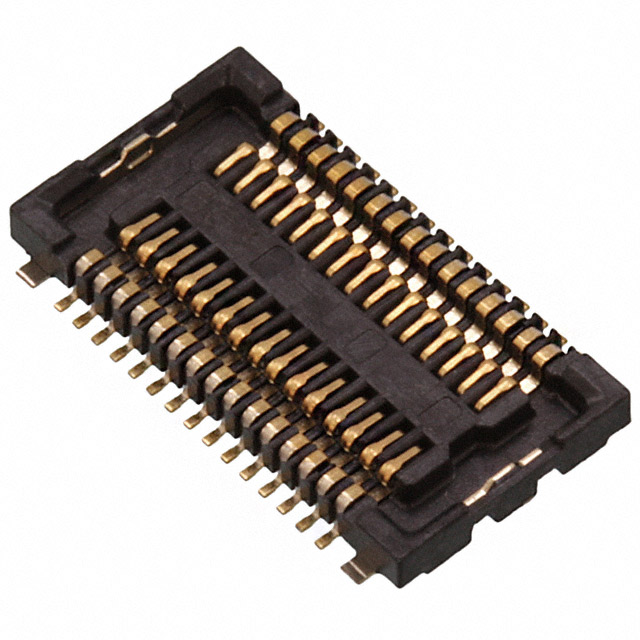

The AXK7L30223G is a 30-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This connector is part of the F4 series and features solder retention for reliable PCB assembly.

The AXK7L30223G is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this connector.

Substiute Parts

AXK7L30223G

Panasonic Electric WorksIn Stock: 39394AXK7L30223G Datasheet

Current PartRFQ

AXK7L30217G

Panasonic Electric WorksIn Stock: 899AXK7L30217G Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AXK7L30223G is determined by strict equivalence across the following critical parameters:

• Connector Type: Socket, Center Strip Contacts
• Number of Positions: 30
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Mated Stacking Heights: 0.9mm
• Height Above Board: 0.034" (0.86mm)
• Features: Solder Retention
• Series Compatibility: F4

The AXK7L30217G meets all these parameters and is identified as a parametric equivalent. Both parts share identical electrical and mechanical specifications, ensuring functional interchangeability in applications requiring a 30-position surface mount rectangular connector socket with gold-plated center strip contacts.

Parameter Comparison

Engineering Selection Recommendations

The AXK7L30217G is the identified substitute for the obsolete AXK7L30223G. Both parts are manufactured by Panasonic Electric Works and share identical electrical and mechanical specifications across all critical parameters.

The AXK7L30217G offers the following advantages:

• Active Product Status: Currently in production and available through authorized distributors
• RoHS Compliance: Meets RoHS regulatory requirements
• Packaging: Available in Tape & Reel format, suitable for automated assembly processes
• Inventory Availability: Supports ongoing supply chain requirements

Selection of the AXK7L30217G as a replacement for the AXK7L30223G is supported by parametric equivalence and active product status, ensuring design continuity without functional or mechanical compromise.

Frequently Asked Questions (FAQ)

Q: Are the AXK7L30223G and AXK7L30217G mechanically interchangeable?

A: Yes. Both connectors share identical mechanical specifications, including pitch (0.016" / 0.40mm), number of positions (30), number of rows (2), mated stacking heights (0.9mm), and height above board (0.034" / 0.86mm). They are mechanically interchangeable in surface mount applications.

Q: Are the AXK7L30223G and AXK7L30217G electrically interchangeable?

A: Yes. Both connectors feature identical electrical specifications: 30-position socket configuration with center strip contacts, gold contact finish, and solder retention features. They are electrically interchangeable.

Q: What is the primary difference between these two parts?

A: The AXK7L30223G is obsolete, while the AXK7L30217G is an active product. The AXK7L30217G is supplied in Tape & Reel packaging and is RoHS compliant, whereas packaging and RoHS status are not specified for the AXK7L30223G.

Q: Can I use the AXK7L30217G in place of the AXK7L30223G in existing designs?

A: Yes. The AXK7L30217G is a parametric equivalent and can be used as a direct replacement without design modifications. Verify that your assembly process is compatible with Tape & Reel packaging if transitioning from bulk packaging.

Q: What does MSL 1 (Unlimited) mean?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. Components with MSL 1 have unlimited shelf life and do not require special moisture control during storage or handling.

Q: Are both parts compliant with the same regulatory standards?

A: Both parts share the same ECCN (EAR99) and HTSUS (8536.69.4040) classifications. The AXK7L30217G is explicitly RoHS compliant. Regulatory compliance status for the AXK7L30223G is not specified in the provided data.
