AXK7L10223G Equivalent & Substitute Parts

Part Overview

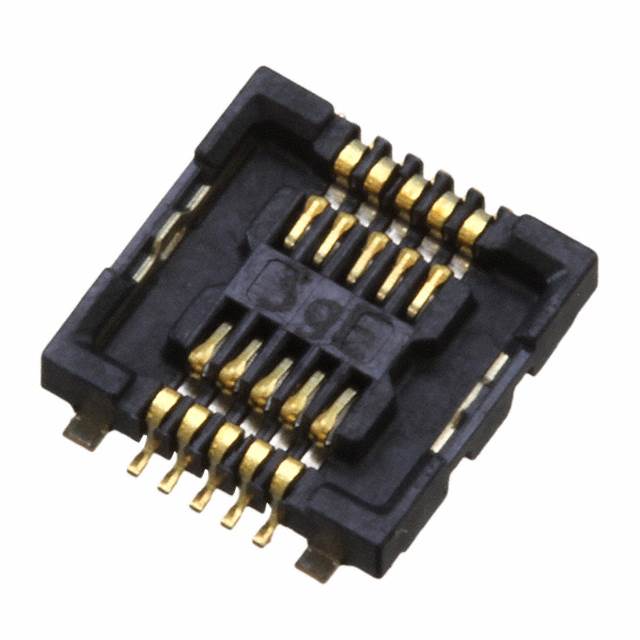

The AXK7L10223G is a 10-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and design continuity. The part features solder retention and operates within unlimited moisture sensitivity parameters, suitable for standard industrial and commercial applications.

Substiute Parts

AXK7L10223G

Panasonic Electric WorksIn Stock: 1347AXK7L10223G Datasheet

Current PartRFQ

AXK7L10217G

Panasonic Electric WorksIn Stock: 1189AXK7L10217G Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXK7L10223G is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Socket with center strip contacts
• Electrical Interface: 10 positions at 0.016" (0.40mm) pitch in 2-row configuration
• Mechanical Form Factor: Surface mount with identical mated stacking height (0.9mm) and height above board (0.034"/0.86mm)
• Contact Material & Finish: Gold-plated contacts
• Functional Features: Solder retention capability
• Environmental Rating: MSL 1 (Unlimited)

The AXK7L10217G meets all these criteria and qualifies as a parametric equivalent. The primary distinction is product status and packaging format, not electrical or mechanical performance.

Parameter Comparison

Engineering Selection Recommendations

The AXK7L10217G is the direct active equivalent for the obsolete AXK7L10223G. Selection of the substitute part is based on:

• Functional Equivalence: Identical electrical and mechanical specifications across all critical parameters
• Product Status: AXK7L10217G maintains active production status, ensuring supply chain continuity
• Compliance: AXK7L10217G carries RoHS Compliant certification, meeting current regulatory requirements
• Packaging Availability: Supplied in Tape & Reel format, standard for automated assembly processes

No design modifications or PCB layout changes are required when transitioning from AXK7L10223G to AXK7L10217G.

Frequently Asked Questions (FAQ)

Q: Are the AXK7L10223G and AXK7L10217G mechanically interchangeable?

A: Yes. Both parts share identical connector type, position count, pitch, row configuration, mounting method, and form factor dimensions. PCB footprints and mating interfaces are identical.

Q: What is the primary reason for substitution?

A: The AXK7L10223G is classified as obsolete. The AXK7L10217G is the active equivalent from the same manufacturer and series, ensuring continued availability and supply reliability.

Q: Does the packaging difference affect component performance?

A: No. Tape & Reel packaging is a distribution format only. The connector itself—its electrical properties, mechanical dimensions, and contact characteristics—remains unchanged.

Q: Is RoHS compliance a functional requirement for substitution?

A: RoHS compliance is a regulatory and environmental standard. The AXK7L10217G's RoHS Compliant status aligns with current manufacturing and export requirements, making it the appropriate choice for new designs and production runs.

Q: Can both parts be used in the same assembly?

A: Yes. The parts are parametrically equivalent and fully interchangeable at the component level. No circuit design changes or assembly procedure modifications are necessary.
