AXK760247GA Equivalent & Substitute Parts

Part Overview

The AXK760247GA is a 60-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications. This connector features a center strip with outer edge contacts configuration and gold-plated contact finish. The part is currently active in production with full RoHS compliance and MSL Level 1 rating, indicating unlimited shelf life under standard storage conditions. Identifying equivalent substitute parts is essential for supply chain continuity, inventory optimization, and ensuring design flexibility across manufacturing cycles.

Substiute Parts

AXK760247GA

Panasonic Electric WorksIn Stock: 906AXK760247GA Datasheet

Current PartRFQ

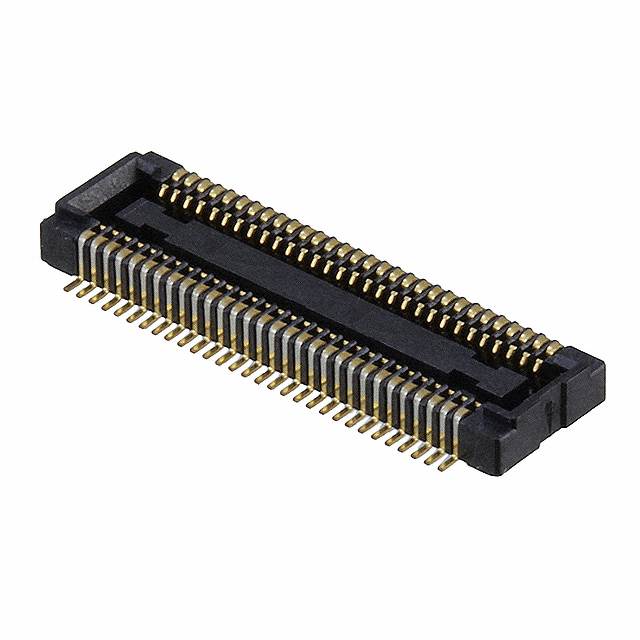

AXK760247A

Panasonic Electric WorksIn Stock: 1322AXK760247A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXK760247GA is determined by strict equivalence across the following critical parameters:

• Connector Type: Socket configuration with center strip and outer edge contacts
• Position Count: 60 positions
• Pitch Specification: 0.016" (0.40mm)
• Row Configuration: 2 rows
• Mounting Technology: Surface mount
• Contact Material: Gold plating
• Mechanical Dimensions: Mated stacking height of 2mm and height above board of 0.076" (1.92mm)
• Series Classification: P4 series
• Compliance Requirements: RoHS compliant with MSL Level 1

The substitute part AXK760247A shares identical electrical and mechanical specifications with the main part number, differing only in the suffix designation. Both parts originate from the same base product number (AXK760247) and maintain full compatibility within the P4 connector series.

Parameter Comparison

Engineering Selection Recommendations

Both the AXK760247GA and AXK760247A are active production parts from Panasonic Electric Works with full RoHS compliance and MSL Level 1 certification. The parts are electrically and mechanically equivalent, sharing identical specifications across all critical parameters including connector configuration, position count, pitch, mounting type, and contact finish. Selection between these parts may be based on inventory availability, lead time considerations, or supply chain preferences, as no technical differentiation exists between them. Both parts maintain the same base product designation (AXK760247) within the P4 series and are suitable for direct substitution in applications requiring 60-position surface mount rectangular connectors with 0.40mm pitch and gold-plated contacts.

Frequently Asked Questions (FAQ)

Q: Can AXK760247A be used as a direct replacement for AXK760247GA?

A: Yes. Both parts are parametrically equivalent across all electrical and mechanical specifications. They share identical connector type, position count, pitch, mounting configuration, and contact finish. Direct substitution is supported without design modification.

Q: What is the significance of the suffix difference between GA and A designations?

A: The suffix designations (GA and A) represent different manufacturing or packaging variants within the same base product number (AXK760247). Both variants maintain identical electrical and mechanical performance characteristics and are interchangeable for circuit design purposes.

Q: Are both parts suitable for high-reliability applications?

A: Both AXK760247GA and AXK760247A carry RoHS compliance certification and MSL Level 1 rating. Product status for both is active. Suitability for specific high-reliability applications depends on application-
