AXK710127G Equivalent & Substitute Parts

Part Overview

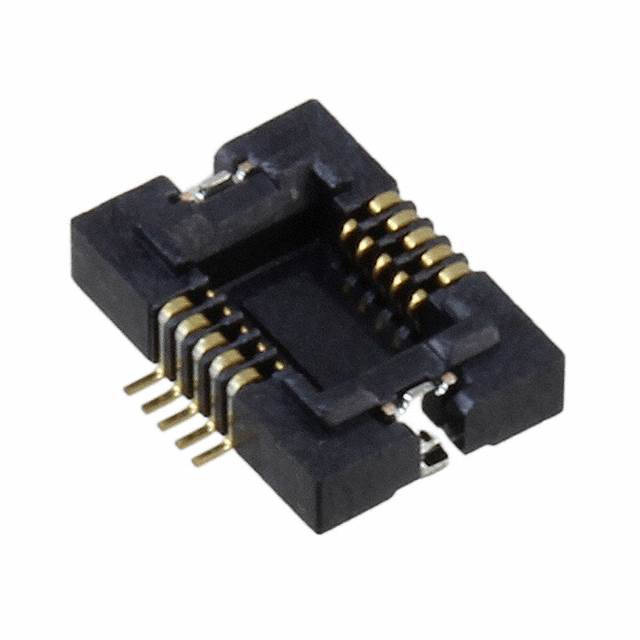

The AXK710127G is a 10-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip and outer edge contacts. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing production support and design continuity. The part features gold-plated contacts, solder retention capability, and compliance with RoHS standards, establishing the baseline requirements for substitute component selection.

Substiute Parts

AXK710127G

Panasonic Electric WorksIn Stock: 2892AXK710127G Datasheet

Current PartRFQ

AXT310124

Panasonic Electric WorksIn Stock: 27472AXT310124 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AXK710127G is determined by the following critical parameters that must remain constant across equivalent components:

• Connector Position Count: 10 positions (non-negotiable for circuit compatibility)
• Contact Pitch: 0.016" (0.40mm) (determines PCB footprint compatibility)
• Row Configuration: 2 rows (establishes physical layout requirements)
• Mounting Technology: Surface Mount (required for assembly process compatibility)
• Contact Material & Finish: Gold plating (ensures electrical performance and reliability)
• Mated Stacking Height: 1.5mm nominal (critical for mating connector clearance)
• RoHS Compliance: Required for regulatory and supply chain continuity

The AXT310124 meets all substitution criteria while offering the advantage of active product status and significantly higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The AXT310124 is the qualified substitute for the obsolete AXK710127G based on the following engineering criteria:

Electrical Compatibility: Both components maintain identical position count (10), pitch (0.016"/0.40mm), row configuration (2), and contact material (gold). Mated stacking height specifications are equivalent at 1.5mm nominal, ensuring proper mating connector engagement and electrical continuity.

Mechanical Compatibility: Height above board variance is 0.002" (0.05mm), which falls within standard PCB assembly tolerances and does not impact circuit board clearance or component placement. The outer shroud contact design of the AXT310124 provides enhanced mechanical retention compared to the center strip configuration of the AXK710127G.

Regulatory & Compliance Status: Both components are RoHS compliant with MSL rating of 1 (Unlimited), meeting current supply chain and environmental requirements. The AXT310124 carries active product status, ensuring long-term availability and manufacturing support.

Supply Chain Advantage: The AXT310124 maintains 27,400 units in current inventory compared to the 2,810 units available for the obsolete AXK710127G, providing superior supply security for production continuity.

Frequently Asked Questions (FAQ)

Q: Can the AXT310124 be used as a direct replacement for the AXK710127G on existing PCBs?

A: Yes. Both components share identical position count, pitch, row configuration, and mated stacking height. The 0.002" (0.05mm) difference in height above board is within standard assembly tolerances and does not affect PCB layout or clearance requirements.

Q: What is the functional difference between center strip and outer shroud contact designs?

A: The AXK710127G uses center strip with outer edge contacts, while the AXT310124 uses outer shroud contacts. Both designs provide equivalent electrical performance and gold contact finish. The outer shroud design of the AXT310124 offers enhanced mechanical retention during mating operations.

Q: Are there any compliance or certification differences between these parts?

A: No. Both components are RoHS compliant with identical MSL ratings (1 - Unlimited), ECCN classification (EAR99), and HTSUS codes (8536.69.4040).

Q: Why should the AXT310124 be selected over the AXK710127G?

A: The AXK710127G is classified as obsolete, creating long-term supply risk. The AXT310124 is an active product with significantly higher inventory availability (27,400 units), ensuring production continuity and reducing component procurement risk.

Q: Are packaging options identical between these parts?

A: Both components are available in Cut Tape (CT) and Digi-Reel® packaging formats, providing equivalent handling and assembly compatibility.
