AXK6L30337G Equivalent & Substitute Parts

Part Overview

The AXK6L30337G is a 30-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The part operates within the P5KL series and is characterized by a 0.50mm pitch configuration with dual-row contact arrangement and board guide features.

Substiute Parts

AXK6L30337G

Panasonic Electric WorksIn Stock: 965AXK6L30337G Datasheet

Current PartRFQ

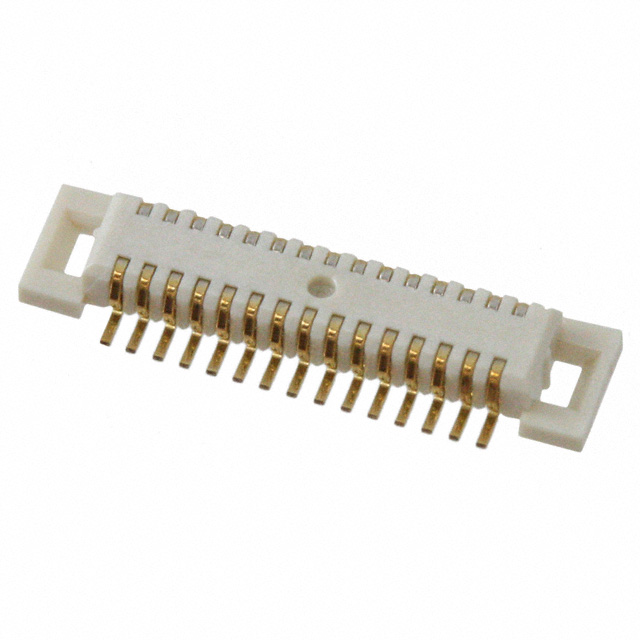

AXK6F30337YG

Panasonic Electric WorksIn Stock: 1283AXK6F30337YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXK6L30337G is determined by strict alignment of the following critical parameters:

• Number of Positions: 30
• Pitch: 0.020" (0.50mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Connector Type: Header, Center Strip Contacts
• Contact Finish: Gold
• Features: Board Guide
• Moisture Sensitivity Level: 1 (Unlimited)

The AXK6F30337YG qualifies as a substitute part because it maintains identical values across all critical electrical and mechanical parameters. Both parts share the same contact configuration, pitch spacing, row arrangement, and surface mount methodology. The primary distinction lies in product status classification and packaging format, with the substitute part classified as active and supplied in Tape & Reel packaging.

Parameter Comparison

Engineering Selection Recommendations

The AXK6F30337YG is the designated substitute for the obsolete AXK6L30337G based on functional equivalence across all critical connector parameters. The substitute part maintains identical electrical and mechanical specifications for position count, pitch, row configuration, and contact characteristics. Both parts are classified under MSL 1 (Unlimited), indicating equivalent moisture handling requirements.

The primary advantage of selecting the AXK6F30337YG is its active product status, ensuring continued availability and manufacturing support. The substitute part is supplied in Tape & Reel packaging, which is standard for production environments. The dimensional differences in mated stacking heights (1.5mm, 2mm versus 1.2mm) and height above board (0.049" versus 0.037") must be evaluated within the context of specific application requirements and PCB layout constraints.

Frequently Asked Questions (FAQ)

Q: Can the AXK6F30337YG be used as a direct replacement for the AXK6L30337G?

A: Yes. Both parts share identical contact position count (30), pitch spacing (0.50mm), row configuration (2), mounting methodology (surface mount), connector type (header with center strip contacts), and contact finish (gold). The electrical and mechanical interface characteristics are equivalent.

Q: What are the differences between these two parts?

A: The primary differences are product status and packaging. The AXK6L30337G is obsolete and supplied in bulk packaging, while the AXK6F30337YG is active and supplied in Tape & Reel format. Additionally, the substitute part offers variable mated stacking heights (1.5mm or 2mm) compared to the fixed 1.2mm of the main part, and a slightly greater height above board (0.049" versus 0.037").

Q: Are there any compliance or certification differences?

A: Both parts share identical Moisture Sensitivity Level classification (MSL 1 - Unlimited). The substitute part carries RoHS Compliant status. Both parts are classified under ECCN EAR99 and HTSUS 8536.69.4040.

Q: Does the height difference affect compatibility?

A: The dimensional differences in stacking height and board height must be evaluated against specific application requirements. The substitute part's increased height above board (0.049" versus 0.037") may impact clearance in space-constrained applications. PCB layout and mating component positioning should be verified during design integration.

Q: What packaging considerations apply to the substitute part?

A: The AXK6F30337YG is supplied in Tape & Reel (TR) packaging, which is standard for automated assembly processes. This differs from the bulk packaging of the obsolete part and may require adjustment to procurement and handling procedures.
