AXK570147YG Equivalent & Substitute Parts

Part Overview

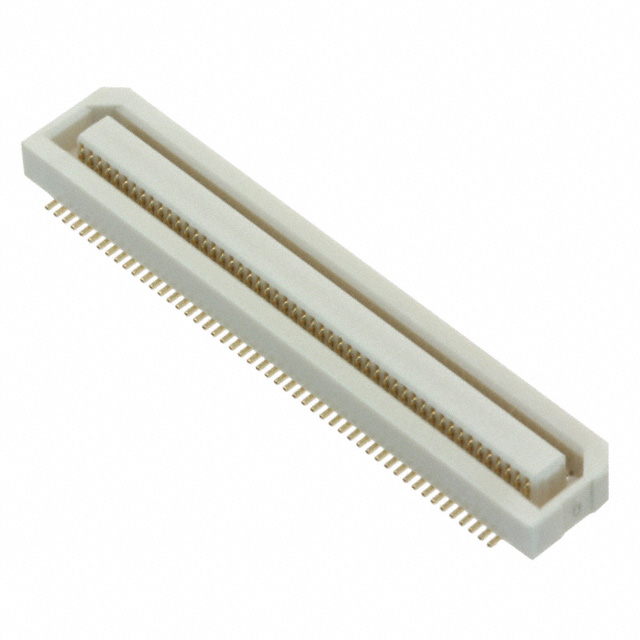

The AXK570147YG is a 70-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This connector is classified as Active product status and is RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align with application requirements, enabling component procurement flexibility while maintaining circuit performance and reliability standards.

Substiute Parts

AXK570147YG

Panasonic Electric WorksIn Stock: 1274AXK570147YG Datasheet

Current PartRFQ

AXK5S70047YG

Panasonic Electric WorksIn Stock: 1949AXK5S70047YG Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXK570147YG is determined by the following critical parameters:

• Connector Type: Socket, Center Strip Contacts (must match)
• Number of Positions: 70 (must match)
• Pitch: 0.020" (0.50mm) (must match)
• Number of Rows: 2 (must match)
• Mounting Type: Surface Mount (must match)
• Contact Finish: Gold (must match)
• RoHS Status: RoHS Compliant (must match)
• Moisture Sensitivity Level: 1 (Unlimited) (must match)

The substitute part AXK5S70047YG meets all critical electrical and mechanical parameters. Variations in mated stacking heights and height above board are permissible when application PCB layout and mating component specifications accommodate the dimensional differences.

Parameter Comparison

Engineering Selection Recommendations

Both AXK570147YG and AXK5S70047YG are Active product status components manufactured by Panasonic Electric Works with identical RoHS compliance and MSL ratings. Selection between these parts is determined by application-specific dimensional requirements. The AXK570147YG provides a lower profile with 0.085" (2.16mm) height above board and supports mated stacking heights of 3mm and 4.6mm. The AXK5S70047YG offers increased height above board at 0.120" (3.05mm) with mated stacking height options of 4mm, 5mm, and 6mm. Both parts maintain equivalent electrical performance and regulatory compliance. Component selection must align with PCB layout constraints and mating connector specifications.

Frequently Asked Questions (FAQ)

Q: Can AXK5S70047YG replace AXK570147YG in existing designs?

A: Substitution is permissible only when PCB layout and mating component specifications accommodate the dimensional differences. The AXK5S70047YG has a higher profile (0.120" versus 0.085" above board) and different mated stacking height options (4mm, 5mm, 6mm versus 3mm, 4.6mm). Verify clearance and mating component compatibility before implementation.

Q: Are the electrical characteristics identical between these parts?

A: Both parts share identical connector type, position count, pitch, row configuration, mounting type, contact finish, and compliance ratings. Electrical performance is equivalent for applications within the specified parameters.

Q: What is the significance of the series designation change from P5K to P5KS?

A: The series designation reflects the product line classification. Both P5K and P5KS series maintain the same core electrical and mechanical specifications for this 70-position configuration, with dimensional variations accommodated by design.

Q: Are both parts suitable for high-reliability applications?

A: Both parts are RoHS compliant with MSL 1 (Unlimited) rating, indicating suitability for standard industrial and commercial applications. Compliance certifications are equivalent between the two parts.

Q: What packaging format is available for these connectors?

A: Both AXK570147YG and AXK5S70047YG are supplied in Tape & Reel (TR) packaging format for automated assembly processes.
