AXH005A0X Equivalent & Substitute Parts Reference

Part Overview

The OmniOn Power AXH005A0X is a Non-Isolated Point-of-Load (PoL) DC-DC Converter designed for ITE (Commercial) applications. It provides a single output voltage range of 0.8V to 3.6V at up to 5A, operating from a 3V to 5.5V input and offering features such as remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). This product is classified as obsolete, necessitating the identification of qualified substitute components to maintain design continuity and supply chain integrity.

Substiute Parts

AXH005A0X

OmniOn PowerIn Stock: 1394AXH005A0X Datasheet

Current PartRFQ

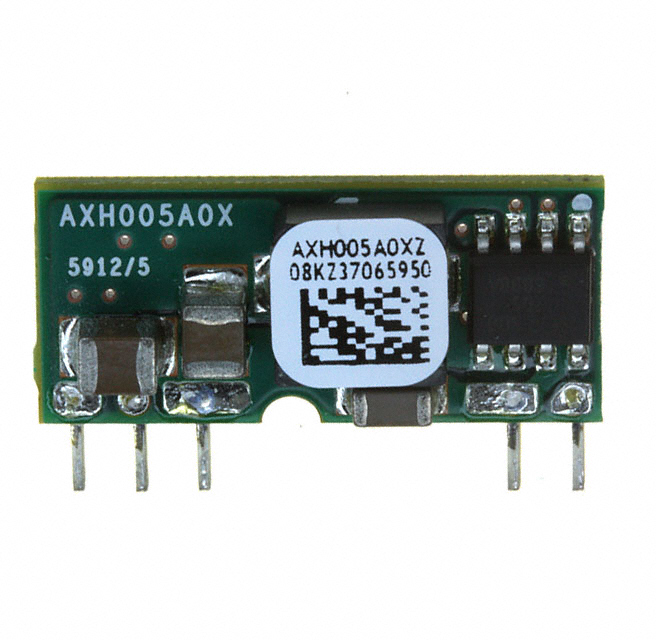

AXH005A0XZ

OmniOn PowerIn Stock: 3890AXH005A0XZ Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of DC-DC converters in the Non-Isolated PoL Module category is determined by matching key parameters: input voltage range, output voltage range, maximum output current, power rating, efficiency, operating temperature, mounting type, package dimensions, protection and control features, and application area. Substitute parts are included when all corresponding parameters meet or exceed those of the original AXH005A0X. Only parts with equivalent electrical and mechanical specifications and compliance characteristics are considered as valid substitutes.

Parameter Comparison

Engineering Selection Recommendations

The AXH005A0X is listed as obsolete. The AXH005A0XZ matches all provided key electrical and mechanical parameters, including voltage and current ratings, power, efficiency, features, operating temperature range, mounting, and package size. The substitute part also maintains the same compliance and certification characteristics, with RoHS compliance specified in the substitute's description. The AXH005A0XZ is suitable as a direct substitution for the AXH005A0X based solely on status, compliance, and provided certifications.

Frequently Asked Questions (FAQ)

Q1: How are substitute DC-DC converters selected for the AXH005A0X?
Substitutes are identified based on a complete match of input voltage range, output voltage range, output current, power rating, efficiency, operating temperature, package type and size, application area, and protection/control features.

Q2: Is there any difference in mounting or mechanical footprint between AXH005A0X and AXH005A0XZ?
No, both parts use a 5-SIP Module, through hole mounting, and have identical physical dimensions.

Q3: Are there any changes in electrical performance or features when substituting AXH005A0X with AXH005A0XZ?
There are no differences in all compared electrical parameters and features as provided for these models.

Q4: Are compliance and certification specifications maintained with the substitute?
Yes, the substitute AXH005A0XZ maintains the same ECCN and HTSUS classifications with an added RoHS compliance status.

Q5: Is it necessary to adjust PCB footprint or mechanical design when switching to AXH005A0XZ?
No modifications are necessary since package dimensions and mounting type are identical.
