AXG834044A Equivalent & Substitute Parts

Part Overview

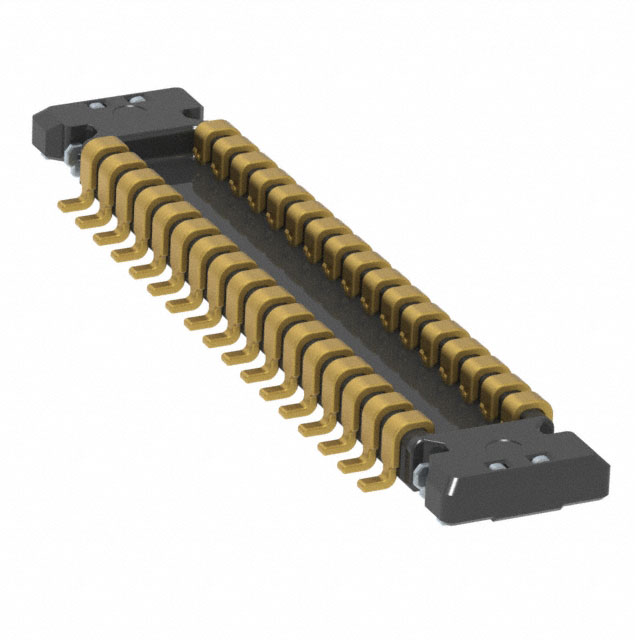

The AXG834044A is a 34-position rectangular connector plug manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, making identification of suitable alternatives essential for ongoing production and maintenance applications. The part features solder retention and is fully RoHS compliant with MSL 1 rating, indicating unlimited moisture sensitivity protection.

Substiute Parts

AXG834044A

Panasonic Electric WorksIn Stock: 1203AXG834044A Datasheet

Current PartRFQ

AXF6D3412

Panasonic Electric WorksIn Stock: 933AXF6D3412 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG834044A is determined by the following critical parameters:

• Position Count & Pitch: 34 positions at 0.014" (0.35mm) pitch
• Row Configuration: 2-row arrangement
• Mounting Technology: Surface mount compatibility
• Contact System: Outer shroud contacts with gold finish
• Mechanical Interface: Mated stacking height of 0.6mm and height above board of 0.018" (0.46mm)
• Compliance Requirements: RoHS compliance and MSL 1 rating

The substitute part AXF6D3412 maintains electrical and mechanical compatibility across all these parameters. The primary distinction is the connector type (header versus plug) and packaging format (tape & reel versus strip), which do not affect the core substitution relationship for applications requiring mating with the AXG834044A plug configuration.

Parameter Comparison

Engineering Selection Recommendations

The AXF6D3412 serves as a functional substitute for the obsolete AXG834044A based on electrical and mechanical parameter alignment. Both components share identical position counts, pitch specifications, mounting technology, contact finish, and mechanical stacking dimensions. The substitute maintains full RoHS compliance and MSL 1 rating, ensuring equivalent environmental performance.

The primary consideration for selection is the connector type difference: AXG834044A is a plug configuration while AXF6D3412 is a header configuration. This distinction requires evaluation of the mating interface requirements in the target application. Both components are manufactured by Panasonic Electric Works within the A35 series family, confirming design compatibility.

The active product status of AXF6D3412 provides supply chain continuity and ongoing manufacturer support, addressing the obsolescence constraint of the original part number.

Frequently Asked Questions (FAQ)

Q: Can AXF6D3412 directly replace AXG834044A in existing designs?

A: Direct replacement depends on the mating connector type in your application. AXG834044A is a plug; AXF6D3412 is a header. If your design uses a header receptacle, AXF6D3412 is compatible. If your design uses a plug receptacle, a different substitute configuration is required.

Q: Are the electrical specifications identical between these parts?

A: Yes. Both components share 34 positions, 0.014" (0.35mm) pitch, 2-row configuration, gold contact finish, and identical mated stacking heights. Electrical performance is equivalent.

Q: What is the significance of the packaging difference (Strip vs. Tape & Reel)?

A: Packaging format affects procurement and assembly processes. Strip packaging is suitable for manual handling and lower-volume applications. Tape & Reel packaging is optimized for automated pick-and-place assembly. The functional component specifications remain unchanged.

Q: Are both parts RoHS compliant?

A: Yes. Both AXG834044A and AXF6D3412 are RoHS compliant with MSL 1 rating, meeting equivalent environmental and moisture sensitivity requirements.

Q: Why is AXG834044A classified as obsolete?

A: Obsolescence status indicates the manufacturer has discontinued production. AXF6D3412, with active product status, represents the current manufacturing alternative within the Panasonic A35 series family.
