AXG830044 Equivalent & Substitute Parts

Part Overview

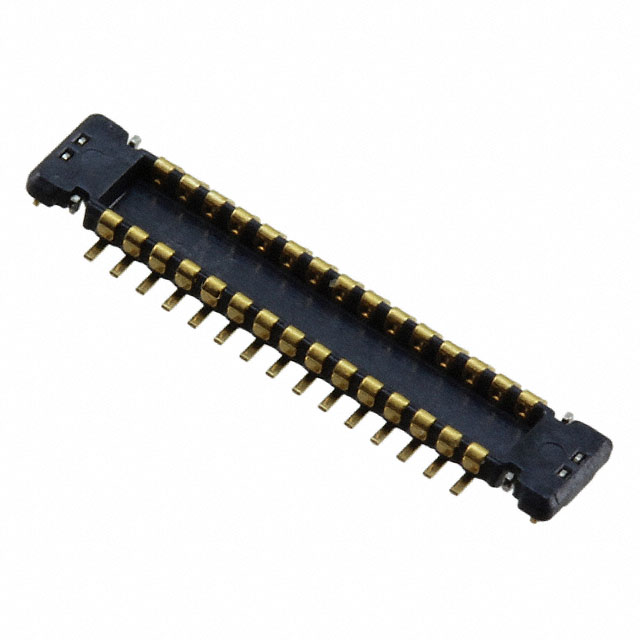

The AXG830044 is a 30-position rectangular connector plug manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing production support and design continuity. The part operates within the A35US series and maintains full RoHS compliance with MSL 1 rating, indicating unlimited moisture sensitivity tolerance.

Substiute Parts

AXG830044

Panasonic Electric WorksIn Stock: 888AXG830044 Datasheet

Current PartRFQ

AXF6D3012

Panasonic Electric WorksIn Stock: 934AXF6D3012 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG830044 is determined by strict alignment across the following critical parameters:

• Connector Position Count: 30 positions (fixed requirement)
• Contact Pitch: 0.014" (0.35mm) (fixed requirement)
• Row Configuration: 2 rows (fixed requirement)
• Mounting Technology: Surface Mount (fixed requirement)
• Contact Finish: Gold plating (fixed requirement)
• Mated Stacking Height: 0.6mm (fixed requirement)
• Height Above Board: 0.018" (0.46mm) (fixed requirement)
• Compliance Standards: RoHS Compliant, MSL 1 (fixed requirement)

The substitute part AXF6D3012 meets all these criteria. The primary functional difference is the connector type designation: AXG830044 is a plug configuration with outer shroud contacts, while AXF6D3012 is a header configuration with outer shroud contacts. Both components share identical electrical and mechanical specifications, enabling direct functional substitution in mating pair applications.

Parameter Comparison

Engineering Selection Recommendations

The AXF6D3012 serves as the functional equivalent for the obsolete AXG830044. Selection between these components depends on connector role requirements within the mating pair assembly:

• AXG830044 (Plug Configuration): Use when the connector role requires a plug-type interface. This part is obsolete; existing inventory may be available through authorized distributors.

• AXF6D3012 (Header Configuration): Use when the connector role requires a header-type interface. This part maintains active product status with Panasonic Electric Works, ensuring ongoing availability and manufacturing support.

Both components maintain identical electrical performance, mechanical dimensions, and compliance certifications. The choice between plug and header configurations is determined by PCB layout and mating interface design requirements, not by electrical or thermal performance differences.

Frequently Asked Questions (FAQ)

Q: Can AXF6D3012 directly replace AXG830044 in existing designs?

A: Direct replacement depends on connector role assignment. If the design calls for a plug-type connector, AXG830044 is the specified component. If a header-type connector is required, AXF6D3012 is the appropriate selection. Both components are mechanically and electrically compatible when used in their respective roles within a mating pair.

Q: What is the difference between plug and header connector types?

A: Plug connectors are typically mounted on cables or flexible substrates and mate with header connectors mounted on PCBs. Header connectors are typically mounted directly on PCBs. The AXG830044 is a plug; the AXF6D3012 is a header. Selection depends on your assembly configuration.

Q: Are there packaging differences between these parts?

A: AXG830044 packaging information is not specified in available data. AXF6D3012 is supplied in Tape & Reel (TR) format. Confirm packaging requirements with your procurement specifications.

Q: Do both parts meet the same compliance standards?

A: Yes. Both AXG830044 and AXF6D3012 are RoHS Compliant with MSL 1 rating, ECCN EAR99 classification, and HTSUS code 8536.69.4040.

Q: Why is AXG830044 listed as obsolete?

A: Obsolete status indicates the manufacturer has discontinued active production. AXF6D3012 remains in active production status, providing a path forward for new designs or production continuity.
