AXG8240J4 Equivalent & Substitute Parts

Part Overview

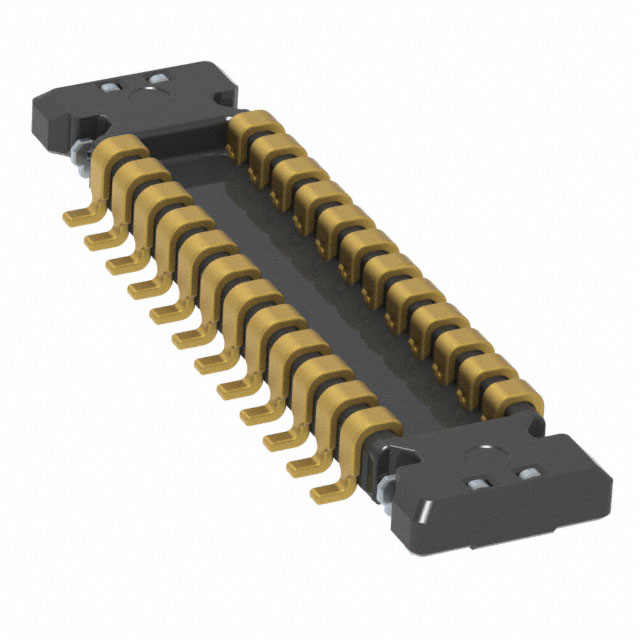

The AXG8240J4 is a 26-position rectangular connector plug manufactured by Panasonic Electric Works, featuring outer shroud contacts with surface mount gold plating. This component is classified as obsolete, making identification of suitable substitutes essential for ongoing design support and production continuity. The connector is designed for applications requiring reliable SMD connectivity with solder retention and dual-row configuration.

Substiute Parts

AXG8240J4

Panasonic Electric WorksIn Stock: 10046AXG8240J4 Datasheet

Current PartRFQ

AXF6D2412

Panasonic Electric WorksIn Stock: 987AXF6D2412 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG8240J4 is determined by the following critical parameters:

• Pitch (0.014" / 0.35mm): Establishes mechanical and electrical spacing compatibility
• Mounting Type (Surface Mount): Ensures PCB assembly process compatibility
• Contact Finish (Gold): Maintains electrical performance and corrosion resistance
• Mated Stacking Height (0.6mm): Defines mating interface clearance requirements
• Height Above Board (0.018" / 0.46mm): Constrains available board space
• RoHS Compliance: Ensures regulatory alignment for target markets
• Moisture Sensitivity Level (1): Confirms handling and storage requirements

The substitute part AXF6D2412 shares these core parameters with the main part. However, the connector type differs: AXF6D2412 is a header configuration versus the plug configuration of AXG8240J4. Additionally, AXF6D2412 specifies 24 positions versus the 26 positions of the main part. These differences require careful evaluation during component selection.

Parameter Comparison

Engineering Selection Recommendations

The AXG8240J4 is obsolete, necessitating component substitution for new production or design revisions. The AXF6D2412 maintains active product status with Panasonic Electric Works, ensuring ongoing availability and manufacturing support.

Both parts share identical pitch, mounting type, contact finish, stacking heights, and compliance certifications. The primary differences are connector type (plug versus header) and position count (26 versus 24). These differences require design-level evaluation to determine compatibility with existing mating interfaces and circuit requirements.

The AXF6D2412 is available in Tape & Reel packaging, supporting automated assembly processes. Both parts maintain RoHS compliance and MSL 1 classification, confirming suitability for standard manufacturing environments.

Frequently Asked Questions (FAQ)

Q: Can AXF6D2412 directly replace AXG8240J4 in existing designs?

A: Direct replacement requires verification of two factors: (1) the mating interface must accommodate a header configuration instead of a plug, and (2) the circuit design must function with 24 positions instead of 26. Mechanical and electrical compatibility cannot be assumed without design review.

Q: What is the significance of the connector type difference (plug versus header)?

A: Plug and header connectors are complementary mating halves. A plug connects to a receptacle or header. Substituting a header for a plug requires corresponding changes to the mating connector on the circuit board or cable assembly.

Q: Why does AXF6D2412 have 24 positions while AXG8240J4 has 26?

A: The AXG8240J4 includes 24 signal positions plus 2 dedicated power positions. The AXF6D2412 specifies 24 total positions. The functional difference in power distribution architecture must be evaluated during substitution analysis.

Q: Are the pitch and stacking height specifications identical?

A: Yes. Both parts maintain 0.014" (0.35mm) pitch, 0.6mm mated stacking height, and 0.018" (0.46mm) height above board. These mechanical parameters are compatible.

Q: What packaging considerations apply to AXF6D2412?

A: AXF6D2412 is supplied in Tape & Reel (TR) packaging, optimized for automated pick-and-place assembly. The AXG8240J4 packaging specification is not provided in available data.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity classification, confirming equivalent regulatory and environmental handling requirements.
