AXG8200J4 Equivalent & Substitute Parts

Part Overview

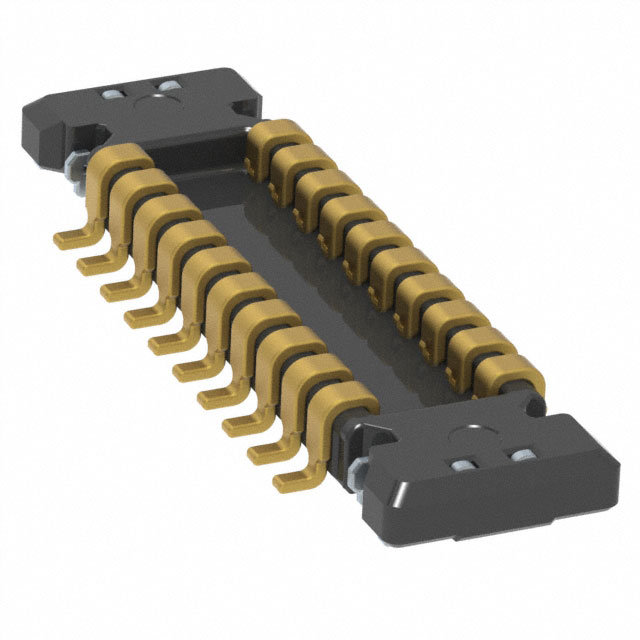

The AXG8200J4 is a 22-position rectangular connector plug manufactured by Panasonic Electric Works, featuring outer shroud contacts and surface mount gold plating. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and production continuity. The part operates within the A35US series and maintains full RoHS compliance with MSL Level 1 rating.

Substiute Parts

AXG8200J4

Panasonic Electric WorksIn Stock: 793AXG8200J4 Datasheet

Current PartRFQ

AXF6D2012

Panasonic Electric WorksIn Stock: 666AXF6D2012 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG8200J4 is determined by alignment across the following critical parameters:

• Pitch and Row Configuration: 0.014" (0.35mm) pitch with 2-row arrangement
• Mounting Technology: Surface mount assembly compatibility
• Contact System: Gold-plated outer shroud contacts
• Mated Interface Dimensions: 0.6mm stacking height and 0.018" (0.46mm) height above board
• Compliance Profile: RoHS compliance and MSL Level 1 rating
• Series Compatibility: A35 series connector family

The AXF6D2012 qualifies as a functional substitute based on these parameters. However, the substitute operates as a header configuration rather than a plug, requiring consideration of mating topology in system design.

Parameter Comparison

Engineering Selection Recommendations

The AXF6D2012 is an active product with current manufacturing support, providing supply chain continuity for applications requiring 0.35mm pitch, 2-row surface mount rectangular connectors with gold-plated outer shroud contacts. Both components maintain identical compliance certifications and environmental ratings.

Selection between these parts depends on connector topology requirements. The AXG8200J4 functions as a plug interface, while the AXF6D2012 operates as a header. System designs must accommodate this functional difference in mating connector architecture. The AXF6D2012 also operates with 20 positions rather than the 22-position configuration of the main part, requiring circuit design adjustment if all 22 positions are actively utilized.

Frequently Asked Questions (FAQ)

Q: Can the AXF6D2012 directly replace the AXG8200J4 in existing assemblies?

A: Direct replacement requires verification of mating connector compatibility. The AXF6D2012 is a header configuration, while the AXG8200J4 is a plug. Existing mating connectors designed for plug interfaces will not mate with a header substitute without redesign of the mating connector assembly.

Q: What is the position count difference between these parts?

A: The AXG8200J4 provides 22 positions (20 signal + 2 power), while the AXF6D2012 provides 20 positions. Applications utilizing all 22 positions require circuit redesign to operate with the 20-position substitute.

Q: Are the pitch and row configurations identical?

A: Both parts operate at 0.014" (0.35mm) pitch with 2-row configuration, ensuring mechanical and electrical alignment compatibility at the contact interface level.

Q: Do both parts meet the same environmental and compliance standards?

A: Both components are RoHS compliant with MSL Level 1 rating, supporting unlimited moisture exposure without baking requirements.

Q: What packaging formats are available?

A: The AXG8200J4 is supplied in bulk packaging. The AXF6D2012 is available in Tape & Reel (TR) format, suitable for automated assembly processes.
