AXG812044 Equivalent & Substitute Parts

Part Overview

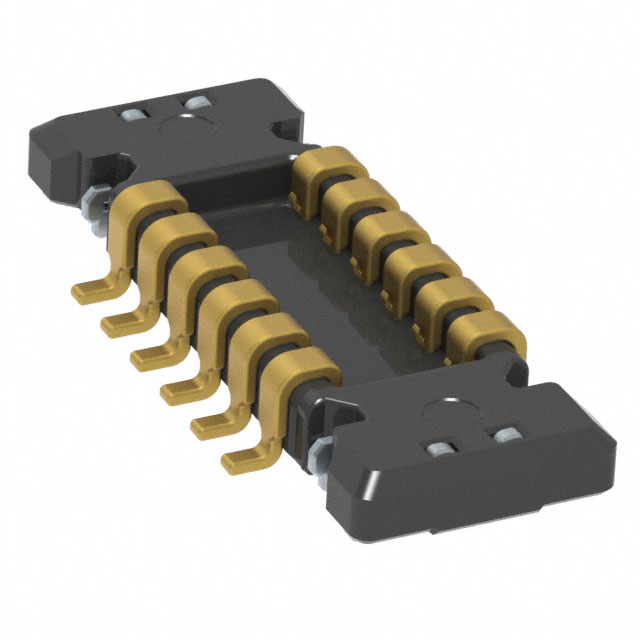

The AXG812044 is a 12-position rectangular connector plug manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold-plated terminals. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing production support and design continuity. The part operates within the A35US series and maintains full RoHS compliance with MSL 1 rating, indicating no moisture sensitivity constraints during storage and handling.

Substiute Parts

AXG812044

Panasonic Electric WorksIn Stock: 762AXG812044 Datasheet

Current PartRFQ

AXF6D1212

Panasonic Electric WorksIn Stock: 1028AXF6D1212 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG812044 is determined by strict alignment across the following critical parameters:

• Connector Type Configuration: Both plug and header variants within the A35 series maintain compatible outer shroud contact geometry and mating interfaces
• Electrical Specifications: 12-position count, 0.35mm pitch, and 2-row arrangement must remain constant
• Physical Dimensions: Mated stacking height of 0.6mm and height above board of 0.018" (0.46mm) ensure PCB layout compatibility
• Surface Treatment: Gold contact finish maintains electrical performance and corrosion resistance equivalence
• Manufacturing Standards: RoHS compliance and MSL 1 rating must be preserved
• Mounting Technology: Surface mount configuration with solder retention feature must be maintained

The AXF6D1212 qualifies as a direct functional substitute based on these parameters, with the primary distinction being connector type (header versus plug) and active product status, which supports long-term availability.

Parameter Comparison

Engineering Selection Recommendations

The AXF6D1212 serves as the primary equivalent for the obsolete AXG812044. Selection between these components depends on connector interface requirements within the assembly:

For Plug Interface Requirements: The AXG812044 remains the specified component when the design mandates a plug-type connector. Existing inventory of 750 pieces supports near-term production needs.

For Header Interface Requirements or Long-Term Availability: The AXF6D1212 is the recommended selection. This component maintains active product status with Panasonic Electric Works, ensuring sustained supply chain access. The 948-piece inventory provides immediate availability. Packaging in Tape & Reel format supports automated assembly processes.

Both components satisfy identical electrical and mechanical parameters across all critical dimensions, pitch specifications, and contact configurations. RoHS compliance and MSL 1 ratings are equivalent, eliminating compliance-related substitution barriers. The decision between plug and header types is determined solely by the mating connector interface specified in the system design.
