AXG7600J7 Equivalent & Substitute Parts

Part Overview

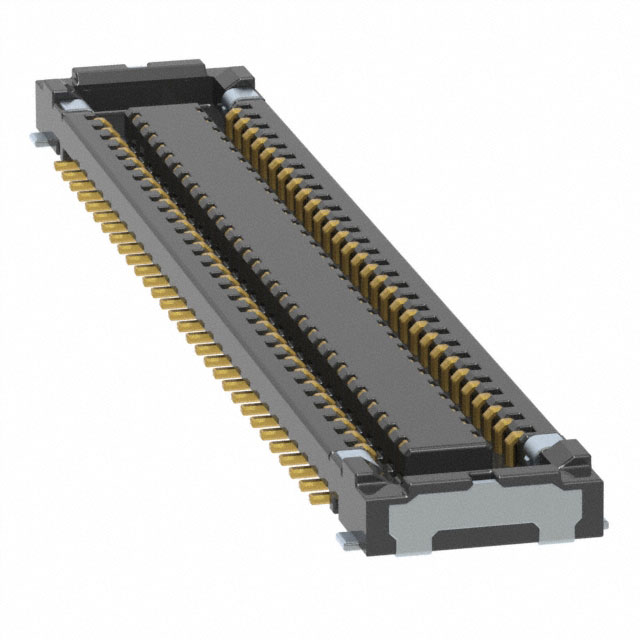

The AXG7600J7 is a 62-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The connector features solder retention and operates within MSL 1 (unlimited moisture sensitivity), indicating robust environmental stability for standard industrial and commercial use.

Substiute Parts

AXG7600J7

Panasonic Electric WorksIn Stock: 1207AXG7600J7 Datasheet

Current PartRFQ

AXF5D6012

Panasonic Electric WorksIn Stock: 893AXF5D6012 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the AXG7600J7 is based on the following critical parameters that determine functional and mechanical compatibility:

• Pitch (0.014" / 0.35mm): Determines contact spacing and PCB layout compatibility
• Mounting Type (Surface Mount): Ensures compatibility with existing assembly processes
• Contact Finish (Gold): Maintains electrical performance and corrosion resistance
• Number of Rows (2): Defines physical footprint and connector geometry
• Mated Stacking Height (0.6mm): Ensures proper mating depth and mechanical fit
• RoHS Compliance: Meets regulatory requirements for lead-free manufacturing
• MSL Rating (1): Confirms environmental stability for storage and handling

The substitute part AXF5D6012 shares these core parameters with the main part. The primary difference is the position count: AXF5D6012 provides 60 positions (versus 62 in the main part), representing a reduction of 2 power positions. This substitution is valid when the application does not require the additional power contacts or when circuit design can accommodate the reduced position count.

Parameter Comparison

Engineering Selection Recommendations

The AXG7600J7 is classified as obsolete, necessitating transition to active product alternatives. The AXF5D6012 is an active product from the same manufacturer within the A35 connector family, offering equivalent electrical and mechanical performance across all critical parameters including pitch, mounting type, contact finish, and environmental ratings.

Selection of AXF5D6012 as a substitute is appropriate when circuit design accommodates the 60-position configuration. Both parts maintain RoHS compliance and MSL 1 rating, ensuring regulatory conformance and environmental stability. The identical pitch, stacking height, and mounting characteristics ensure direct PCB layout compatibility without redesign.

Frequently Asked Questions (FAQ)

Q: Can AXF5D6012 directly replace AXG7600J7 in existing designs?

A: Direct replacement is possible if the application does not require the 2 additional power positions present in the AXG7600J7. The 60-position AXF5D6012 maintains identical pitch, mounting type, contact finish, and environmental ratings. Circuit design review is necessary to confirm that power distribution requirements can be met with the reduced position count.

Q: What is the difference between Socket and Receptacle connector types?

A: Socket connectors receive mating pins, while Receptacle connectors accept mating sockets. The AXG7600J7 is a socket type, and AXF5D6012 is a receptacle type. These are complementary connector halves designed to mate with corresponding plug or socket partners. Selection depends on the mating connector type in the application.

Q: Are the pitch and stacking height specifications identical?

A: Yes. Both parts operate at 0.014" (0.35mm) pitch and 0.6mm mated stacking height. These parameters are critical for PCB layout compatibility and ensure that existing footprints and mating connectors remain compatible.

Q: What does MSL 1 (Unlimited) rating indicate?

A: MSL 1 indicates the component has unlimited shelf life and does not require moisture bake-out procedures prior to soldering. This rating confirms robust environmental stability suitable for standard storage and handling conditions.

Q: Are both parts RoHS compliant?

A: Yes. Both AXG7600J7 and AXF5D6012 are RoHS compliant, meeting regulatory requirements for lead-free manufacturing and hazardous substance restrictions.
