AXG7500J7 Equivalent & Substitute Parts

Part Overview

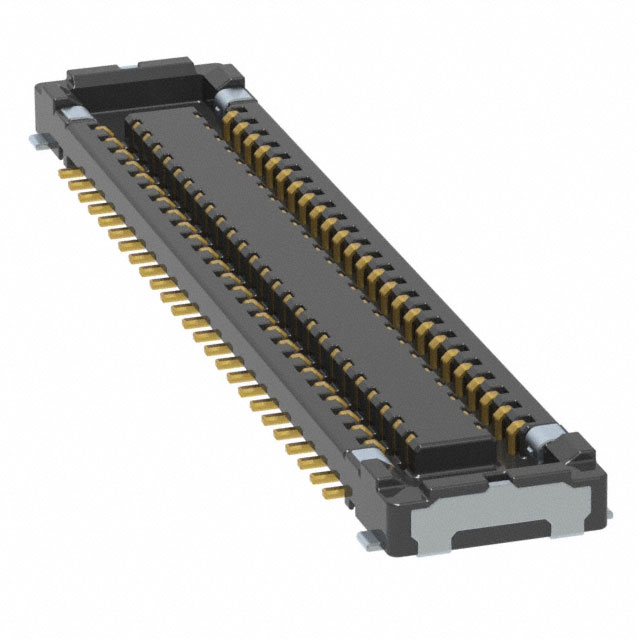

The AXG7500J7 is a 52-position rectangular connector socket manufactured by Panasonic Electric Works, featuring center strip contacts with surface mount gold plating. This component is classified as obsolete, making identification of suitable substitutes essential for ongoing production and maintenance applications. The connector accommodates 50 signal positions plus 2 dedicated power positions with a 0.35mm pitch and 2-row configuration.

Substiute Parts

AXG7500J7

Panasonic Electric WorksIn Stock: 976AXG7500J7 Datasheet

Current PartRFQ

AXF5D5012

Panasonic Electric WorksIn Stock: 880AXF5D5012 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG7500J7 is determined by the following critical parameters:

• Pitch and Row Configuration: 0.014" (0.35mm) pitch with 2-row layout
• Mounting Technology: Surface mount capability
• Contact Finish: Gold plating for signal integrity
• Connector Interface: Center strip contact design
• Compliance Standards: RoHS compliance and MSL rating

The substitute part AXF5D5012 shares the core electrical and mechanical characteristics required for functional compatibility. However, a key distinction exists in position count: the substitute accommodates 50 positions versus the original 52 positions (50 + 2 power). This difference must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

The AXF5D5012 is an active product from Panasonic Electric Works with current manufacturing support, addressing the obsolescence status of the AXG7500J7. Both components maintain identical RoHS compliance and MSL ratings, ensuring regulatory alignment.

The primary consideration for selection is the position count differential. The AXG7500J7 provides 52 positions with dedicated power contacts, while the AXF5D5012 provides 50 positions. Applications requiring the full 52-position configuration with segregated power contacts must evaluate whether the 50-position receptacle accommodates the signal and power distribution requirements of the target assembly.

Both connectors share identical pitch, row configuration, mounting technology, contact finish, and stacking characteristics, supporting mechanical and electrical interchangeability within the constraints of position count compatibility.

Frequently Asked Questions (FAQ)

Q: Can the AXF5D5012 directly replace the AXG7500J7 in existing designs?

A: Direct replacement depends on application requirements. Both connectors share identical pitch (0.35mm), row configuration (2), mounting type (surface mount), contact finish (gold), and stacking heights. The AXF5D5012 provides 50 positions versus the AXG7500J7's 52 positions. If the design uses all 52 positions including dedicated power contacts, the substitute may not be suitable without circuit redesign.

Q: What is the difference between socket and receptacle connector types?

A: The AXG7500J7 is classified as a socket (female connector), while the AXF5D5012 is classified as a receptacle. Both are female-type connectors designed to accept male pins. The functional distinction relates to internal contact geometry and mating interface design specific to their respective series (A35US versus A35UH).

Q: Are both connectors RoHS compliant?

A: Yes. Both the AXG7500J7 and AXF5D5012 are RoHS compliant with MSL rating of 1 (unlimited moisture sensitivity level), meeting environmental and regulatory requirements for commercial and industrial applications.

Q: What packaging is available for the substitute part?

A: The AXF5D5012 is supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes. The original AXG7500J7 packaging specification was not provided in the available data.

Q: How do the pitch and row configurations compare?

A: Both connectors maintain identical specifications: 0.014" (0.35mm) pitch with 2-row configuration. This ensures mechanical compatibility at the connector interface level, provided position count requirements are satisfied.
