AXG730047 Equivalent & Substitute Parts

Part Overview

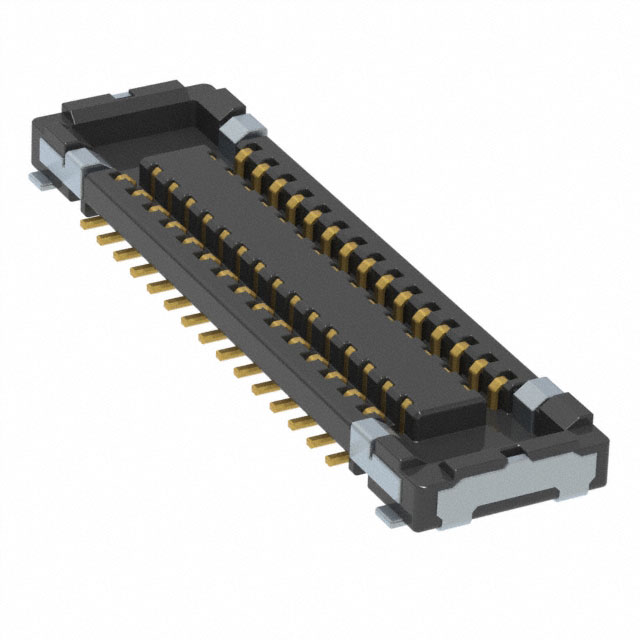

The AXG730047 is a 30-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The connector features solder retention and operates within MSL 1 (unlimited moisture sensitivity level), suitable for standard industrial and commercial environments.

Substiute Parts

AXG730047

Panasonic Electric WorksIn Stock: 1154AXG730047 Datasheet

Current PartRFQ

AXF5D3012

Panasonic Electric WorksIn Stock: 995AXF5D3012 Datasheet

SimilarRFQ

AXG130144

Panasonic Electric WorksIn Stock: 9612AXG130144 Datasheet

Parametric EquivalentRFQ

AXG730044

Panasonic Electric WorksIn Stock: 876AXG730044 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the AXG730047 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

• Connector Type: Socket, Center Strip Contacts (matching contact configuration)
• Number of Positions: 30 (identical pin count)
• Pitch: 0.014" (0.35mm) (identical contact spacing)
• Number of Rows: 2 (identical row configuration)
• Mounting Type: Surface Mount (identical assembly method)
• Contact Finish: Gold (identical surface treatment)
• Mated Stacking Heights: 0.6mm (identical mating profile)
• Height Above Board: 0.023" (0.59mm) (identical PCB clearance)
• RoHS Status: RoHS Compliant (regulatory alignment)
• Moisture Sensitivity Level: 1 (Unlimited) (identical environmental rating)

Two substitute parts meet these criteria: AXG130144 and AXG730044. An additional cross-type substitute, AXF5D3012, provides a receptacle configuration for mating applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Socket Configuration):

AXG130144 and AXG730044 are direct parametric equivalents to the AXG730047. Both parts maintain identical electrical and mechanical specifications across all critical dimensions and contact characteristics. Both are classified as active products with current manufacturing support, ensuring long-term availability and supply chain stability. AXG730044 shares the same base product number (AXG730) and series designation (A35US) as the obsolete AXG730047, providing the closest form-factor compatibility. AXG130144 operates under a different series (S35) and base product number (AXG130) but maintains full parametric equivalence.

Cross-Type Substitute (Receptacle Configuration):

AXF5D3012 provides a receptacle connector configuration for mating applications where a socket connector is required on the opposite side of an interconnection. This part maintains identical pitch, position count, row configuration, mounting type, contact finish, stacking heights, and compliance certifications. Selection of AXF5D3012 is appropriate only when receptacle functionality is required for the mating interface.

All substitute parts are RoHS compliant and carry MSL 1 (unlimited) moisture sensitivity ratings, ensuring regulatory and environmental compatibility with the original specification.

Frequently Asked Questions (FAQ)

Q: Can AXG130144 directly replace AXG730047 in existing designs?

A: Yes. AXG130144 meets all parametric requirements for direct substitution, including 30-position socket configuration, 0.35mm pitch, surface mount assembly, gold contact finish, and identical mated stacking heights. The primary difference is the series designation (S35 versus A35US) and base product number, which do not affect electrical or mechanical compatibility.

Q: What is the difference between AXG730044 and AXG130144?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. AXG730044 maintains the same series (A35US) and base product number (AXG730) as the obsolete AXG730047, offering closer form-factor alignment. AXG130144 operates under a different series (S35) and base product number (AXG130). Selection between these two depends on design constraints related to series compatibility or PCB layout considerations.

Q: When should AXF5D3012 be used instead of AXG130144 or AXG730044?

A: AXF5D3012 is a receptacle connector, not a socket. Use this part only when the mating interface requires a receptacle configuration. For applications requiring socket connectors on both sides of an interconnection, select AXG130144 or AXG730044.

Q: Are all substitute parts available in the same packaging?

A: AXG130144 and AXG730044 are supplied in Tape & Reel (TR) packaging. The original AXG730047 packaging specification was not provided. Verify packaging requirements for your assembly process before finalizing part selection.

Q: Do all substitute parts carry the same compliance certifications?

A: Yes. All substitute parts are RoHS compliant and carry MSL 1 (unlimited) moisture sensitivity ratings, matching the original AXG730047 specification. ECCN and HTSUS classifications are identical across all parts.

Q: What is the inventory status of substitute parts?

A: AXG130144 has 9,542 pieces in stock, AXG730044 has 776 pieces in stock, and AXF5D3012 has 942 pieces in stock. All parts are classified as new original stock.
