AXG724047 Equivalent & Substitute Parts

Part Overview

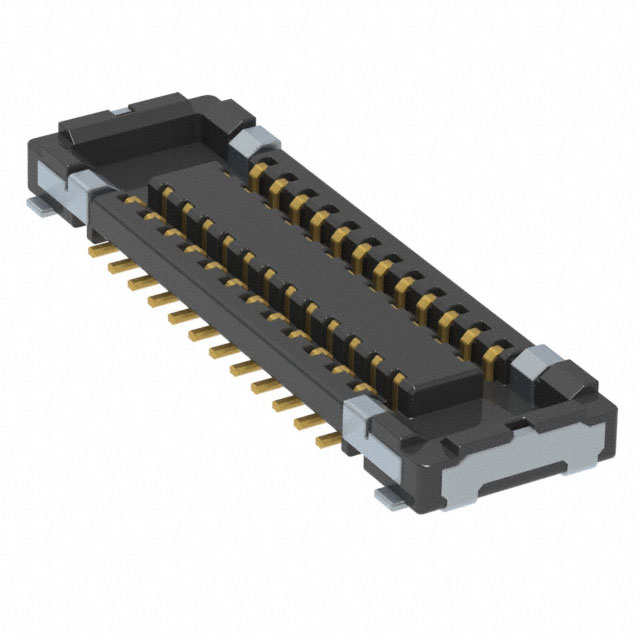

The AXG724047 is a 24-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector features solder retention and operates within MSL 1 (unlimited moisture sensitivity level), suitable for standard industrial and commercial environments.

Key Parameters

Parameter	Value
Manufacturer Part Number	AXG724047
Manufacturer	Panasonic Electric Works
Category	Rectangular Connectors
Number of Positions	24
Pitch	0.014" (0.35mm)
Number of Rows	2
Connector Type	Socket, Center Strip Contacts
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Height	0.6mm
Height Above Board	0.023" (0.59mm)
Features	Solder Retention
RoHS Status	RoHS Compliant
MSL Rating	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the AXG724047 is determined by strict equivalence across the following critical parameters:

24-position connector configuration
0.014" (0.35mm) pitch spacing
2-row arrangement
Surface mount technology
Gold contact finish
Solder retention feature
0.6mm mated stacking height
0.023" (0.59mm) height above board
RoHS compliance
MSL 1 rating

The substitute parts are grouped into two categories: direct socket equivalents (same connector type) and complementary receptacle options (mating connector type). All substitutes maintain identical electrical and mechanical specifications within the allowed parameters.

Parameter Comparison

Parameter	AXG724047	AXF5D2412	AXG124144	AXG724044
Manufacturer Part Number	AXG724047	AXF5D2412	AXG124144	AXG724044
Manufacturer	Panasonic Electric Works	Panasonic Electric Works	Panasonic Electric Works	Panasonic Electric Works
Series	A35US	A35UH	S35	A35US
Connector Type	Socket, Center Strip Contacts	Receptacle, Center Strip Contacts	Socket, Center Strip Contacts	Socket, Center Strip Contacts
Number of Positions	24	24	24	24
Pitch	0.014" (0.35mm)	0.014" (0.35mm)	0.014" (0.35mm)	0.014" (0.35mm)
Number of Rows	2	2	2	2
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Contact Finish	Gold	Gold	Gold	Gold
Mated Stacking Height	0.6mm	0.6mm	0.6mm	0.6mm
Height Above Board	0.023" (0.59mm)	0.023" (0.59mm)	0.023" (0.59mm)	0.023" (0.59mm)
Features	Solder Retention	Solder Retention	Solder Retention	Solder Retention
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active

Engineering Selection Recommendations

All three substitute parts maintain full parametric equivalence to the AXG724047 across electrical and mechanical specifications. Selection should be based on product status and application requirements:

AXG724044 is the primary substitute, sharing the identical A35US series designation and socket connector type as the obsolete AXG724047. This part is currently active with 1025 units in stock and provides direct form-fit-function replacement.

AXG124144 offers parametric equivalence within the S35 series, maintaining all critical connector specifications. This part is active with 2100 units in stock, providing the highest inventory availability.

AXF5D2412 is a receptacle variant (mating connector type) within the A35UH series. This part is active with 981 units in stock and is suitable for applications requiring the complementary connector interface.

All substitute parts are RoHS compliant and carry MSL 1 rating, matching the compliance profile of the original component.

Frequently Asked Questions (FAQ)

Q: Can AXF5D2412 be used as a direct replacement for AXG724047?

A: AXF5D2412 is a receptacle connector, while AXG724047 is a socket connector. Both maintain identical pitch, position count, and mounting specifications. Selection depends on whether your application requires a socket or receptacle interface. They are not interchangeable as direct replacements but are compatible mating pairs.

Q: What is the difference between AXG124144 and AXG724044?

A: Both are 24-position socket connectors with identical electrical and mechanical parameters. AXG124144 belongs to the S35 series, while AXG724044 belongs to the A35US series (same series as the obsolete AXG724047). Both are active products with full RoHS compliance and MSL 1 rating.

Q: Are all substitute parts available in the same packaging?

A: AXG724047 was supplied in standard packaging. AXG124144 and AXG724044 are available in Tape & Reel (TR) packaging. AXF5D2412 is also available in Tape & Reel (TR) packaging. Packaging format should be confirmed based on your assembly process requirements.

Q: Do all parts meet the same compliance standards?

A: Yes. All substitute parts are RoHS compliant with MSL 1 (unlimited) moisture sensitivity level, matching the compliance profile of AXG724047. All carry ECCN EAR99 and HTSUS 8536.69.4040 classifications.

Q: Which substitute has the best inventory availability?

A: AXG124144 has the highest inventory with 2100 units in stock, followed by AXG724044 with 1025 units, and AXF5D2412 with 981 units.
