AXG716047A Equivalent & Substitute Parts

Part Overview

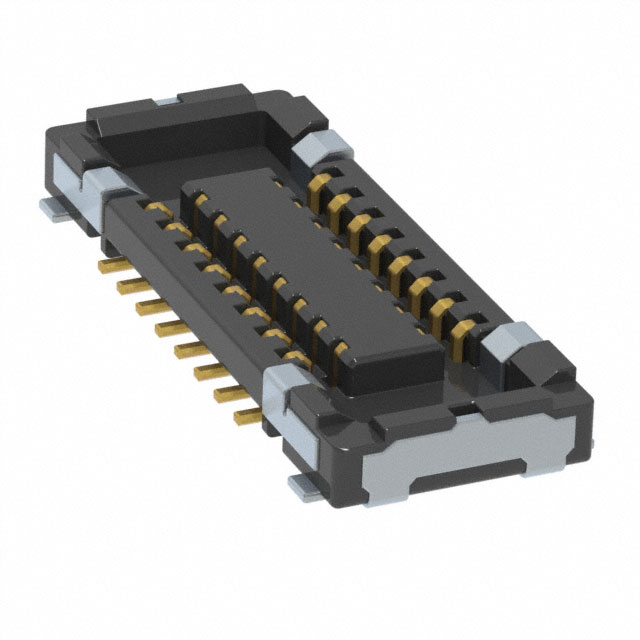

The AXG716047A is a 16-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector features solder retention and operates within unlimited moisture sensitivity parameters, suitable for standard industrial and commercial electronics assembly.

Substiute Parts

AXG716047A

Panasonic Electric WorksIn Stock: 773AXG716047A Datasheet

Current PartRFQ

AXF5D1612

Panasonic Electric WorksIn Stock: 1214AXF5D1612 Datasheet

SimilarRFQ

AXG116144A

Panasonic Electric WorksIn Stock: 1272AXG116144A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the AXG716047A is determined by strict alignment of the following electrical and mechanical parameters:

Critical Matching Parameters:

• Number of positions: 16
• Pitch: 0.014" (0.35mm)
• Number of rows: 2
• Mounting type: Surface Mount
• Contact finish: Gold
• Mated stacking height: 0.6mm
• Height above board: 0.023" (0.59mm)
• RoHS compliance status
• Moisture sensitivity level: 1 (Unlimited)

The substitute parts listed below maintain these specifications. Connector type variation (socket versus receptacle) is permitted where mating pairs are required for complete circuit assembly. All substitutes are manufactured by Panasonic Electric Works and carry equivalent electrical and mechanical performance characteristics within the rectangular connector category.

Parameter Comparison

Engineering Selection Recommendations

AXG116144A is a parametric equivalent substitute for the AXG716047A. Both components are socket-type connectors with identical electrical and mechanical specifications. The AXG116144A carries active product status with ROHS3 compliance, providing long-term availability and supply chain stability. This part is recommended for direct replacement in applications where socket connectors are required.

AXF5D1612 serves as a complementary substitute where receptacle-type connectors are required for mating pair applications. This part maintains all critical electrical and mechanical parameters while offering active product status and standard RoHS compliance. The tape and reel packaging format supports high-volume production environments.

Both substitute parts are manufactured by Panasonic Electric Works and comply with applicable environmental and regulatory standards. Selection between AXG116144A and AXF5D1612 depends on connector type requirements within the circuit assembly design.

Frequently Asked Questions (FAQ)

Q: Can AXG116144A directly replace AXG716047A in existing designs?

A: Yes. AXG116144A is a parametric equivalent with identical pitch (0.014"), position count (16), row configuration (2), mounting type (surface mount), contact finish (gold), and stacking heights. Both are socket-type connectors. The primary difference is product status: AXG716047A is obsolete while AXG116144A is active.

Q: What is the functional difference between AXG116144A and AXF5D1612?

A: AXG116144A is a socket connector; AXF5D1612 is a receptacle connector. Both maintain identical electrical and mechanical parameters. Socket and receptacle connectors are designed to mate with each other. Selection depends on whether your application requires a socket or receptacle interface.

Q: Are there packaging considerations when selecting a substitute?

A: Yes. AXG116144A is supplied in strip packaging, while AXF5D1612 is supplied in tape and reel format. Tape and reel packaging is optimized for automated assembly processes and high-volume production. Strip packaging is suitable for lower-volume or manual assembly operations. Verify packaging compatibility with your assembly equipment and production volume requirements.

Q: Do all substitute parts meet the same RoHS compliance level?

A: AXG716047A and AXF5D1612 are RoHS Compliant. AXG116144A is ROHS3 Compliant, which represents a more recent compliance standard. ROHS3 compliance is a superset of RoHS compliance and is acceptable for applications requiring either standard.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or assembly. Standard storage and handling practices apply.
