AXG716047 Equivalent & Substitute Parts

Part Overview

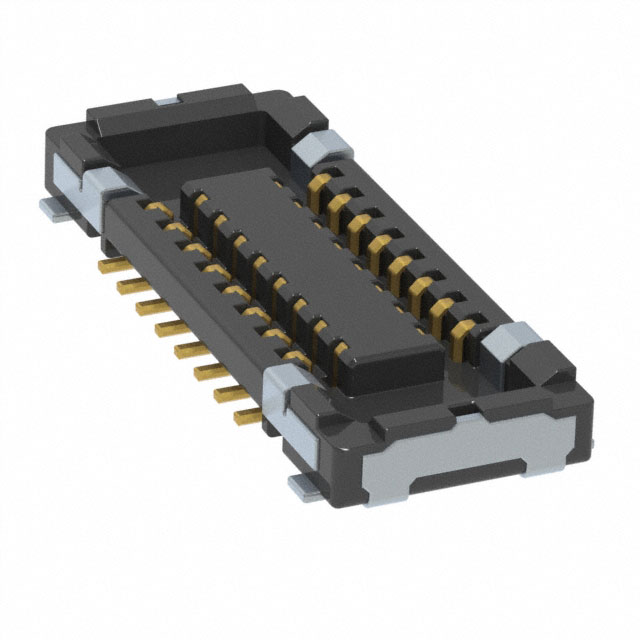

The AXG716047 is a 16-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part operates within standard rectangular connector specifications and maintains full RoHS compliance with MSL 1 rating.

Substiute Parts

AXG716047

Panasonic Electric WorksIn Stock: 1019AXG716047 Datasheet

Current PartRFQ

AXF5D1612

Panasonic Electric WorksIn Stock: 1214AXF5D1612 Datasheet

SimilarRFQ

AXG116144

Panasonic Electric WorksIn Stock: 954AXG116144 Datasheet

Parametric EquivalentRFQ

AXG716044

Panasonic Electric WorksIn Stock: 806AXG716044 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXG716047 is determined by strict alignment of the following critical parameters:

• Connector Type: Socket, Center Strip Contacts (mechanical interface requirement)
• Number of Positions: 16 (pin count compatibility)
• Pitch: 0.014" (0.35mm) (contact spacing and mating compatibility)
• Number of Rows: 2 (physical layout requirement)
• Mounting Type: Surface Mount (PCB assembly compatibility)
• Contact Finish: Gold (electrical performance and corrosion resistance)
• Mated Stacking Heights: 0.6mm (mechanical clearance requirement)
• Height Above Board: 0.023" (0.59mm) (board-level clearance requirement)
• RoHS Status: RoHS Compliant (regulatory requirement)
• Moisture Sensitivity Level: 1 (Unlimited) (storage and handling requirement)

All substitute parts listed maintain these parameters identically to the main part. Differences in product status, series designation, and packaging format do not affect functional or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

AXG116144 and AXG716044 are parametric equivalents to the AXG716047. Both parts maintain identical electrical and mechanical specifications while offering active product status. AXG716044 shares the same base product number (AXG716) and series designation (A35US) as the main part, providing the closest functional continuity. AXG116144 operates under the S35 series with base product number AXG116, representing an alternative socket configuration within the same connector family.

AXF5D1612 is a receptacle variant rather than a socket configuration. While it maintains all critical dimensional and electrical parameters, its connector type (Receptacle vs. Socket) indicates a different mating interface. This part is suitable only for applications requiring receptacle functionality paired with socket connectors.

All three substitute parts carry active product status and full RoHS compliance, ensuring long-term availability and regulatory conformance for new designs and production continuity.

Frequently Asked Questions (FAQ)

Q: Can AXG116144 directly replace AXG716047 in existing designs?

A: Yes. AXG116144 maintains identical pitch (0.014"), position count (16), row configuration (2), mounting type (Surface Mount), contact finish (Gold), and all dimensional specifications. The primary difference is series designation (S35 vs. A35US) and active product status, which do not affect mechanical or electrical compatibility.

Q: What is the difference between AXG716044 and AXG116144?

A: Both are socket connectors with identical electrical and mechanical parameters. AXG716044 belongs to the A35US series with base number AXG716, while AXG116144 belongs to the S35 series with base number AXG116. Series designation reflects internal product line organization but does not affect substitution compatibility.

Q: Why is AXF5D1612 listed as a substitute if it is a receptacle?

A: AXF5D1612 is a receptacle connector, not a socket. It is listed because it maintains all critical dimensional and electrical parameters (pitch, position count, rows, mounting type, contact finish, stacking heights, and board height). However, it is suitable only for applications where receptacle functionality is required, paired with corresponding socket connectors. It cannot replace a socket connector in socket-only applications.

Q: Are all substitute parts available in the same packaging format?

A: No. The main part AXG716047 is supplied in bulk packaging. Substitute parts AXG116144, AXG716044, and AXF5D1612 are supplied in Tape & Reel (TR) format. Packaging format does not affect component functionality but may impact procurement, handling, and assembly processes.

Q: Do all parts meet the same compliance standards?

A: Yes. All parts listed—AXG716047, AXG116144, AXG716044, and AXF5D1612—are RoHS Compliant with Moisture Sensitivity Level 1 (Unlimited),
