AXG712047 Equivalent & Substitute Parts

Part Overview

The AXG712047 is a 12-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part operates within the A35US series and meets RoHS compliance requirements with MSL 1 rating for unlimited moisture exposure.

Key Parameters

Parameter	Value
Manufacturer	Panasonic Electric Works
Category	Rectangular Connectors
Number of Positions	12
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Height	0.6mm
Height Above Board	0.023" (0.59mm)
RoHS Status	RoHS Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the AXG712047 is determined by strict alignment of electrical and mechanical parameters. The critical parameters governing substitutability are:

Number of positions (12)
Pitch spacing (0.014" / 0.35mm)
Number of rows (2)
Mounting type (Surface Mount)
Contact finish (Gold)
Mated stacking height (0.6mm)
Height above board (0.023" / 0.59mm)
RoHS compliance and MSL rating

The substitute parts identified maintain these core parameters. AXG712044 and AXG112144 are parametric equivalents sharing identical electrical and mechanical specifications. AXF5D1212 functions as a complementary component with matching dimensional and electrical characteristics but differs in connector type (receptacle versus socket).

Parameter Comparison

Parameter	AXG712047	AXG712044	AXG112144	AXF5D1212
Manufacturer	Panasonic Electric Works	Panasonic Electric Works	Panasonic Electric Works	Panasonic Electric Works
Connector Type	Socket, Center Strip Contacts	Socket, Center Strip Contacts	Socket, Center Strip Contacts	Receptacle, Center Strip Contacts
Number of Positions	12	12	12	12
Pitch	0.014" (0.35mm)	0.014" (0.35mm)	0.014" (0.35mm)	0.014" (0.35mm)
Number of Rows	2	2	2	2
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Contact Finish	Gold	Gold	Gold	Gold
Mated Stacking Height	0.6mm	0.6mm	0.6mm	0.6mm
Height Above Board	0.023" (0.59mm)	0.023" (0.59mm)	0.023" (0.59mm)	0.023" (0.59mm)
Features	Solder Retention	Solder Retention	Solder Retention	Solder Retention
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active
Series	A35US	A35US	S35	A35UH

Engineering Selection Recommendations

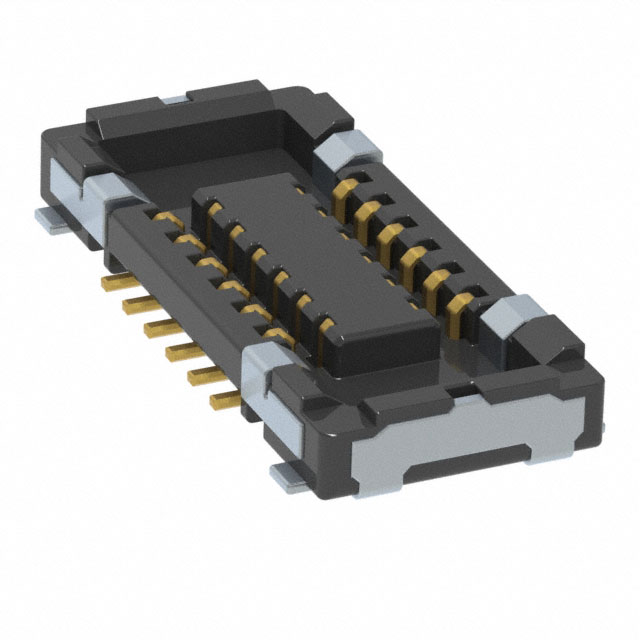

AXG712044 is the primary substitute for AXG712047. Both components belong to the A35US series and maintain identical electrical and mechanical specifications. AXG712044 carries active product status with 1138 units in stock, providing immediate availability for production requirements.

AXG112144 serves as an alternative parametric equivalent with all matching dimensional and electrical parameters. This component operates within the S35 series and maintains active status with significantly higher inventory availability (15300 units), supporting high-volume applications.

AXF5D1212 functions as a complementary receptacle component for mating applications. While sharing all critical dimensional and electrical parameters with the socket variants, its receptacle configuration requires verification of circuit design compatibility before implementation.

All substitute parts maintain RoHS compliance and MSL 1 rating, ensuring compatibility with standard manufacturing and storage environments.

Frequently Asked Questions (FAQ)

Q: Can AXG712044 directly replace AXG712047 in existing designs?

A: Yes. Both components share identical specifications across all critical parameters including position count, pitch, mounting type, contact finish, and dimensional characteristics. The primary difference is product status; AXG712047 is obsolete while AXG712044 is active.

Q: What is the difference between AXG112144 and AXG712044?

A: Both are parametric equivalents with identical electrical and mechanical specifications. The distinction lies in series designation (S35 versus A35US) and inventory availability. AXG112144 offers higher stock levels for high-volume requirements.

Q: When should AXF5D1212 be used instead of the socket variants?

A: AXF5D1212 is a receptacle connector designed for mating with socket components. Selection depends on circuit architecture requirements. If the application requires a receptacle interface, AXF5D1212 is appropriate. If a socket is required, use AXG712044 or AXG112144.

Q: Are all substitute parts RoHS compliant?

A: Yes. AXG712044, AXG112144, and AXF5D1212 all maintain RoHS compliance status matching the original AXG712047 specification.

Q: What packaging formats are available for these substitutes?

A: AXG712044, AXG112144, and AXF5D1212 are supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes.

Q: Does MSL rating differ between the main part and substitutes?

A: No. All components maintain MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions for storage and handling.
