AXG710047A Equivalent & Substitute Parts

Part Overview

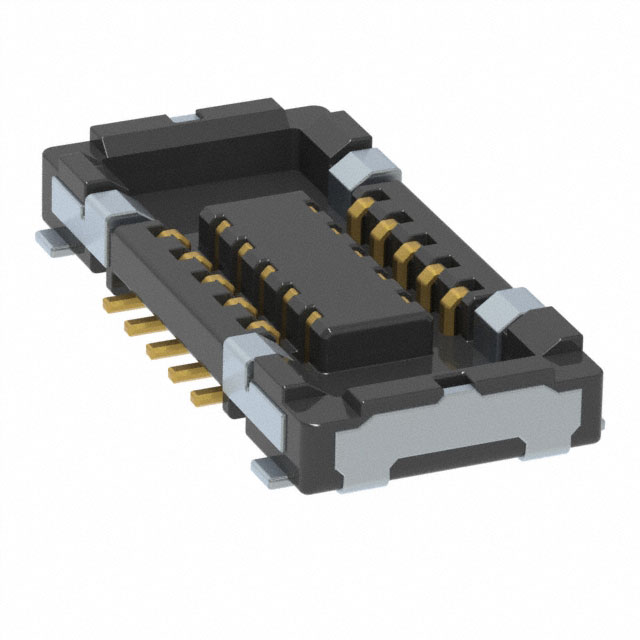

The AXG710047A is a 10-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector features solder retention and operates within MSL 1 (unlimited moisture sensitivity level), suitable for standard industrial and commercial environments.

Substiute Parts

AXG710047A

Panasonic Electric WorksIn Stock: 1719AXG710047A Datasheet

Current PartRFQ

AXF5D1012

Panasonic Electric WorksIn Stock: 1056AXF5D1012 Datasheet

SimilarRFQ

AXG110144A

Panasonic Electric WorksIn Stock: 3350AXG110144A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the AXG710047A is determined by strict alignment of the following critical parameters:

• Connector Type: Socket configuration with center strip contacts
• Position Count: 10 positions
• Pitch Specification: 0.014" (0.35mm)
• Row Configuration: 2 rows
• Mounting Technology: Surface mount (SMD)
• Contact Material: Gold plating
• Mechanical Dimensions: Mated stacking height 0.6mm and height above board 0.023" (0.59mm)
• Environmental Compliance: RoHS compliance and MSL 1 rating

Two substitute parts meet these criteria: AXG110144A (parametric equivalent socket) and AXF5D1012 (functional equivalent receptacle). Both maintain identical electrical and mechanical specifications while offering improved product status and availability.

Parameter Comparison

Engineering Selection Recommendations

AXG110144A is the primary parametric equivalent for direct replacement of AXG710047A. Both components are socket-type connectors with identical electrical and mechanical specifications. AXG110144A offers the advantage of active product status and ROHS3 compliance, ensuring long-term availability and regulatory alignment. This part is recommended for new designs and production continuity where socket configuration is required.

AXF5D1012 serves as a functional alternative when receptacle-type connectors are acceptable in the application. This part maintains all critical electrical and mechanical parameters while offering active product status and Tape & Reel packaging for high-volume applications. Selection of AXF5D1012 requires confirmation that the receptacle configuration is compatible with the mating connector type in the assembly.

Both substitutes maintain RoHS compliance and MSL 1 rating, ensuring compatibility with standard manufacturing and storage environments. Inventory availability is confirmed for both alternatives, supporting immediate procurement.

Frequently Asked Questions (FAQ)

Q: Can AXG110144A directly replace AXG710047A in existing assemblies?

A: Yes. AXG110144A is a parametric equivalent with identical connector type (socket), position count (10), pitch (0.014"/0.35mm), row configuration (2), mounting type (surface mount), contact finish (gold), and mechanical dimensions (0.6mm stacking height, 0.023" height above board). The primary difference is product status (active vs. obsolete) and enhanced RoHS3 compliance.

Q: What is the difference between AXG110144A and AXF5D1012?

A: The primary difference is connector type. AXG110144A is a socket configuration, while AXF5D1012 is a receptacle configuration. Both maintain identical electrical and mechanical specifications. Selection depends on the mating connector type in the application. AXF5D1012 also differs in packaging (Tape & Reel vs. Strip).

Q: Are both substitutes compatible with the same PCB footprint as AXG710047A?

A: Yes. Both AXG110144A and AXF5D1012 share identical mechanical dimensions: 0.6mm mated stacking height and 0.023" height above board. Surface mount pitch and row configuration are identical, ensuring footprint compatibility.

Q: Does the packaging difference between Strip and Tape & Reel affect compatibility?

A: No. Packaging affects handling and assembly processes but does not impact electrical or mechanical compatibility. Strip packaging (AXG710047A, AXG110144A) is suitable for lower-volume applications, while Tape & Reel (AXF5D1012) is optimized for automated high-volume production.

Q: Are there any compliance differences between the three parts?

A: All three parts are RoHS compliant and carry MSL 1 (unlimited) rating. AXG110144A offers ROHS3 compliance, representing enhanced regulatory alignment. AXF5D1012 includes REACH Unaffected status. These differences do not affect functional compatibility but may influence regulatory documentation requirements.

Q: What is the significance of the obsolete status for AXG710047A?

A: Obsolete status indicates the part is no longer manufactured or supported by Panasonic Electric Works. Both substitutes (AXG110144A and AXF5D1012) are active products with confirmed ongoing availability, ensuring supply chain continuity for new production and maintenance applications.
