AXE730127 Equivalent & Substitute Parts

Part Overview

The AXE730127 is a 30-position rectangular connector socket with outer shroud contacts, designed for surface mount applications. Manufactured by Panasonic Electric Works as part of the A35S series, this component features gold-plated contacts and solder retention for reliable interconnection in compact electronic assemblies. The part maintains active product status with full RoHS compliance and MSL 1 rating, indicating no moisture sensitivity constraints during storage and handling.

Substitute parts are identified to address packaging format variations and inventory availability while maintaining identical electrical and mechanical performance characteristics.

Substiute Parts

AXE730127

Panasonic Electric WorksIn Stock: 15085AXE730127 Datasheet

Current PartRFQ

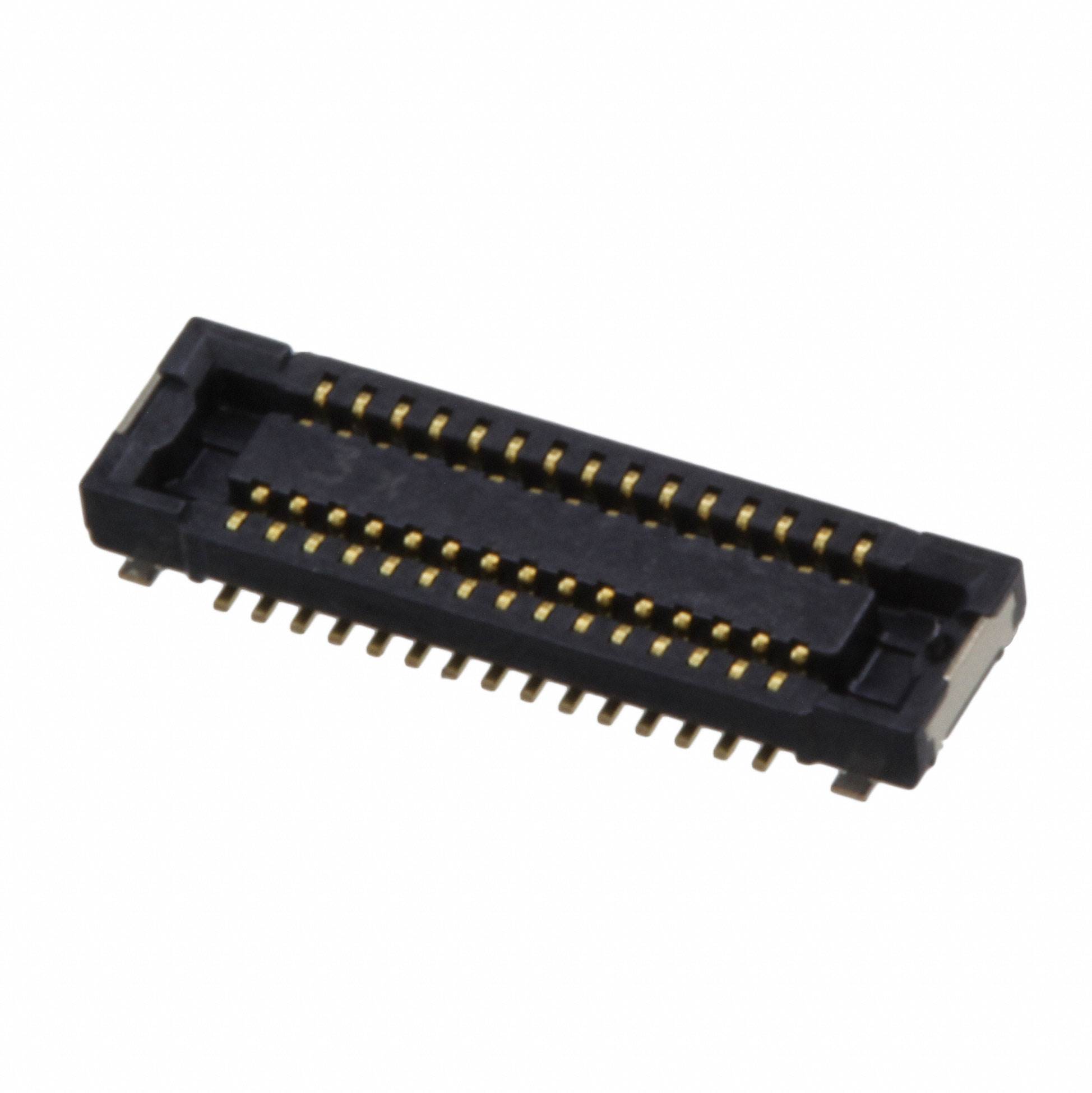

AXE730127A

Panasonic Electric WorksIn Stock: 1136AXE730127A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE730127 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part AXE730127A maintains identical specifications for connector type, position count, pitch, row configuration, mounting method, contact material, stacking heights, and solder retention features. The only variation between these parts is packaging format: the main part is supplied in Tape & Reel (TR) configuration, while the substitute is supplied in Strip packaging. Both parts share the same base product number (AXE730) and series designation (A35S), confirming functional interchangeability.

Substitution is valid when packaging format does not constrain assembly requirements or procurement workflows.

Parameter Comparison

Engineering Selection Recommendations

Both AXE730127 and AXE730127A are active products manufactured by Panasonic Electric Works with full compliance to RoHS standards and identical electrical and mechanical specifications. Selection between these parts should be based on packaging requirements and procurement constraints.

The AXE730127 in Tape & Reel packaging is suitable for high-volume automated assembly operations where continuous feed mechanisms are employed. The AXE730127A in Strip packaging accommodates manual assembly workflows or lower-volume production runs where individual component handling is required.

Both parts carry MSL 1 rating, eliminating moisture sensitivity considerations during storage and field deployment. ECCN and HTSUS classifications are identical, ensuring consistent regulatory and tariff treatment.

Frequently Asked Questions (FAQ)

Q: Are AXE730127 and AXE730127A electrically identical?

A: Yes. Both parts are 30-position socket connectors with 0.35mm pitch, gold-plated contacts, and identical mating stacking heights. Electrical performance and mechanical fit are equivalent.

Q: What is the only difference between these parts?

A: Packaging format. AXE730127 is supplied in Tape & Reel (TR) configuration for automated pick-and-place assembly. AXE730127A is supplied in Strip packaging for manual handling or lower-volume applications.

Q: Can I use AXE730127A as a direct replacement for AXE730127?

A: Yes, provided your assembly process accommodates Strip packaging. If your production line requires Tape & Reel format for automated feeding, the Strip-packaged substitute is not suitable for that specific workflow.

Q: Do these parts have different RoHS compliance levels?

A: Both parts are RoHS compliant. AXE730127 carries standard RoHS certification, while AXE730127A carries ROHS3 certification. Both meet RoHS requirements; ROHS3 represents a more recent compliance verification.

Q: Are there moisture sensitivity concerns with either part?

A: No. Both parts carry MSL 1 rating, indicating unlimited shelf life without moisture sensitivity constraints. Standard component storage practices apply.

Q: Do these parts share the same base product number?

A: Yes. Both parts reference base product number AXE730 and belong to the A35S series, confirming they are variants of the same core connector design.
