AXE680124 Equivalent & Substitute Parts

Part Overview

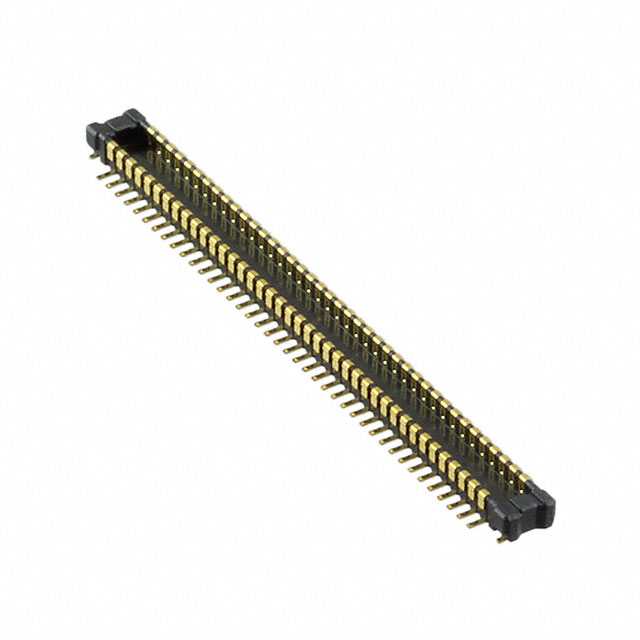

The AXE680124 is an 80-position connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is part of the A4S series and maintains Active product status. Substitute parts are identified when packaging or distribution formats differ while maintaining identical electrical and mechanical specifications, ensuring continuity in component sourcing and inventory management.

Substiute Parts

AXE680124

Panasonic Electric WorksIn Stock: 5539AXE680124 Datasheet

Current PartRFQ

AXE680124A

Panasonic Electric WorksIn Stock: 1629AXE680124A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE680124 is determined by strict equivalence across all electrical and mechanical parameters. The primary substitution criterion is packaging format variance. The identified substitute maintains identical specifications across the following critical parameters:

• Number of positions: 80
• Pitch: 0.016" (0.40mm)
• Number of rows: 2
• Connector type: Header, Outer Shroud Contacts
• Mounting type: Surface Mount
• Contact finish: Gold
• Mated stacking heights: 0.8mm
• Height above board: 0.026" (0.65mm)
• Features: Solder Retention
• RoHS compliance: RoHS Compliant
• MSL rating: 1 (Unlimited)
• Series: A4S

The only variance between the main part and substitute is the packaging format (Tape & Reel versus Strip), which does not affect component functionality or performance in the application.

Parameter Comparison

Engineering Selection Recommendations

Both AXE680124 and AXE680124A are Active status components manufactured by Panasonic Electric Works and maintain full RoHS compliance. Selection between these parts is determined by packaging requirements and inventory availability rather than functional or electrical differences.

The AXE680124 in Tape & Reel packaging is suitable for high-volume automated assembly processes. The AXE680124A in Strip packaging accommodates lower-volume applications or manual assembly workflows. Both components satisfy identical electrical and mechanical requirements for 80-position surface mount connector header applications within the A4S series.

Frequently Asked Questions (FAQ)

Q: Are AXE680124 and AXE680124A electrically identical?

A: Yes. Both parts are functionally equivalent across all electrical and mechanical parameters, including position count, pitch, contact finish, and stacking heights.

Q: What is the difference between Tape & Reel and Strip packaging?

A: Tape & Reel packaging is optimized for automated pick-and-place assembly at high volumes. Strip packaging is used for manual handling or lower-volume applications. The component itself is identical.

Q: Can I use AXE680124A as a direct replacement for AXE680124?

A: Yes, provided your assembly process accommodates Strip packaging format. The electrical and mechanical specifications are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both AXE680124 and AXE680124A are RoHS Compliant with MSL rating of 1 (Unlimited).

Q: What is the base product number for these parts?

A: The base product number is AXE680, with AXE680124 and AXE680124A representing specific packaging variants of the same connector header design.
