AXE580124 Equivalent & Substitute Parts

Part Overview

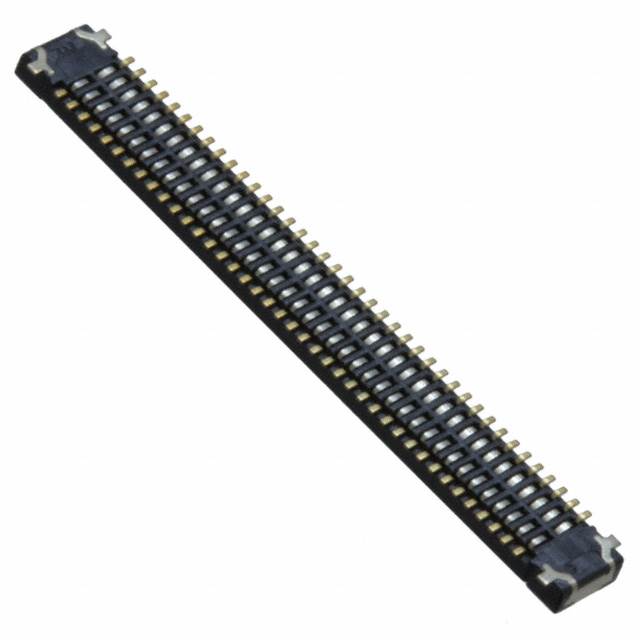

The AXE580124 is an 80-position rectangular connector socket with center strip contacts designed for surface mount applications. Manufactured by Panasonic Electric Works as part of the A4S series, this component features gold-plated contacts and solder retention capabilities. The part is currently classified as obsolete, making identification of equivalent and substitute parts essential for ongoing production and maintenance applications. Active alternatives within the same product family provide direct functional equivalence while maintaining full compatibility with the original design specifications.

Substiute Parts

AXE580124

Panasonic Electric WorksIn Stock: 1079AXE580124 Datasheet

Current PartRFQ

AXE580127

Panasonic Electric WorksIn Stock: 713AXE580127 Datasheet

DirectRFQ

AXE580127A

Panasonic Electric WorksIn Stock: 1428AXE580127A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE580124 is determined by strict equivalence across all critical electrical and mechanical parameters. The following parameters must remain identical for direct substitution:

• Connector type and contact configuration (Socket, Center Strip Contacts)
• Number of positions (80)
• Pitch specification (0.016" / 0.40mm)
• Number of rows (2)
• Mounting technology (Surface Mount)
• Contact finish material (Gold)
• Solder retention feature
• Height above board (0.030" / 0.75mm)
• Mated stacking heights (0.8mm, 1mm)
• Regulatory compliance (RoHS, ECCN, HTSUS)

The substitute parts AXE580127 and AXE580127A meet all these criteria and belong to the same A4S series. Differences in packaging format (Tape & Reel versus Strip) and product status (Active versus Obsolete) do not affect electrical or mechanical compatibility. Both substitutes maintain full functional equivalence with the original AXE580124 specification.

Parameter Comparison

Engineering Selection Recommendations

Both AXE580127 and AXE580127A provide direct substitution for the obsolete AXE580124. Selection between these two active alternatives should be based on packaging and supply chain requirements:

AXE580127 is supplied in Tape & Reel format and maintains RoHS compliance certification. This packaging format is standard for automated assembly processes and high-volume production environments.

AXE580127A is supplied in Strip packaging and carries ROHS3 compliance certification with REACH Unaffected status. This variant provides additional regulatory documentation for applications requiring enhanced compliance tracking.

Both parts are electrically and mechanically identical to the original AXE580124 across all functional parameters. The choice between them depends on procurement specifications, assembly equipment compatibility, and regulatory documentation requirements for the end application.

Frequently Asked Questions (FAQ)

Q: Can AXE580127 and AXE580127A be used interchangeably with AXE580124?

A: Yes. Both substitute parts are electrically and mechanically equivalent to AXE580124. All critical parameters including connector type, position count, pitch, mounting configuration, contact finish, and physical dimensions are identical.

Q: What is the difference between AXE580127 and AXE580127A?

A: The primary differences are packaging format and RoHS certification variant. AXE580127 uses Tape & Reel packaging with standard RoHS compliance. AXE580127A uses Strip packaging with ROHS3 compliance and includes REACH Unaffected status documentation.

Q: Does packaging format affect component performance?

A: No. Packaging format affects only handling, storage, and assembly process compatibility. The connector itself is functionally identical regardless of whether it is supplied in Tape & Reel or Strip format.

Q: Are there any compliance differences between the three parts?

A: All three parts meet RoHS requirements and carry EAR99 ECCN classification. AXE580127A provides additional ROHS3 and REACH documentation. All parts maintain MSL 1 (Unlimited) moisture sensitivity rating.

Q: Why is AXE580124 classified as obsolete?

A: Product status reflects manufacturer lifecycle decisions. Active alternatives AXE580127 and AXE580127A provide identical functionality and are recommended for new designs and ongoing production.
