AXE564124 Equivalent & Substitute Parts

Part Overview

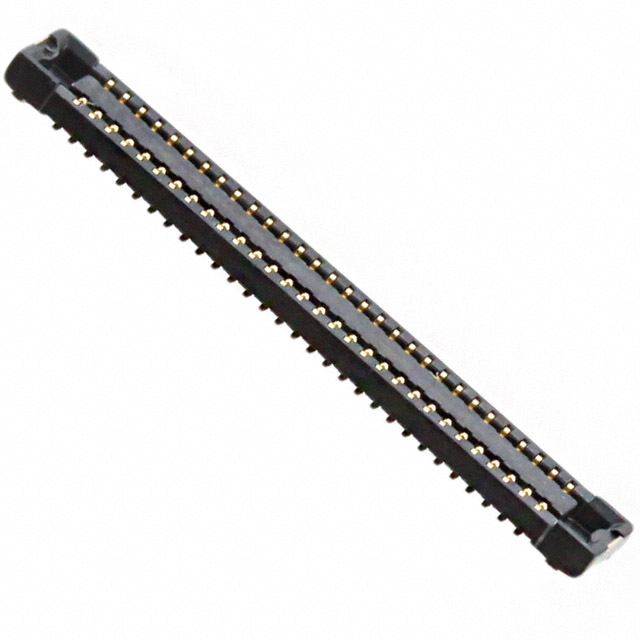

The AXE564124 is a 64-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and design continuity. The AXE564127 serves as the direct functional equivalent, offering identical electrical and mechanical specifications while maintaining active product status and improved availability.

Substiute Parts

AXE564124

Panasonic Electric WorksIn Stock: 1284AXE564124 Datasheet

Current PartRFQ

AXE564127

Panasonic Electric WorksIn Stock: 13442AXE564127 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AXE564127 qualifies as a direct substitute for the AXE564124 based on strict equivalence across all critical electrical and mechanical parameters. Both components share identical specifications in the following determinative categories:

• Connector type and contact configuration (Socket, Center Strip Contacts)
• Position count and pitch (64 positions at 0.016" / 0.40mm)
• Row configuration (2 rows)
• Mounting technology (Surface Mount)
• Contact material and finish (Gold)
• Stacking heights and board clearance (0.8mm, 1mm mated; 0.030" above board)
• Compliance certifications (RoHS Compliant, MSL 1)
• Base product family (A4S series, AXE564 base number)

The primary distinction is product status: AXE564124 is obsolete while AXE564127 maintains active status with significantly higher inventory availability (13,400 units versus 1,179 units).

Parameter Comparison

Engineering Selection Recommendations

The AXE564127 is the appropriate selection for new designs and production continuity. As an active product with identical electrical and mechanical specifications to the obsolete AXE564124, it provides direct functional compatibility without design modification. The component maintains full RoHS compliance and MSL 1 rating, satisfying regulatory and environmental requirements. The Tape & Reel packaging of the AXE564127 supports automated assembly processes and provides superior inventory management compared to bulk packaging. Substantially higher stock availability (13,400 units) ensures supply chain reliability for production schedules.

Frequently Asked Questions (FAQ)

Q: Can AXE564127 be used as a direct replacement for AXE564124 in existing designs?

A: Yes. Both components are electrically and mechanically identical across all specified parameters, including position count, pitch, mounting type, contact finish, and stacking heights. No circuit or layout modifications are required.

Q: What is the difference between AXE564124 and AXE564127?

A: The components are functionally equivalent. The primary differences are product status (AXE564124 is obsolete; AXE564127 is active) and packaging format (AXE564124 is bulk; AXE564127 is Tape & Reel). Inventory availability also differs significantly.

Q: Does the Tape & Reel packaging of AXE564127 affect compatibility?

A: No. Tape & Reel packaging is a supply and handling format that does not alter the component's electrical or mechanical properties. The connector itself is identical to the bulk-packaged version.

Q: Are both parts RoHS compliant?

A: Yes. Both AXE564124 and AXE564127 are RoHS compliant with MSL 1 (Unlimited) moisture sensitivity rating.

Q: Why is AXE564124 listed as obsolete?

A: Obsolescence indicates the manufacturer has discontinued production. AXE564127 represents the active equivalent within the same product family and series.
