AXE530124 Equivalent & Substitute Parts

Part Overview

The AXE530124 is a 30-position rectangular connector socket with center strip contacts, designed for surface mount applications. Manufactured by Panasonic Electric Works as part of the A4S series, this component features gold-plated contacts and solder retention for reliable interconnection in compact electronic assemblies. The part is currently obsolete, making identification of equivalent and substitute components essential for ongoing production support, maintenance, and design updates.

Substiute Parts

AXE530124

Panasonic Electric WorksIn Stock: 17442AXE530124 Datasheet

Current PartRFQ

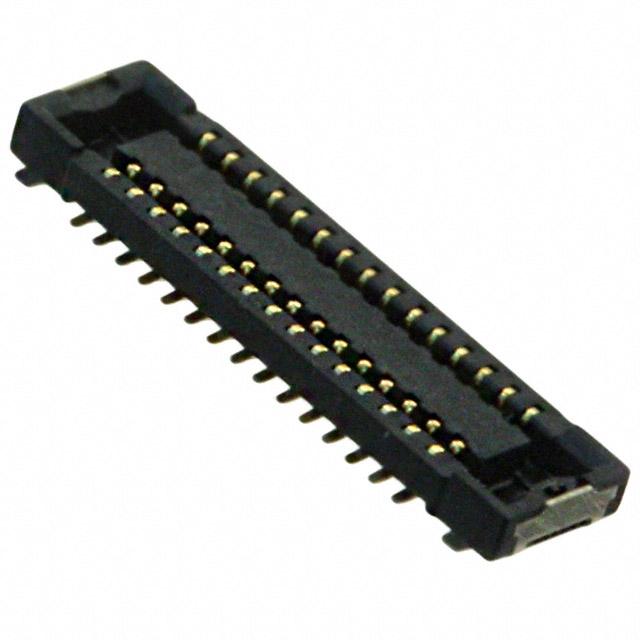

AXE530127

Panasonic Electric WorksIn Stock: 17478AXE530127 Datasheet

DirectRFQ

AXE530127A

Panasonic Electric WorksIn Stock: 1034AXE530127A Datasheet

DirectRFQ

AXE130527A

Panasonic Electric WorksIn Stock: 1139AXE130527A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the AXE530124 is determined by strict equivalence across the following critical parameters:

• Connector Type: Socket, Center Strip Contacts
• Number of Positions: 30
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Mated Stacking Heights: 0.8mm, 1mm
• Height Above Board: 0.030" (0.75mm)
• Features: Solder Retention

Substitute parts are classified into two categories:

Direct Substitutes maintain identical electrical and mechanical specifications with active product status:

• AXE530127
• AXE530127A

Similar Substitute shares core functional parameters but differs in series designation and stacking height specification:

• AXE130527A (Series A4US; Mated Stacking Height: 0.8mm only)

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Recommended for New Designs and Replacements):

AXE530127 and AXE530127A are direct functional equivalents with active product status. Both maintain identical electrical and mechanical specifications to the AXE530124. Selection between these two depends on packaging requirements: AXE530127 is available in Cut Tape and Digi-Reel packaging, while AXE530127A is supplied in Strip packaging. Both are ROHS3 compliant and carry unlimited moisture sensitivity rating.

Secondary Substitute (Limited Application):

AXE130527A shares core connector specifications but operates within a different series (A4US) and supports only 0.8mm mated stacking height, excluding the 1mm option available in the primary substitutes. This part is obsolete and should be considered only when specific design constraints mandate A4US series compatibility. RoHS compliance is standard but predates ROHS3 designation.

Frequently Asked Questions (FAQ)

Q: Can AXE530127 directly replace AXE530124 in existing assemblies?

A: Yes. AXE530127 maintains identical connector type, position count, pitch, row configuration, mounting method, contact finish, stacking heights, and solder retention features. The primary difference is product status: AXE530124 is obsolete while AXE530127 is active.

Q: What is the difference between AXE530127 and AXE530127A?

A: Both parts are electrically and mechanically identical. The distinction is packaging format: AXE530127 is supplied in Cut Tape and Digi-Reel configurations, while AXE530127A uses Strip packaging. Selection depends on assembly line requirements and inventory management practices.

Q: Is AXE130527A a suitable replacement for AXE530124?

A: AXE130527A is functionally compatible for applications requiring only 0.8mm mated stacking height. It is not suitable if your design requires the 1mm stacking height option. Additionally, AXE130527A belongs to the A4US series rather than A4S, and is obsolete. Use AXE530127 or AXE530127A for new designs.

Q: Are all substitute parts RoHS compliant?

A: Yes. AXE530127 and AXE530127A are ROHS3 compliant. AXE130527A is RoHS compliant under earlier standards. All three parts meet environmental compliance requirements for their respective product generations.

Q: What is the moisture sensitivity level for these connectors?

A: All substitute parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or assembly.
