AXE512124 Equivalent & Substitute Parts

Part Overview

The AXE512124 is a 12-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of compatible substitute parts essential for ongoing production and maintenance applications. The AXE512127 serves as a direct functional equivalent, offering identical electrical and mechanical specifications while maintaining active product status.

Substiute Parts

AXE512124

Panasonic Electric WorksIn Stock: 3631AXE512124 Datasheet

Current PartRFQ

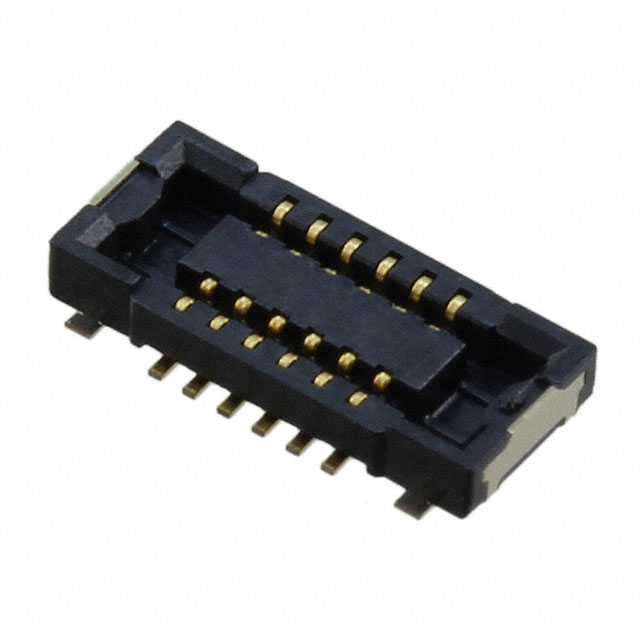

AXE512127

Panasonic Electric WorksIn Stock: 1672AXE512127 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AXE512127 qualifies as a direct substitute for the AXE512124 based on identical alignment across all critical substitution parameters: connector type, position count, pitch spacing, row configuration, mounting method, contact material, stacking heights, and board clearance. Both components share the same base product number (AXE512) and series designation (A4S), confirming functional equivalence. The substitution is valid across all electrical and mechanical interfaces.

Parameter Comparison

Engineering Selection Recommendations

The AXE512127 is the appropriate selection for applications currently specified with AXE512124. Both components maintain identical electrical and mechanical characteristics, ensuring direct compatibility in existing designs. The AXE512127 offers the advantage of active product status, providing assured long-term availability and supply chain continuity. The component carries RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements. Packaging is supplied in Tape & Reel format, suitable for automated assembly processes.

Frequently Asked Questions (FAQ)

Q: Can AXE512127 replace AXE512124 in existing designs? A: Yes. Both components share identical specifications across all electrical and mechanical parameters, including connector type, position count, pitch, mounting configuration, and contact finish. Direct substitution is valid without design modification.

Q: What is the primary difference between these parts? A: The AXE512124 is obsolete, while AXE512127 maintains active product status. The AXE512127 also includes RoHS3 compliance and REACH status documentation. Packaging differs: AXE512124 is unspecified, while AXE512127 is supplied in Tape & Reel format.

Q: Are there any compatibility concerns with PCB layout or assembly? A: No. Identical mounting type (surface mount), height above board (0.030"), and stacking heights (0.8mm, 1mm) ensure full compatibility with existing PCB designs and assembly processes.

Q: Does the Tape & Reel packaging of AXE512127 affect compatibility? A: No. Packaging format applies only to supply and handling. The component itself is identical and functions identically in the application.

Q: Are regulatory certifications equivalent? A: Both components carry EAR99 ECCN and 8536.69.4040 HTSUS classifications. The AXE512127 additionally provides RoHS3 compliance and REACH unaffected status documentation, meeting current regulatory standards.
