AXE464124 Equivalent & Substitute Parts

Part Overview

The AXE464124 is a 64-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with gold-plated contacts and solder retention features. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector operates with a 0.016" (0.40mm) pitch across 2 rows and provides a mated stacking height of 0.6mm with a height above board of 0.018" (0.46mm).

Substiute Parts

AXE464124

Panasonic Electric WorksIn Stock: 720AXE464124 Datasheet

Current PartRFQ

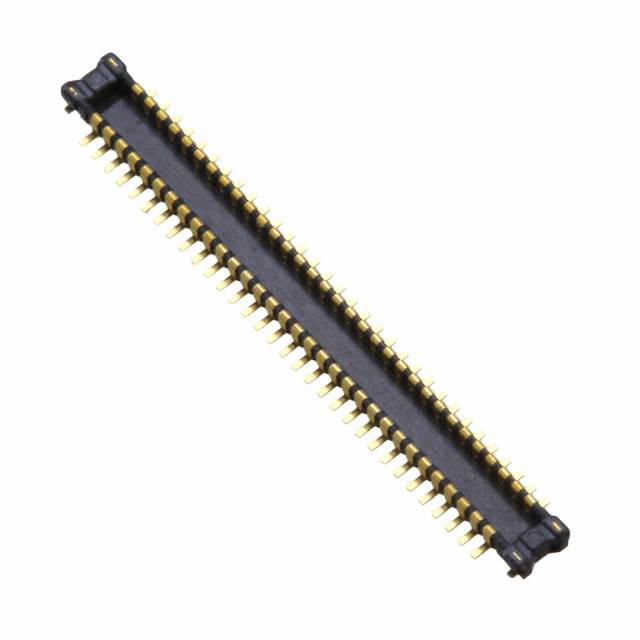

AXE664124

Panasonic Electric WorksIn Stock: 796AXE664124 Datasheet

SimilarRFQ

AXE4E6426

Panasonic Electric WorksIn Stock: 1109AXE4E6426 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE464124 is determined by strict alignment of the following critical parameters:

• Connector Type: Header, Outer Shroud Contacts
• Number of Positions: 64
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Features: Solder Retention
• Moisture Sensitivity Level: 1 (Unlimited)

Substitute parts must maintain identical values across all these parameters to ensure mechanical and electrical compatibility. Variations in mated stacking height or height above board do not disqualify substitution but represent design trade-offs in specific applications.

Parameter Comparison

Engineering Selection Recommendations

AXE664124 is an active substitute with identical electrical and mechanical parameters to the AXE464124. This part carries RoHS compliance certification and is available in Tape & Reel packaging. The primary design difference is an increased mated stacking height of 0.8mm and height above board of 0.026" (0.65mm) compared to the original 0.6mm and 0.018" (0.46mm) respectively. This substitution is suitable for applications where the increased stacking height does not create board-level clearance constraints.

AXE4E6426 is a parametric equivalent that maintains the original mated stacking height of 0.6mm and height above board of 0.018" (0.46mm), providing a direct mechanical fit replacement. This part is active and RoHS compliant, making it the preferred choice for applications requiring identical form factor preservation.

Both substitute parts are manufactured by Panasonic Electric Works and share the same connector type, position count, pitch, row configuration, mounting method, contact finish, and solder retention features as the original AXE464124.

Frequently Asked Questions (FAQ)

Q: Can AXE664124 be used as a direct replacement for AXE464124?

A: AXE664124 meets all critical electrical and mechanical substitution criteria. The increased mated stacking height (0.8mm vs. 0.6mm) and height above board (0.026" vs. 0.018") must be evaluated against your specific PCB layout and clearance requirements. If these dimensional differences do not conflict with your design constraints, this substitution is valid.

Q: What is the difference between AXE664124 and AXE4E6426?

A: Both parts are active substitutes with identical electrical parameters. AXE4E6426 maintains the original form factor with a 0.6mm mated stacking height and 0.018" height above board, while AXE664124 has increased dimensions (0.8mm and 0.026" respectively). AXE4E6426 is the preferred choice if form factor preservation is critical.

Q: Are both substitute parts RoHS compliant?

A: Yes. AXE664124 and AXE4E6426 are both RoHS compliant. The original AXE464124 does not specify RoHS status.

Q: Does packaging affect substitution eligibility?

A: Packaging format (Tape & Reel for AXE664124 versus unspecified for AXE464124 and AXE4E6426) does not affect electrical or mechanical compatibility. Packaging selection depends on your procurement and assembly process requirements.

Q: What is the Moisture Sensitivity Level for these parts?

A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
