AXE310124 Equivalent & Substitute Parts

Part Overview

The AXE310124 is a 10-position rectangular connector socket with center strip contacts, designed for surface mount applications. Manufactured by Panasonic Electric Works as part of the A4F series, this component features gold-plated contacts and solder retention capabilities. The part is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and production continuity.

Substiute Parts

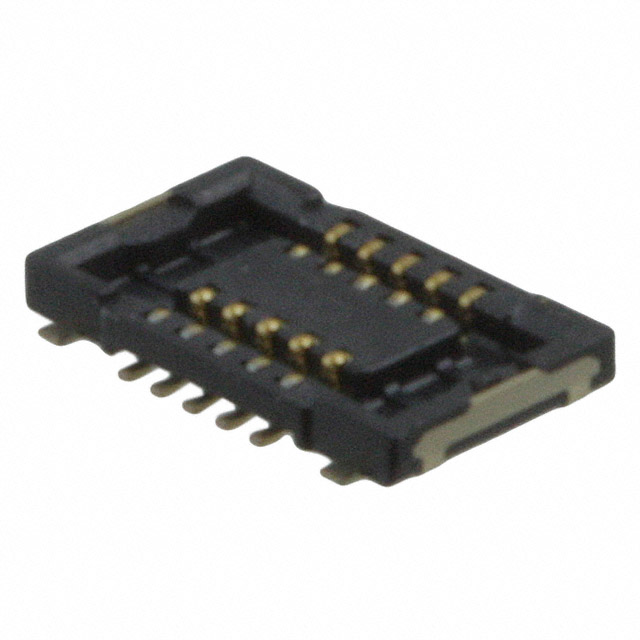

AXE310124

Panasonic Electric WorksIn Stock: 40167AXE310124 Datasheet

Current PartRFQ

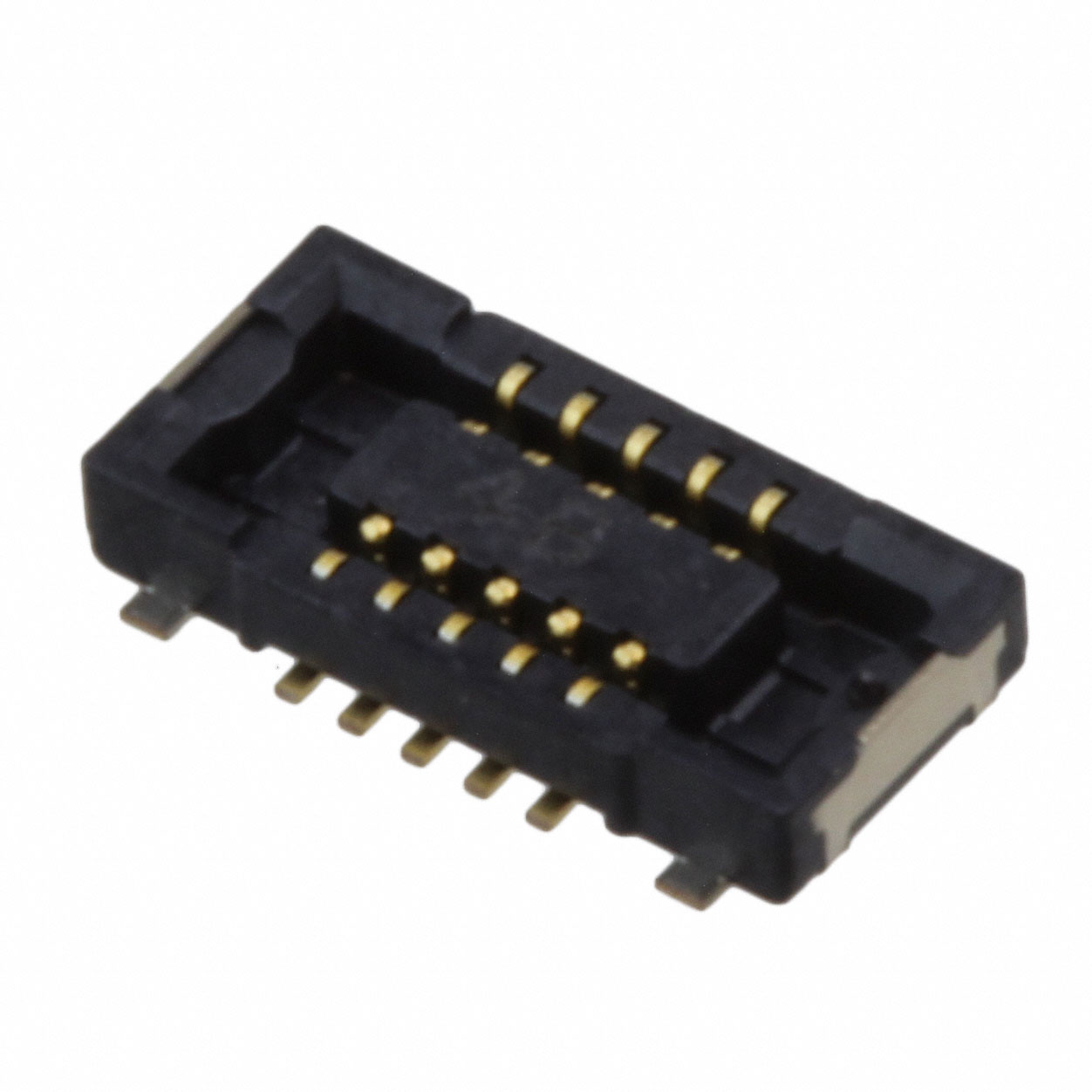

AXE510127

Panasonic Electric WorksIn Stock: 7152AXE510127 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE310124 is determined by strict alignment of core electrical and mechanical parameters. The substitute part AXE510127 qualifies based on the following matching criteria:

• Identical connector type (Socket, Center Strip Contacts)
• Identical number of positions (10)
• Identical pitch specification (0.016" / 0.40mm)
• Identical number of rows (2)
• Identical mounting type (Surface Mount)
• Identical contact finish (Gold)
• Identical solder retention feature
• Identical moisture sensitivity level (MSL 1)

The AXE510127 represents an active production alternative within the Panasonic Electric Works rectangular connector portfolio, offering design continuity for applications previously specified with the obsolete AXE310124.

Parameter Comparison

Engineering Selection Recommendations

The AXE510127 is the designated substitute for the obsolete AXE310124. Both components share identical electrical specifications and core mechanical parameters, ensuring functional compatibility in existing circuit designs.

The AXE510127 offers the advantage of active production status, providing assured supply chain availability and long-term support. The component is RoHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component manufacturing and distribution.

Physical dimensional differences exist between the two parts: the AXE510127 exhibits increased mated stacking heights (0.8mm to 1mm versus 0.6mm) and greater height above board (0.030" / 0.75mm versus 0.022" / 0.57mm). These dimensional variations must be evaluated against specific PCB layout and enclosure clearance requirements in the target application.

Frequently Asked Questions (FAQ)

Q: Can AXE510127 be used as a direct replacement for AXE310124?

A: The AXE510127 is electrically and mechanically compatible with the AXE310124 for connector socket functionality. Both components feature identical position count, pitch, contact finish, and mounting type. Physical height differences require verification against PCB layout constraints and enclosure specifications.

Q: What are the key differences between these two parts?

A: The primary differences are product status (AXE310124 is obsolete; AXE510127 is active production), series designation (A4F versus A4S), and physical dimensions. The AXE510127 has greater mated stacking heights and increased height above board compared to the AXE310124.

Q: Are there packaging differences between these parts?

A: The AXE310124 packaging information is not specified in available documentation. The AXE510127 is available in Cut Tape (CT) and Digi-Reel® packaging formats, supporting both manual and automated assembly processes.

Q: Do both parts meet the same regulatory standards?

A: Both components share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications. The AXE510127 carries RoHS3 compliance and REACH unaffected status. Regulatory compliance documentation for the obsolete AXE310124 should be reviewed against current application requirements.

Q: What is the moisture sensitivity level for these connectors?

A: Both the AXE310124 and AXE510127 are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or assembly processes.
