AXE270124D Equivalent & Substitute Parts

Part Overview

The AXE270124D is a 70-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing production and design requirements. Substitute parts maintain identical electrical and mechanical specifications while offering current product status and improved supply chain availability.

Substiute Parts

AXE270124D

Panasonic Electric WorksIn Stock: 1158AXE270124D Datasheet

Current PartRFQ

AXE270124

Panasonic Electric WorksIn Stock: 781AXE270124 Datasheet

Parametric EquivalentRFQ

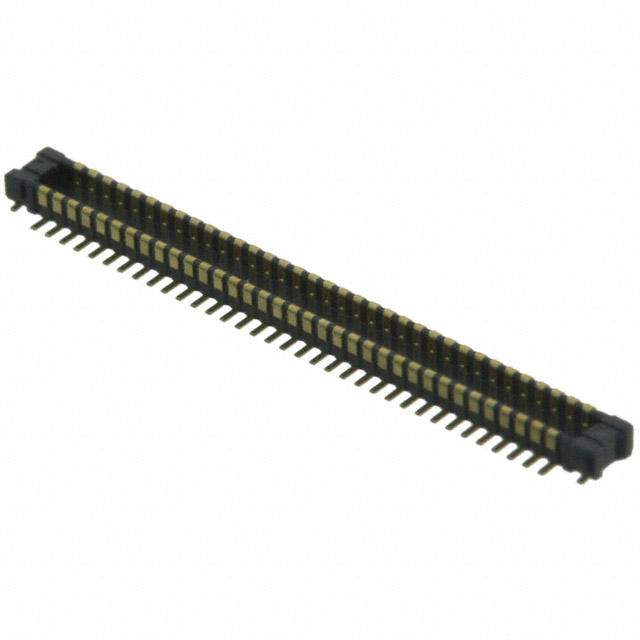

AXE670124

Panasonic Electric WorksIn Stock: 1407AXE670124 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the AXE270124D are qualified based on strict equivalence across the following critical parameters:

• Number of Positions: 70
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Mated Stacking Heights: 0.8mm
• Height Above Board: 0.026" (0.65mm)
• Features: Solder Retention
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Two substitute parts meet these criteria: AXE270124 and AXE670124. Both are manufactured by Panasonic Electric Works and maintain identical electrical and mechanical specifications to the obsolete AXE270124D. The primary distinction between substitutes is series designation and current product status.

Parameter Comparison

Engineering Selection Recommendations

Both AXE270124 and AXE670124 are qualified substitutes for the obsolete AXE270124D based on complete parametric equivalence. Selection between the two substitutes should be based on the following factors:

AXE270124 maintains the same series designation (A4US) as the original part, providing the closest functional continuity for designs originally specified with AXE270124D. This part is currently active with 750 units in stock.

AXE670124 represents an alternative series (A4S) with identical electrical and mechanical specifications. This part is currently active with 1310 units in stock, offering greater supply availability.

Both substitutes are RoHS compliant with MSL rating of 1 (Unlimited) and are supplied in Tape & Reel packaging suitable for automated assembly processes. Product status confirmation as active ensures long-term availability and manufacturing support.

Frequently Asked Questions (FAQ)

Q: Can AXE270124 and AXE670124 be used interchangeably with AXE270124D?

A: Yes. Both substitute parts maintain identical electrical and mechanical specifications including connector type, position count, pitch, mounting configuration, contact finish, and stacking heights. The primary difference is product status and series designation.

Q: What is the difference between AXE270124 and AXE670124?

A: Both parts are parametrically equivalent. AXE270124 belongs to the A4US series, matching the original AXE270124D series. AXE670124 belongs to the A4S series. Electrical and mechanical specifications are identical. AXE670124 has higher current inventory availability.

Q: Are the substitute parts RoHS compliant?

A: Yes. Both AXE270124 and AXE670124 are RoHS compliant with Moisture Sensitivity Level 1 (Unlimited), matching the compliance profile of AXE270124D.

Q: What packaging is available for the substitute parts?

A: Both substitute parts are supplied in Tape & Reel (TR) packaging, suitable for automated surface mount assembly processes.

Q: Why is AXE270124D classified as obsolete?

A: The original part number AXE270124D is no longer in active production. However, parametrically equivalent active alternatives are available through the substitute parts listed.
