AXE230044D Equivalent & Substitute Parts

Part Overview

The AXE230044D is a 30-position rectangular connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The part belongs to the A4US series and maintains full RoHS compliance with MSL 1 rating.

Substiute Parts

AXE230044D

Panasonic Electric WorksIn Stock: 845AXE230044D Datasheet

Current PartRFQ

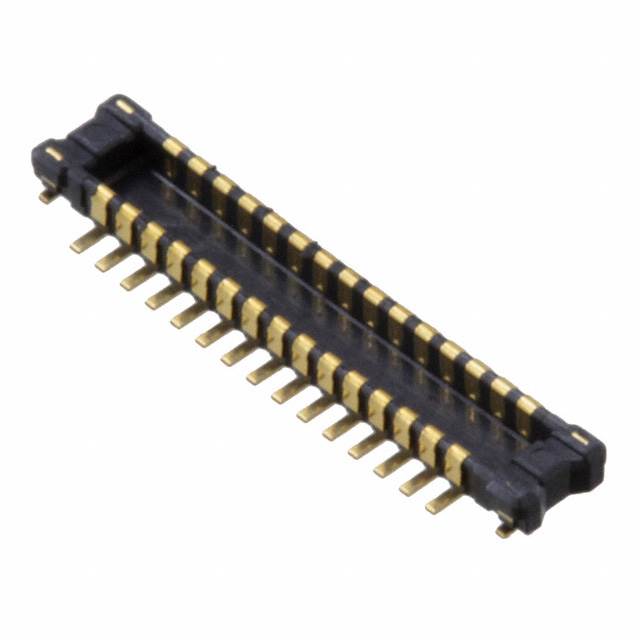

AXE630124

Panasonic Electric WorksIn Stock: 2639AXE630124 Datasheet

SimilarRFQ

AXE4E3026

Panasonic Electric WorksIn Stock: 908AXE4E3026 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE230044D is determined by strict alignment of the following electrical and mechanical parameters:

• 30-position connector configuration
• 0.016" (0.40mm) pitch spacing
• 2-row arrangement
• Header with outer shroud contacts design
• Surface mount technology
• Gold contact finish
• Solder retention feature
• RoHS compliance
• MSL 1 rating

The substitute parts AXE630124 and AXE4E3026 maintain identical electrical specifications and mechanical compatibility across all critical dimensions. Variations in mated stacking heights and height above board do not preclude substitution when PCB layout accommodates the specified clearances.

Parameter Comparison

Engineering Selection Recommendations

Both AXE630124 and AXE4E3026 are suitable substitutes for the obsolete AXE230044D based on electrical and mechanical parameter alignment.

AXE630124 is an active product available in Tape & Reel packaging with 2543 units in stock. This part maintains identical pitch, position count, and contact specifications. The increased mated stacking height (0.8mm versus 0.6mm) and height above board (0.026" versus 0.018") require verification of available PCB clearance in the target application.

AXE4E3026 is an active product with 883 units in stock and identical mated stacking height and height above board dimensions to the original AXE230044D. This part provides direct dimensional compatibility without clearance recalculation.

Both substitutes maintain full RoHS compliance, MSL 1 rating, and identical electrical specifications. Selection between these options depends on packaging requirements, inventory availability, and PCB layout constraints.
