AXE214124 Equivalent & Substitute Parts

Part Overview

The AXE214124 is a 14-position connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is part of the A4US series and maintains active product status. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, ensuring functional interchangeability in rectangular connector applications.

Substiute Parts

AXE214124

Panasonic Electric WorksIn Stock: 778AXE214124 Datasheet

Current PartRFQ

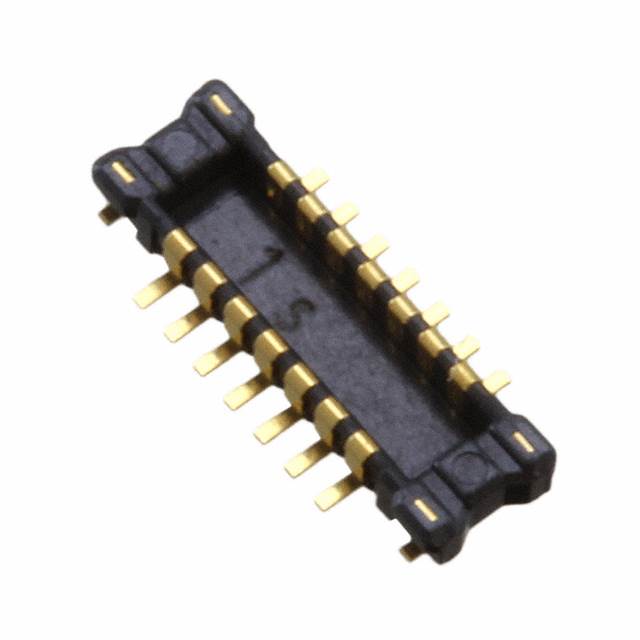

AXE614124

Panasonic Electric WorksIn Stock: 15235AXE614124 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The AXE614124 qualifies as a parametric equivalent to the AXE214124 based on the following critical substitution criteria:

• Identical connector type: Header with outer shroud contacts
• Matching position count: 14 positions
• Identical pitch specification: 0.016" (0.40mm)
• Matching row configuration: 2 rows
• Identical mounting technology: Surface mount
• Matching contact finish: Gold plating
• Identical mated stacking height: 0.8mm
• Identical height above board: 0.026" (0.65mm)
• Matching features: Solder retention capability
• Equivalent compliance: RoHS compliant with MSL 1 rating

Both parts share the same base product family (A4 series) with series designations A4US and A4S respectively. The electrical and mechanical interfaces are fully compatible.

Parameter Comparison

Engineering Selection Recommendations

Both the AXE214124 and AXE614124 maintain active product status with RoHS compliance and MSL 1 rating. Selection between these parts should be based on availability and supply chain requirements. The AXE614124 currently maintains higher inventory levels (15,200 pcs) compared to the AXE214124 (736 pcs), making it suitable for high-volume production requirements. Both parts carry identical electrical and mechanical specifications, ensuring direct substitution capability in rectangular connector applications requiring 14-position headers with 0.40mm pitch and surface mount configuration.

Frequently Asked Questions (FAQ)

Q: Can AXE614124 directly replace AXE214124 in existing designs? A: Yes. Both parts share identical electrical and mechanical parameters including connector type, position count, pitch, mounting type, contact finish, and board heights. Direct substitution is supported without design modification.

Q: What are the key differences between these parts? A: The parts differ only in series designation (A4US versus A4S) and base product number (AXE214 versus AXE614). All functional parameters remain identical.

Q: Are there any compliance or environmental differences? A: No. Both parts carry identical RoHS compliance status and MSL 1 (Unlimited) moisture sensitivity rating.

Q: Which part should be selected for new designs? A: Selection should be based on supply availability and lead time requirements. The AXE614124 offers higher inventory availability, while both parts maintain active status and equivalent specifications.

Q: Are the packaging specifications identical? A: Both parts are supplied in Tape & Reel (TR) packaging format, suitable for automated assembly processes.
