AXE210124 Equivalent & Substitute Parts

Part Overview

The AXE210124 is a 10-position connector header manufactured by Panasonic Electric Works, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as an active product with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts become necessary when the primary part experiences supply constraints, extended lead times, or when design flexibility permits component standardization across manufacturing facilities.

Substiute Parts

AXE210124

Panasonic Electric WorksIn Stock: 986AXE210124 Datasheet

Current PartRFQ

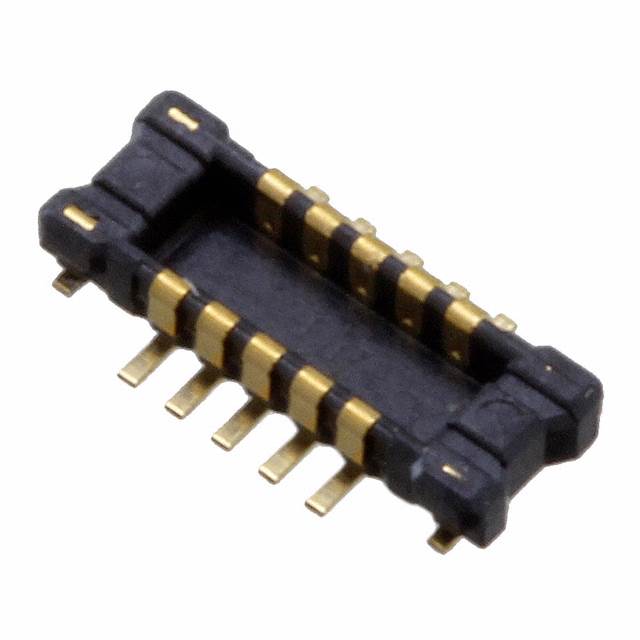

AXE610124

Panasonic Electric WorksIn Stock: 62509AXE610124 Datasheet

Parametric EquivalentRFQ

BM20B(0.8)-10DP-0.4V(53)

Hirose Electric Co LtdIn Stock: 1242BM20B(0.8)-10DP-0.4V(53) Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AXE210124 is determined by strict equivalence across the following critical parameters: connector type (header with outer shroud contacts), position count (10), pitch specification (0.40mm), row configuration (2 rows), mounting method (surface mount), contact material and finish (gold), mated stacking height (0.8mm), height above board (0.65mm), solder retention feature, RoHS compliance status, and moisture sensitivity level (MSL 1). All identified substitute parts match these parameters without exception, ensuring direct functional and mechanical compatibility in the target application.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status with full RoHS compliance and identical regulatory classifications (ECCN: EAR99, HTSUS: 8536.69.4040). The AXE610124 represents a parametric equivalent within the Panasonic Electric Works product family, differing only in series designation (A4S versus A4US). The BM20B(0.8)-10DP-0.4V(53) from Hirose Electric Co Ltd provides cross-manufacturer equivalence with identical electrical and mechanical specifications. Selection between these alternatives should be based on supply availability, lead time requirements, and established supplier relationships, as all parts satisfy the same functional and compliance requirements.

Frequently Asked Questions (FAQ)

Q: Can AXE610124 be used as a direct replacement for AXE210124? A: Yes. Both parts are manufactured by Panasonic Electric Works and share identical electrical and mechanical parameters across all critical specifications including connector type, position count, pitch, mounting method, contact finish, and compliance certifications.

Q: What is the difference between the Panasonic A4US and A4S series? A: The series designation represents internal product line categorization within Panasonic Electric Works. Both series maintain identical parametric specifications for this 10-position, 0.40mm pitch connector configuration.

Q: Is the Hirose BM20B(0.8)-10DP-0.4V(53) mechanically compatible with PCB footprints designed for the AXE210124? A: Yes. The Hirose part matches all mechanical parameters including pitch (0.40mm), position count (10), row configuration (2), mated stacking height (0.8mm), and height above board (0.65mm), ensuring footprint compatibility.

Q: Are there any compliance or regulatory differences between these three parts? A: No. All three parts share identical RoHS compliance status, moisture sensitivity level (MSL 1), ECCN classification (EAR99), and HTSUS code (8536.69.4040).

Q: What packaging format is used for all substitute parts? A: All parts are supplied in Tape & Reel (TR) packaging format, suitable for automated assembly processes.

Q: Can these parts be intermixed in the same production run? A: Yes, provided that PCB assembly equipment is configured to recognize the different part numbers and that design documentation permits cross-manufacturer substitution. All parts meet identical functional and mechanical requirements.
