AXE134124D Equivalent & Substitute Parts

Part Overview

The AXE134124D is a 34-position rectangular connector socket manufactured by Panasonic Electric Works, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The part features solder retention capability and is suitable for high-density interconnect requirements in compact form factors.

Substiute Parts

AXE134124D

Panasonic Electric WorksIn Stock: 959AXE134124D Datasheet

Current PartRFQ

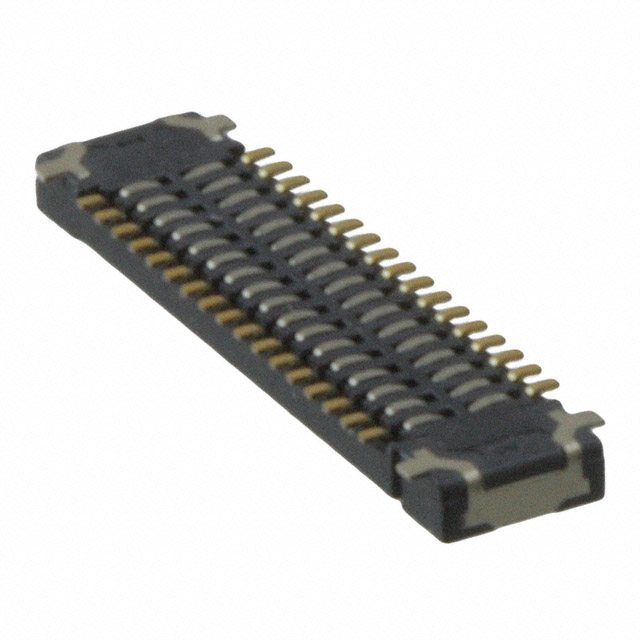

AXE534127

Panasonic Electric WorksIn Stock: 1467AXE534127 Datasheet

SimilarRFQ

AXE134527

Panasonic Electric WorksIn Stock: 792AXE134527 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the AXE134124D are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Core Compatibility Parameters:

• Number of Positions: 34
• Pitch: 0.016" (0.40mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Connector Type: Socket, Center Strip Contacts
• Contact Finish: Gold
• Height Above Board: 0.030" (0.75mm)
• Features: Solder Retention
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The two substitute parts identified—AXE534127 and AXE134527—maintain all critical electrical and mechanical parameters required for direct substitution. Both parts are manufactured by Panasonic Electric Works and share identical connector specifications, contact configuration, and environmental compliance ratings. The primary differences relate to product status (both active versus obsolete) and packaging format, which do not affect functional performance in the application.

Parameter Comparison

Engineering Selection Recommendations

AXE534127 is the primary substitute for the AXE134124D. This part maintains all critical electrical and mechanical specifications while offering the advantage of active product status and higher inventory availability. The AXE534127 belongs to the A4S series and is available in Tape & Reel packaging, which is standard for production environments. Both parts are RoHS compliant and carry identical environmental ratings.

AXE134527 serves as an alternative substitute, maintaining the same A4US series designation as the original part. This option provides continuity with the original series classification while offering active product status. The AXE134527 is also available in Tape & Reel packaging and maintains full compatibility with the AXE134124D specifications.

Both substitute parts satisfy all compliance requirements, including RoHS compliance and MSL Level 1 rating. Selection between the two substitutes should be based on packaging requirements and supply chain considerations, as both deliver identical functional performance.

Frequently Asked Questions (FAQ)

Q: Can AXE534127 and AXE134527 be used interchangeably with AXE134124D?

A: Yes. Both substitute parts maintain identical electrical and mechanical parameters including position count, pitch, mounting type, contact finish, and board height. All three parts are RoHS compliant with MSL Level 1 rating.

Q: What is the difference between AXE534127 and AXE134527?

A: The primary differences are series designation (A4S versus A4US) and mated stacking height options. AXE534127 supports both 0.8mm and 1mm stacking heights, while AXE134527 supports 0.8mm only. Both parts are functionally equivalent for applications requiring 0.8mm stacking height.

Q: Why is the original AXE134124D classified as obsolete?

A: Obsolete status indicates the part is no longer in active production. The substitute parts AXE534127 and AXE134527 are active products that provide equivalent functionality and are recommended for new designs and ongoing production.

Q: Does packaging format affect connector performance?

A: Packaging format (bulk versus Tape & Reel) does not affect electrical or mechanical performance. The choice between packaging types is determined by production volume and assembly process requirements.

Q: Are all three parts RoHS compliant?

A: Yes. AXE134124D, AXE534127, and AXE134527 are all RoHS compliant with identical environmental ratings and MSL Level 1 classification.
