AXA016A0X3Z Equivalent & Substitute Parts

Part Overview

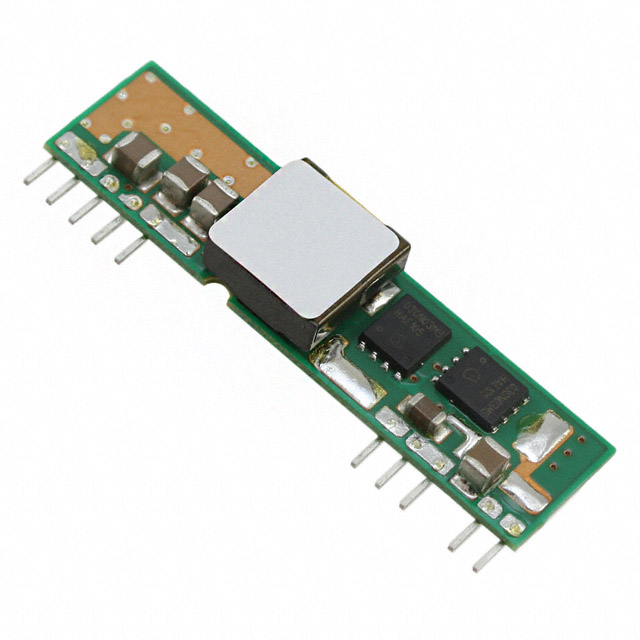

The AXA016A0X3Z by OmniOn Power is a Non-Isolated PoL Module DC-DC Converter featuring one adjustable output (0.8–5.5V) at up to 16A, accepting a 10V–14V input with 88W output capacity. This module, part of the Austin SuperLynx™ series, offers features such as Remote On/Off, OCP, OTP, and UVLO, and supports through-hole mounting. The product status is Obsolete. As this part is no longer in production, it is necessary to identify potential substitute models that align with its electrical and mechanical parameters.

Substiute Parts

AXA016A0X3Z

OmniOn PowerIn Stock: 1187AXA016A0X3Z Datasheet

Current PartRFQ

PJT020A0X3-SRZ

OmniOn PowerIn Stock: 9532PJT020A0X3-SRZ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute selection is determined based on strict alignment of key electrical and mechanical parameters. Inclusion criteria are:

• Non-Isolated PoL Module type
• Single output
• Overlapping or matching input voltage range
• Overlapping or matching output voltage and current capabilities
• Matching or compatible control features and protections (Remote On/Off, OCP, OTP, UVLO)
• Operating temperature range
• Application (ITE Commercial)
• Mounting method and package compatibility
• Compliant with relevant MSL and ECCN codes

Parameter Comparison

Engineering Selection Recommendations

When selecting a substitute for the AXA016A0X3Z, reference product status and compliance only. The AXA016A0X3Z is Obsolete, while PJT020A0X3-SRZ is Active. Both parts share ECCN EAR99 status. PJT020A0X3-SRZ is listed as RoHS compliant; AXA016A0X3Z's RoHS status is not provided. Select substitutes with Active status and required compliance based strictly on these documented attributes.

Frequently Asked Questions (FAQ)

Q1: What are the key electrical parameters for substituting the AXA016A0X3Z?
A1: Substitution requires matching Type (Non-Isolated PoL Module), number of outputs, input voltage range, output voltage/current range, control features, application area, and protection features.

Q2: Should mounting type and package be matched?
A2: Both mounting type and package/case (Through Hole vs Surface Mount, module size) are critical mechanical parameters. Selection must align with system design requirements.

Q3: How important is product compliance status?
A3: Compliance indicators such as ECCN and RoHS status, as well as Moisture Sensitivity Level, must align with application and regulatory requirements.

Q4: Can different series or products from the same manufacturer be direct substitutes?
A4: Only if all key parameters provided match or overlap as specified above. Series or product line differences are not themselves substitution criteria.

Q5: Are there any differences in control feature compatibility?
A5: Both AXA016A0X3Z and PJT020A0X3-SRZ list "Enable, Active Low"; select parts with matching documented features only.
