AXA005A0X Equivalent & Substitute Parts Reference

Part Overview

The OmniOn Power AXA005A0X is a Non-Isolated Point-of-Load (PoL) DC-DC converter module with a 0.8V to 5.5V output voltage range and up to 5A output current, intended for ITE (Commercial) applications. As the AXA005A0X has been designated obsolete, selecting a suitable equivalent or substitute part is required to support ongoing manufacturing and maintenance requirements.

Substiute Parts

AXA005A0X

OmniOn PowerIn Stock: 1368AXA005A0X Datasheet

Current PartRFQ

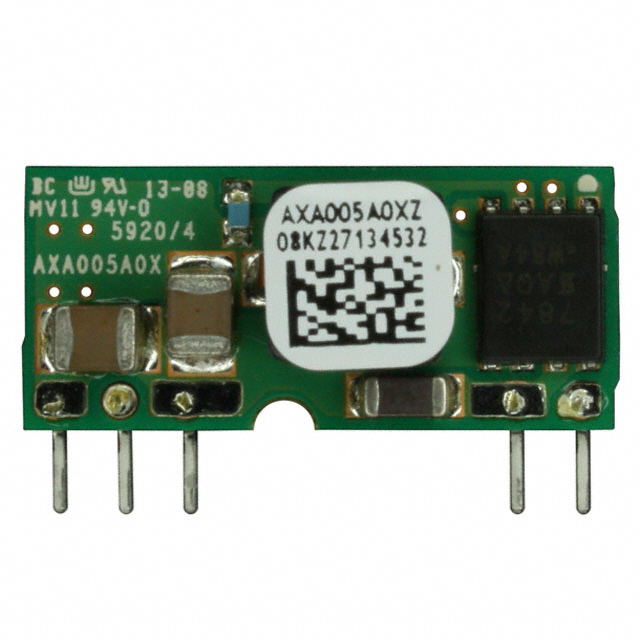

AXA005A0XZ

OmniOn PowerIn Stock: 1303AXA005A0XZ Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is approved when the following parameters are equivalent: module type, number of outputs, input and output voltage ranges, maximum output current, power rating, application type, integrated features, operating temperature range, efficiency, mounting method, package/case, physical size, RoHS status, MSL rating, REACH status, ECCN, and HTSUS code. All these parameters are matched exactly or are compatible between AXA005A0X and substitute part AXA005A0XZ.

Parameter Comparison

Engineering Selection Recommendations

Select the OmniOn Power AXA005A0XZ as the direct substitute for the AXA005A0X Non-Isolated PoL Module DC-DC converter. The substitute part maintains the same electrical, mechanical, and compliance characteristics, including RoHS3 and REACH status. The Moisture Sensitivity Level differs, with AXA005A0X rated at MSL 2 (1 Year) and AXA005A0XZ at MSL 1 (Unlimited).

Frequently Asked Questions (FAQ)

Q1: What parameters must match when selecting a substitute for AXA005A0X?
Substitution requires matching type, number of outputs, voltage input and output ranges, maximum output current, mounting type, package, physical dimensions, and all compliance fields such as RoHS and REACH status.

Q2: Are there any differences in electrical or mechanical characteristics between AXA005A0X and AXA005A0XZ?
Based on provided parameters, AXA005A0X and AXA005A0XZ are equivalent in all primary electrical and mechanical aspects.

Q3: Does the package or mounting type differ between these models?
No. Both AXA005A0X and AXA005A0XZ use the 5-SIP Module form factor with through-hole mounting and identical size/dimensions.

Q4: How does the Moisture Sensitivity Level (MSL) differ, and is it significant?
AXA005A0X is rated MSL 2 (1 Year), while AXA005A0XZ is rated MSL 1 (Unlimited). Selection should consider storage and assembly process requirements as specified.

Q5: Is regulatory compliance (RoHS/REACH) maintained in the substitute part?
Yes. Both models are ROHS3 Compliant and REACH Unaffected.

Q6: What is the product status for AXA005A0X and its substitute?
AXA005A0X is Obsolete. AXA005A0XZ is Active according to provided data.
