AX7DAF2-200.0000 Equivalent & Substitute Parts

Part Overview

The AX7DAF2-200.0000 is a 200 MHz XO (Standard) LVDS Oscillator manufactured by Abracon LLC as part of the ClearClock™ AX7 series. This surface mount crystal oscillator operates at 3.3V with Enable/Disable functionality, housed in an 8-SMD, No Lead package. The device is Active in product status with 1008 units currently in stock. Substitute parts are identified when component availability changes, supply chain disruptions occur, or inventory levels require alternative sourcing while maintaining identical electrical and mechanical specifications.

Substiute Parts

AX7DAF2-200.0000

Abracon LLCIn Stock: 1081AX7DAF2-200.0000 Datasheet

Current PartRFQ

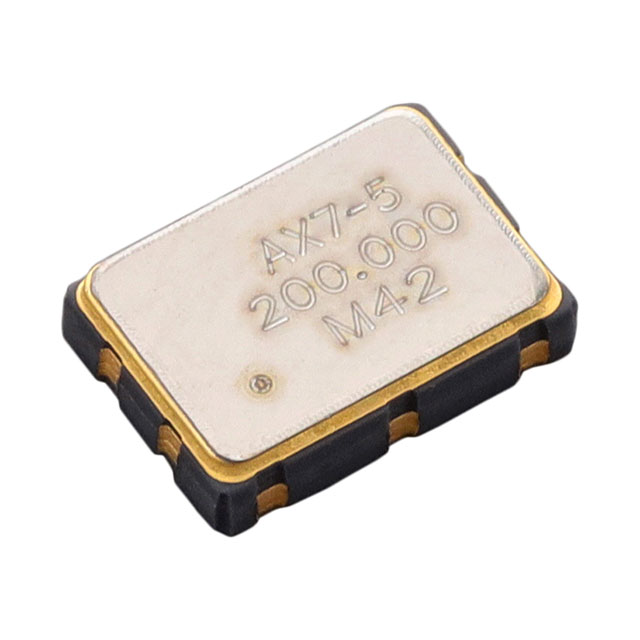

AX7DAF1-200.0000

Abracon LLCIn Stock: 1078AX7DAF1-200.0000 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The AX7DAF1-200.0000 is identified as a parametric equivalent substitute based on strict alignment of the following critical parameters:

• Frequency: 200 MHz (identical)
• Output Type: LVDS (identical)
• Supply Voltage: 3.3V (identical)
• Function: Enable/Disable (identical)
• Frequency Stability: ±25ppm (identical)
• Operating Temperature Range: -40°C ~ 85°C (identical)
• Maximum Supply Current: 70mA (identical)
• Maximum Disable Current: 65mA (identical)
• Package Type: 8-SMD, No Lead (identical)
• Package Dimensions: 7.00mm L x 5.00mm W (identical)
• Maximum Seated Height: 1.90mm (identical)
• Mounting Type: Surface Mount (identical)
• RoHS Status: ROHS3 Compliant (identical)
• Moisture Sensitivity Level: 1 (Unlimited) (identical)
• REACH Status: REACH Unaffected (identical)

Both parts belong to the ClearClock™ AX7 series and maintain Active product status. The substitution is valid for direct replacement in applications requiring 200 MHz LVDS oscillator functionality with 3.3V operation and Enable/Disable control.

Parameter Comparison

Engineering Selection Recommendations

Both the AX7DAF2-200.0000 and AX7DAF1-200.0000 are Active products from Abracon LLC with identical electrical and mechanical specifications. Selection between these parts is based on availability and inventory levels rather than technical differentiation. Both parts maintain ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements for electronic component manufacturing and use. The AX7DAF2-200.0000 currently has higher inventory (1008 units) compared to the AX7DAF1-200.0000 (997 units). For applications requiring 200 MHz LVDS oscillator functionality with 3.3V operation, either part provides equivalent performance and reliability within the specified operating temperature range of -40°C to 85°C.

Frequently Asked Questions (FAQ)

Q: Can the AX7DAF1-200.0000 be used as a direct replacement for the AX7DAF2-200.0000?

A: Yes. Both parts are parametric equivalents with identical electrical specifications (200 MHz frequency, LVDS output, 3.3V supply, ±25ppm stability), identical mechanical specifications (8-SMD No Lead package, 7.00mm x 5.00mm dimensions, 1.90mm maximum height), and identical functional characteristics (Enable/Disable control). Direct substitution is valid for PCB assembly and circuit operation.

Q: Are there any differences in the package or mounting between these parts?

A: No. Both parts use the identical 8-SMD, No Lead surface mount package with dimensions of 7.00mm length by 5.00mm width and a maximum seated height of 1.90mm. PCB footprints and assembly processes are identical.

Q: Do both parts meet the same compliance and regulatory standards?

A: Yes. Both the AX7DAF2-200.0000 and AX7DAF1-200.0000 are ROHS3 compliant and REACH Unaffected. Moisture Sensitivity Level is 1 (Unlimited) for both parts, indicating no moisture sensitivity restrictions during storage or handling.

Q: What is the difference between the part numbers AX7DAF2 and AX7DAF1?

A: The part numbers differ only in the second alphanumeric position (DAF2 versus DAF1). All provided electrical, mechanical, and functional parameters are identical. The difference is a manufacturing or internal designation variant within the ClearClock™ AX7 series.

Q: Are both parts currently available?

A: Yes. The AX7DAF2-200.0000 has 1008 units in stock, and the AX7DAF1-200.0000 has 997 units in stock. Both are listed as Active products.
