AWP26-7241-T-R Equivalent & Substitute Parts

Part Overview

The AWP26-7241-T-R is a 26 Position Rectangular Socket Connector with IDC termination and gold plating, manufactured by Assmann WSW Components. This connector features a 0.100" (2.54mm) pitch, 2-row configuration, and is designed for ribbon cable applications with feed-through and polarizing key features.

The AWP26-7241-T-R is classified as obsolete. Equivalent and substitute parts are necessary to maintain design compatibility and ensure continued availability for applications requiring 26-position IDC rectangular connectors with matching electrical and mechanical specifications.

Key Parameters

Parameter	Value
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	26
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Cable Termination	IDC
Wire Type	Ribbon Cable
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line)

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following parameters:

Number of Positions: 26
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Cable Termination: IDC
Wire Type: Ribbon Cable
Contact Finish: Gold
Contact Type: Female Socket
Mounting Type: Free Hanging (In-Line)

Substitute parts are grouped by connector type (Socket, Receptacle, or Header) and product status (Active or Obsolete). All listed substitutes maintain the core electrical and mechanical parameters required for direct functional replacement in ribbon cable IDC applications.

Parameter Comparison

Part Number	Manufacturer	Connector Type	Positions	Pitch	Rows	Cable Termination	Contact Finish	Product Status	RoHS Status
AWP26-7241-T-R	Assmann WSW Components	Socket	26	0.100" (2.54mm)	2	IDC	Gold	Obsolete	Not Specified
AWP 26-7240-T	Assmann WSW Components	Socket	26	0.100" (2.54mm)	2	IDC	Gold	Active	ROHS3 Compliant
3399-6000	3M	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	ROHS3 Compliant
3399-7000	3M	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	RoHS Compliant
3399-G600	3M	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	RoHS Compliant
3399-H600	3M	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	RoHS Compliant
86130263130345E1LF	Amphenol ICC (FCI)	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	RoHS Compliant
CWR-217-26-0000	CW Industries	Receptacle	26	0.100" (2.54mm)	2	IDC	Gold	Active	ROHS3 Compliant
SFH210-PPPC-D13-ID-BK-M181	Sullins Connector Solutions	Header	26	0.100" (2.54mm)	2	IDC	Gold	Active	ROHS3 Compliant

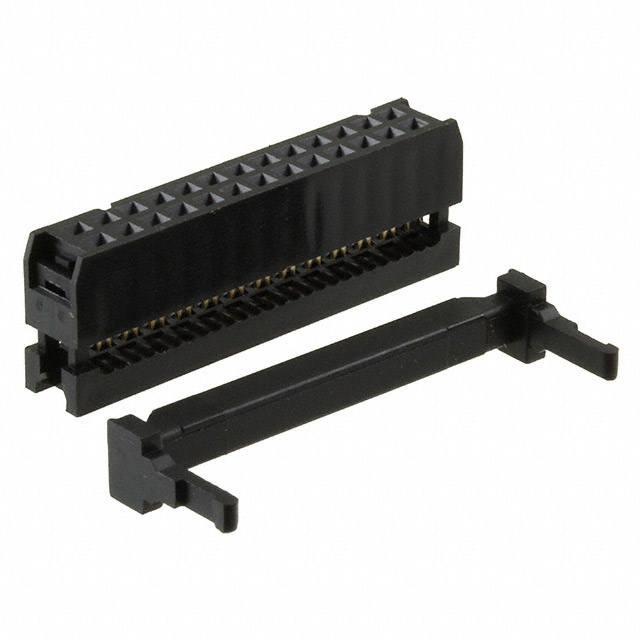

SFH213-PPPC-D13-ID-BK-M181	Sullins Connector Solutions	Header	26	0.100" (2.54mm)	2	IDC	Gold	Active	ROHS3 Compliant

Engineering Selection Recommendations

Primary Substitute (Same Manufacturer, Active Status): AWP 26-7240-T is the direct active equivalent from Assmann WSW Components. This part maintains identical electrical and mechanical specifications while offering ROHS3 compliance and active product status.

Alternative Substitutes (Active Status, Cross-Manufacturer): The 3M 3000 series connectors (3399-6000, 3399-7000, 3399-G600, 3399-H600) provide receptacle-type alternatives with active product status and RoHS compliance. These parts maintain all critical parameters including 26-position, 0.100" pitch, 2-row configuration, and IDC ribbon cable termination.

The Amphenol ICC part 86130263130345E1LF offers receptacle functionality with active status and RoHS compliance, featuring latch holder fastening and strain relief.

The CW Industries CWR-217-26-0000 provides receptacle-type substitution with ROHS3 compliance and active product status.

The Sullins Connector Solutions header-type connectors (SFH210-PPPC-D13-ID-BK-M181 and SFH213-PPPC-D13-ID-BK-M181) offer active alternatives with ROHS3 compliance. These parts feature header connector configuration suitable for applications requiring board-mounted IDC termination.

All listed substitutes maintain Moisture Sensitivity Level 1 (Unlimited) and REACH compliance status consistent with the original part.

Frequently Asked Questions (FAQ)

Q: Can I use a Receptacle connector as a substitute for the Socket connector? A: Receptacle and Socket connectors serve different mating functions within IDC connector systems. Receptacle connectors are designed to mate with header or plug connectors. Substitution between Socket and Receptacle types requires verification of the mating connector type in your application.

Q: What is the difference between the 3M 3399 series variants? A: The 3M 3399 series variants differ in end configuration and wire gauge specifications. The 3399-6000 and 3399-G600 feature feed-through design with polarizing key. The 3399-7000 features closed-end design. The 3399-H600 features feed-through design with polarizing key. All maintain 26-position, 0.100" pitch, 2-row configuration and IDC termination.

Q: Are all substitute parts RoHS compliant? A: All listed substitute parts carry active RoHS compliance status (either RoHS or ROHS3 Compliant). The original AWP26-7241-T-R does not specify RoHS status due to its obsolete classification.

Q: What is the significance of connector type differences (Socket, Receptacle, Header)? A: Connector type determines the mating interface. Socket connectors accept plug or header connectors. Receptacle connectors mate with header or plug connectors. Header connectors mount to circuit boards and mate with socket or receptacle connectors. Selection depends on your application's mating connector type.

Q: Can I substitute parts with different wire gauge specifications? A: Wire gauge specifications are provided for reference where available. The 3M 3399 series specifies 26-28 AWG capability. The Amphenol ICC and Sullins parts specify 28 AWG. Substitution is valid where wire gauge specifications are compatible with your ribbon cable gauge.

Q: What packaging options are available? A: Substitute parts are available in Tray and Bulk packaging configurations. AWP 26-7240-T is supplied in Tray packaging. 3M, Amphenol ICC, and CW Industries parts are supplied in Bulk packaging. Sullins parts are supplied in Tray packaging. Packaging selection depends on procurement and inventory requirements.
