AWP2-14-7241-T-R Equivalent & Substitute Parts

Part Overview

The AWP2-14-7241-T-R is a 14 Position Rectangular Socket Connector with IDC (Insulation Displacement Contact) termination and gold plating, manufactured by Assmann WSW Components. This connector is designed for ribbon cable applications with feed-through and strain relief features. The part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing system support and procurement planning.

Substiute Parts

AWP2-14-7241-T-R

Assmann WSW ComponentsIn Stock: 804AWP2-14-7241-T-R Datasheet

Current PartRFQ

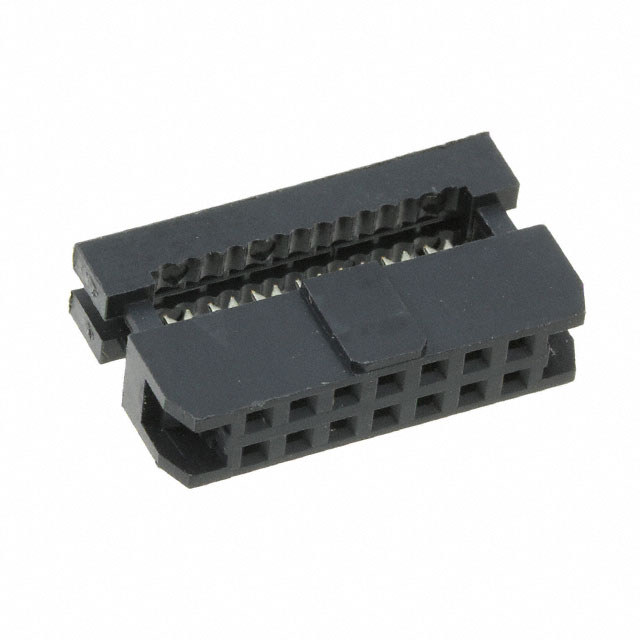

AWP2 14-7240

Assmann WSW ComponentsIn Stock: 1032AWP2 14-7240 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AWP2-14-7240 qualifies as a direct substitute for the AWP2-14-7241-T-R based on the following critical parameters:

• Identical connector type (Socket)
• Identical number of positions (14)
• Identical pitch (0.079" / 2.00mm)
• Identical row configuration (2 rows at 0.079" spacing)
• Identical cable termination method (IDC)
• Identical wire type (Ribbon Cable)
• Identical contact finish (Gold, Flash thickness)
• Identical mounting type (Free Hanging In-Line)
• Shared base product number (AWP2 14)

The substitute part maintains full electrical and mechanical compatibility with the original specification while offering improved product status and availability.

Parameter Comparison

Engineering Selection Recommendations

The AWP2-14-7240 is the appropriate selection for applications currently using or requiring the AWP2-14-7241-T-R. The substitute part maintains identical electrical and mechanical specifications while offering the following advantages:

• Active product status ensures continued manufacturer support and availability
• ROHS3 compliance certification provides regulatory alignment for new designs
• Tray packaging supports standard procurement and handling procedures
• Equivalent inventory availability (1019 pcs in stock) supports production requirements

Both parts share identical compliance certifications (REACH Unaffected, EAR99 ECCN, 8536.69.4051 HTSUS code) and moisture sensitivity ratings, confirming full interchangeability in existing applications.

Frequently Asked Questions (FAQ)

Q: Can AWP2-14-7240 be used as a direct replacement for AWP2-14-7241-T-R?

A: Yes. Both connectors share identical electrical and mechanical specifications including connector type, position count, pitch, row configuration, termination method, and contact finish. The substitute part is fully compatible with existing ribbon cable assemblies and mounting configurations.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. AWP2-14-7241-T-R is obsolete with unspecified packaging, while AWP2-14-7240 is an active product supplied in tray packaging with ROHS3 compliance certification. All functional parameters remain identical.

Q: Are there any compatibility concerns with ribbon cable applications?

A: No. Both parts are specified for IDC termination with ribbon cable and maintain identical pitch (0.079" / 2.00mm) and row spacing. Cable assemblies designed for either part number are mechanically and electrically interchangeable.

Q: Does the packaging difference affect connector performance?

A: No. Tray packaging is a handling and storage format only. It does not affect the electrical or mechanical performance of the connector itself. Both parts meet identical moisture sensitivity and environmental specifications.

Q: What compliance certifications apply to the substitute part?

A: AWP2-14-7240 carries ROHS3 compliance, REACH Unaffected status, EAR99 ECCN classification, and 8536.69.4051 HTSUS code. These certifications match the original part's regulatory requirements.
