AVM32059 Equivalent & Substitute Parts

Part Overview

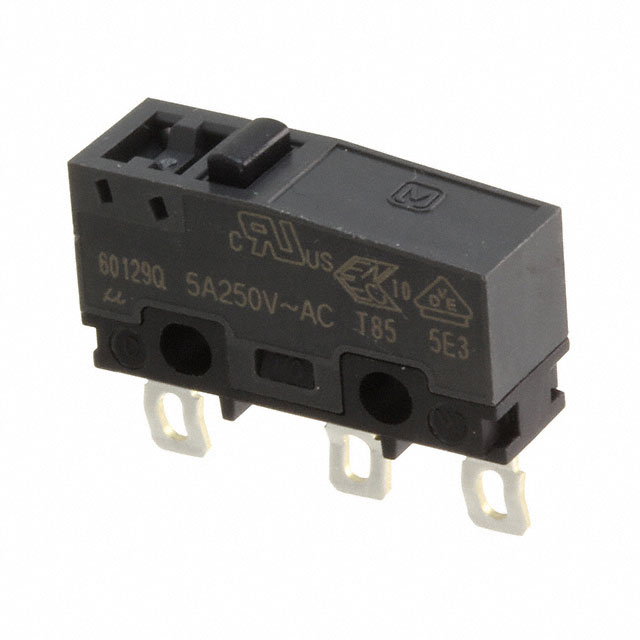

The AVM32059 is a snap action SPDT switch manufactured by Panasonic Electric Works, designed for chassis mount applications with solder lug termination. This switch is rated for 5A at 125V AC and 30V DC, featuring a round pin plunger actuator with on-momentary function. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating.

Equivalent and substitute parts are identified based on matching electrical specifications (circuit configuration, current and voltage ratings), mechanical characteristics (actuator type, mounting style, termination method), and operational parameters (force ratings, travel distances, temperature range, cycle life).

Key Parameters

Parameter	AVM32059 Value
Manufacturer	Panasonic Electric Works
Circuit Configuration	SPDT
Switch Function	On-Mom
Current Rating	5A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Round (Pin Plunger)
Mounting Type	Chassis Mount
Termination Style	Solder Lug
Operating Temperature	-25°C to 85°C
Electrical Life	50,000 Cycles
Mechanical Life	10,000,000 Cycles
RoHS Status	RoHS Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following critical parameters:

Electrical Compatibility: Circuit type (SPDT), switch function (On-Mom), current rating (5A minimum), and voltage rating (125V AC minimum) must match or exceed the main part specifications.

Mechanical Compatibility: Actuator type (round pin plunger), mounting configuration (chassis mount), and termination style (solder lug) must be identical.

Operational Compatibility: Operating position, pretravel, differential travel, and overtravel distances determine physical fit and functional behavior. Temperature operating range and cycle life ratings establish reliability boundaries for the application environment.

Compliance: RoHS status and moisture sensitivity level ensure regulatory and environmental compatibility.

Based on these criteria, the following parts qualify as substitutes:

ZW50F15AD1 (Honeywell): Matches 5A/125V AC rating, SPDT configuration, round pin plunger, chassis mount, solder lug termination, and operating position.
ZM50E10A01 (Honeywell): Matches 5A/125V AC rating, SPDT configuration, round pin plunger, chassis mount, solder lug termination.
DB2CA1AA (ZF Electronics): Exceeds current rating at 10A/125V AC, maintains SPDT configuration, round pin plunger, chassis mount, solder lug termination, and operating position.
DC2C-A1AA (ZF Electronics): Exceeds current rating at 10A/125V AC, maintains SPDT configuration, round pin plunger, chassis mount, solder lug termination, and operating position with enhanced ingress protection.

Parts DB1C-A1AA and DC3C-A1AA are marked as obsolete and are not recommended for new designs.

Parameter Comparison

Parameter	AVM32059	ZW50F15AD1	ZM50E10A01	DB2CA1AA	DC2C-A1AA
Manufacturer	Panasonic Electric Works	Honeywell	Honeywell	ZF Electronics	ZF Electronics
Circuit	SPDT	SPDT	SPDT	SPDT	SPDT
Switch Function	On-Mom	On-Mom	On-Mom	On-Mom	On-Mom
Current Rating (Amps)	5A (AC/DC)	5A (AC)	5A (AC)	10A (AC)	10A (AC)
Voltage Rating - AC	125V	125V	125V	125V	125V
Actuator Type	Round (Pin Plunger)	Round (Pin Plunger)	Round (Pin Plunger)	Round (Pin Plunger)	Round (Pin Plunger)
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Termination Style	Solder Lug	Solder Lug	Solder Lug	Solder Lug	Solder Lug
Operating Position	0.330" (8.4mm)	0.330" (8.4mm)	0.449" (11.4mm)	0.330" (8.4mm)	0.330" (8.4mm)
Operating Temperature	-25°C to 85°C	-40°C to 120°C	-40°C to 120°C	-40°C to 120°C	-40°C to 120°C
Electrical Life	50,000 Cycles	10,000 Cycles	6,000 Cycles	6,000 Cycles	6,000 Cycles
Mechanical Life	10,000,000 Cycles	2,000,000 Cycles	10,000,000 Cycles	10,000,000 Cycles	1,000,000 Cycles
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active	Active
Ingress Protection	Not specified	IP00	Not specified	IP50 - Dust Protected	IP67 - Dust Tight, Waterproof

Engineering Selection Recommendations

Direct Substitutes (Equivalent Current Rating):

ZW50F15AD1 and ZM50E10A01 maintain the 5A current rating of the AVM32059. Both are active products with RoHS compliance. ZW50F15AD1 matches the 0.330" operating position exactly. ZM50E10A01 features a longer 0.449" operating position, which may affect mechanical fit in space-constrained applications. Both Honeywell parts support extended temperature ranges (-40°C to 120°C) compared to the AVM32059 (-25°C to 85°C).

Higher Current Rating Substitutes:

DB2CA1AA and DC2C-A1AA are rated for 10A AC, exceeding the AVM32059 5A specification. Both maintain 125V AC voltage rating, SPDT configuration, and 0.330" operating position. DB2CA1AA provides IP50 ingress protection. DC2C-A1AA provides IP67 ingress protection for applications requiring enhanced environmental sealing. Both are active products with ROHS3 compliance. The higher current rating provides design margin for applications with potential current transients.

Not Recommended:

DB1C-A1AA and DC3C-A1AA are marked as obsolete and should not be selected for new designs or long-term production applications.

Frequently Asked Questions (FAQ)

Q: Can ZM50E10A01 be used as a direct replacement for AVM32059?

A: ZM50E10A01 is electrically and functionally compatible as an SPDT 5A/125V AC switch with round pin plunger, chassis mount, and solder lug termination. However, the operating position differs (0.449" versus 0.330"), which may affect mechanical fit. Verify clearance in the application before substitution.

Q: What is the difference between DB2CA1AA and DC2C-A1AA?

A: Both are 10A/125V AC SPDT switches with identical electrical ratings and operating position. DC2C-A1AA provides IP67 ingress protection (dust tight, waterproof) compared to DB2CA1AA's IP50 protection (dust protected). DC2C-A1AA has lower mechanical life (1,000,000 cycles versus 10,000,000 cycles). Select based on environmental exposure requirements and cycle life demands.

Q: Why do substitute parts have lower electrical life ratings than AVM32059?

A: Electrical life (50,000 cycles for AVM32059 versus 6,000-10,000 cycles for substitutes) reflects manufacturer testing and design specifications. Application duty cycle determines whether lower electrical life is acceptable. Verify that the substitute's electrical life rating meets the intended use frequency.

Q: Are all substitute parts RoHS compliant?

A: Yes. AVM32059 is RoHS Compliant. ZW50F15AD1 and ZM50E10A01 are RoHS Compliant. DB2CA1AA and DC2C-A1AA are ROHS3 Compliant. All parts meet RoHS requirements for new designs.

Q: Can I use a 10A rated switch in place of a 5A rated switch?

A: Yes, from an electrical standpoint. DB2CA1AA and DC2C-A1AA are rated for 10A, which exceeds the 5A requirement of AVM32059. Higher current rating provides design margin. Verify mechanical fit, operating position, and environmental protection requirements match the application.

Q: What is the significance of operating position differences?

A: Operating position (0.330" for AVM32059, ZW50F15AD1, DB2CA1AA, DC2C-A1AA; 0.449" for ZM50E10A01) determines the plunger travel distance required to actuate the switch. Differences affect mechanical fit within the enclosure and may require design modification. Verify clearance and actuator compatibility before substitution.
