AU-Y1007-R USB-B Receptacle Connector Equivalent & Substitute Parts

Part Overview

The AU-Y1007-R is an Assmann WSW Components USB-B Type-B receptacle connector rated for USB 1.1 operation. This connector features a 4-position through-hole right-angle configuration with a 1.5A current rating and board lock feature. The part is currently listed as obsolete, making equivalent and substitute parts necessary for ongoing design support and component sourcing.

Substiute Parts

AU-Y1007-R

Assmann WSW ComponentsIn Stock: 1024AU-Y1007-R Datasheet

Current PartRFQ

AU-Y1007

Assmann WSW ComponentsIn Stock: 8582AU-Y1007 Datasheet

DirectRFQ

1001-003-02000

CNC TechIn Stock: 78961001-003-02000 Datasheet

DirectRFQ

33UBBR-04SW11

Amphenol CONECIn Stock: 89133UBBR-04SW11 Datasheet

MFR RecommendedRFQ

UE27BC54130

Amphenol ICC (Commercial Products)In Stock: 8511UE27BC54130 Datasheet

MFR RecommendedRFQ

USB-B-S-RA

Adam TechIn Stock: 3154USB-B-S-RA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AU-Y1007-R is determined by the following critical parameters:

• Connector Type: USB-B receptacle configuration
• Contact Count: 4 positions
• Mounting Configuration: Through-hole, right-angle, horizontal orientation
• Termination Method: Solder attachment
• Current Capacity: Minimum 1.5A rating
• Operating Temperature: Range must encompass -55°C to 85°C or be compatible with application requirements
• Compliance: UL94 V-0 flammability rating and REACH Unaffected status

All substitute parts listed maintain these core electrical and mechanical parameters, ensuring form, fit, and function compatibility with designs originally specified for AU-Y1007-R.

Parameter Comparison

Engineering Selection Recommendations

AU-Y1007 (Assmann WSW Components): Direct manufacturer equivalent with active product status. Recommended as the primary substitute for AU-Y1007-R due to identical form factor and manufacturer continuity. Highest inventory availability (8539 pcs).

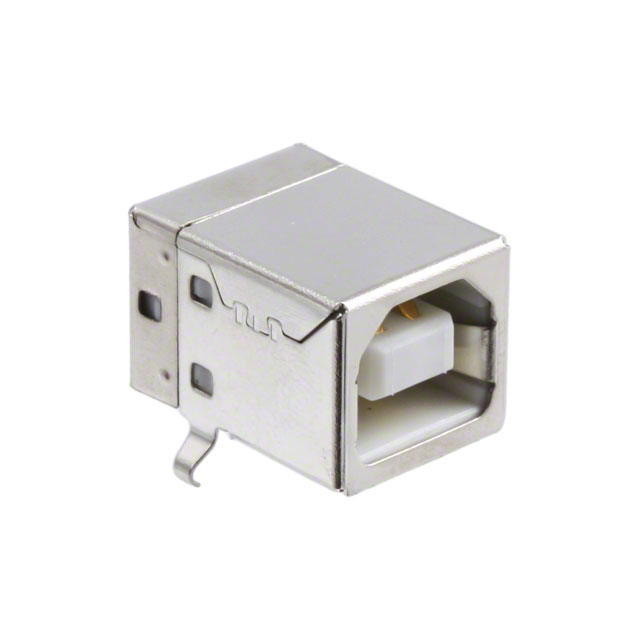

1001-003-02000 (CNC Tech): Fully qualified substitute meeting all electrical and mechanical parameters. Matches operating temperature range and current rating. ROHS3 compliant. Suitable for applications requiring extended component availability.

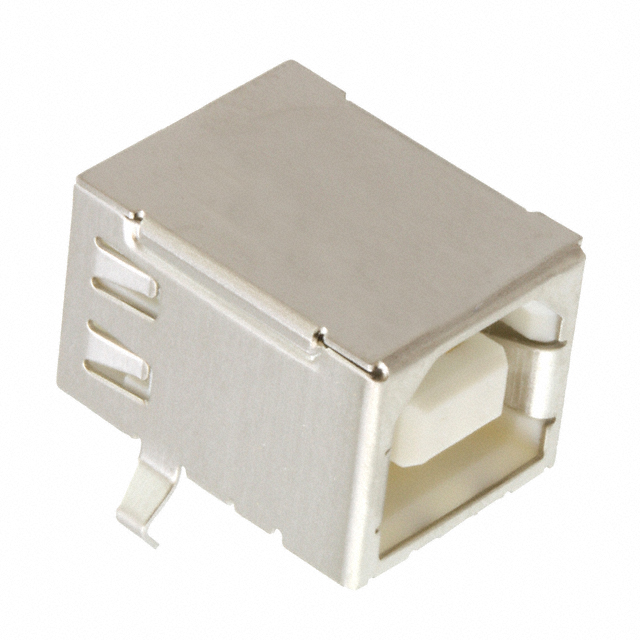

33UBBR-04SW11 (Amphenol CONEC): Meets core substitution criteria with UL94 V-0 compliance and REACH Unaffected status. Unshielded configuration. Lower inventory availability (855 pcs).

UE27BC54130 (Amphenol ICC): USB 2.0 rated connector with backward compatibility to USB 1.1 applications. Shielded design provides enhanced EMI performance. Operating temperature range -40°C to 85°C is compatible with AU-Y1007-R specifications. ROHS3 compliant. Highest inventory availability among substitutes (8499 pcs).

USB-B-S-RA (Adam Tech): USB 2.0 rated with shielded configuration. Current rating of 1.0A is below the 1.5A specification of AU-Y1007-R. Operating temperature range -20°C to 85°C has reduced low-temperature capability. Use only where application current requirements do not exceed 1.0A and operating environment remains above -20°C.

Frequently Asked Questions (FAQ)

Q: Can AU-Y1007 be used as a direct replacement for AU-Y1007-R?

A: Yes. AU-Y1007 is the active production equivalent from the same manufacturer with identical connector specifications, mounting configuration, and electrical ratings. It is the recommended primary substitute.

Q: What is the difference between USB 1.1 and USB 2.0 rated connectors in this list?

A: USB 2.0 connectors (UE27BC54130, USB-B-S-RA) are backward compatible with USB 1.1 applications. The physical connector interface remains identical. USB 2.0 rating indicates support for higher data transfer rates, but does not affect mechanical or electrical compatibility with USB 1.1 designs.

Q: Why does USB-B-S-RA have a lower current rating of 1.0A?

A: USB-B-S-RA is rated for 1.0A maximum continuous current, which is below the 1.5A specification of AU-Y1007-R. This connector is suitable only for applications where actual current draw does not exceed 1.0A.

Q: Are all substitute parts ROHS3 compliant?

A: ROHS3 compliance is specified for 1001-003-02000, UE27BC54130, and USB-B-S-RA. AU-Y1007 and 33UBBR-04SW11 do not have ROHS3 status specified in available documentation. Verify compliance requirements for your specific application.

Q: What is the significance of shielded versus unshielded configurations?

A: Shielded connectors (UE27BC54130, USB-B-S-RA) provide EMI/RFI protection through copper alloy or steel shielding. Unshielded connectors (33UBBR-04SW11) lack this protection. Selection depends on application EMI environment and design requirements.

Q: Can I use UE27BC54130 in applications requiring -55°C operation?

A: UE27BC54130 is rated for -40°C to 85°C. If your application requires operation at -55°C, use AU-Y1007, 1001-003-02000, or 33UBBR-04SW11, which are rated to -55°C.

Q: What packaging options are available?

A: 1001-003-02000 and UE27BC54130 are supplied in Tray packaging. USB-B-S-RA is supplied in Tray packaging. AU-Y1007 and 33UBBR-04SW11 packaging is not specified in available data.
