AUSB2-BFM-HTP Equivalent & Substitute Parts

Part Overview

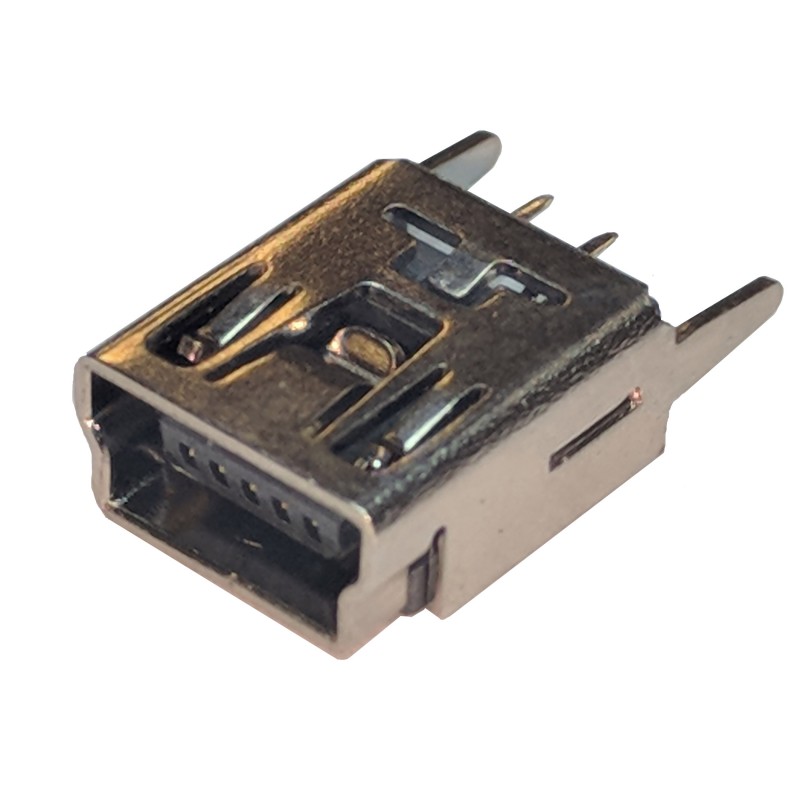

The AUSB2-BFM-HTP is a USB 2.0 mini-B receptacle connector manufactured by Assmann WSW Components. This through-hole mounted connector features 5 positions and is designed for vertical mounting with solder termination. The part is currently active in production with 626 units in stock. Equivalent substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component selection from multiple manufacturers.

Substiute Parts

AUSB2-BFM-HTP

Assmann WSW ComponentsIn Stock: 685AUSB2-BFM-HTP Datasheet

Current PartRFQ

1040040501

MolexIn Stock: 27831040040501 Datasheet

Parametric EquivalentRFQ

1040040505

MolexIn Stock: 18341040040505 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the AUSB2-BFM-HTP are qualified based on the following critical parameters that must match or remain compatible:

• Connector Type: USB - mini B (exact match required)
• Number of Contacts: 5 (exact match required)
• Gender: Receptacle (exact match required)
• Specifications: USB 2.0 (exact match required)
• Mounting Type: Through Hole (exact match required)
• Mounting Feature: Vertical (exact match required)
• Termination: Solder (exact match required)
• Shielding: Shielded (exact match required)
• Contact Finish: Gold (exact match required)
• Material Flammability Rating: UL94 V-0 (exact match required)
• RoHS Status: ROHS3 Compliant (exact match required)

The substitute parts 1040040501 and 1040040505, both manufactured by Molex under the 104004 series, meet all critical substitution criteria. Both parts are functionally equivalent USB 2.0 mini-B receptacle connectors with identical mechanical and electrical interface specifications.

Parameter Comparison

Engineering Selection Recommendations

Both Molex substitute parts 1040040501 and 1040040505 are qualified equivalents for the AUSB2-BFM-HTP. Selection between these options is based on availability and inventory status:

1040040505 provides 1766 units in stock, while 1040040501 provides 2696 units in stock. Both parts carry active product status and full ROHS3 compliance certification.

The operating temperature range of the Molex parts (-40°C ~ 85°C) is narrower than the Assmann part (-55°C ~ 85°C). Applications requiring operation below -40°C must retain the AUSB2-BFM-HTP.

The current rating specification differs between manufacturers: the Assmann part is rated at 1.8A while the Molex parts are rated at 1A per contact. Applications requiring current capacity above 1A per contact must retain the AUSB2-BFM-HTP.

The voltage rating differs: the Assmann part is rated at 30VAC while the Molex parts are rated at 5VDC. Circuit voltage requirements must be verified against these specifications.

Frequently Asked Questions (FAQ)

Q: Can 1040040501 and 1040040505 be used interchangeably with AUSB2-BFM-HTP?

A: Both Molex parts are functionally equivalent for USB 2.0 mini-B receptacle applications with identical mechanical interfaces. Substitution is valid when operating temperature remains above -40°C, current requirements do not exceed 1A per contact, and circuit voltage is 5VDC or lower.

Q: What is the difference between 1040040501 and 1040040505?

A: Both parts are identical in electrical and mechanical specifications. They differ only in inventory availability and manufacturing lot designation within the Molex 104004 series.

Q: Are the shell materials compatible between AUSB2-BFM-HTP and the Molex substitutes?

A: The AUSB2-BFM-HTP uses brass shielding material while the Molex parts use phosphor bronze. Both materials provide equivalent shielding performance for USB 2.0 applications and maintain UL94 V-0 flammability compliance.

Q: What are the packaging specifications for these parts?

A: All three parts are supplied in tray packaging suitable for automated assembly processes.

Q: Are all parts RoHS compliant?

A: Yes, AUSB2-BFM-HTP, 1040040501, and 1040040505 are all ROHS3 compliant.
