A-USB/2-A-LP USB 2.0 Type-A Right Angle Plug Connector Equivalent & Substitute Parts

Part Overview

The A-USB/2-A-LP is an active USB 2.0 Type-A plug connector manufactured by Assmann WSW Components. This connector is a 4-position, through-hole, right-angle solder termination component designed for PCB integration in USB 2.0 applications. The part is ROHS3 compliant and rated for 1.5A continuous current with an operating temperature range of -55°C to 85°C. Equivalent and substitute parts are identified based on matching connector type, contact configuration, mounting methodology, and electrical specifications to ensure functional interchangeability in circuit design applications.

Substiute Parts

A-USB/2-A-LP

Assmann WSW ComponentsIn Stock: 925A-USB/2-A-LP Datasheet

Current PartRFQ

0480370001

MolexIn Stock: 212150480370001 Datasheet

Parametric EquivalentRFQ

RAHPCUA20E

Switchcraft Inc.In Stock: 1603RAHPCUA20E Datasheet

Parametric EquivalentRFQ

USB-AM-S-F-B-TH-R

Samtec Inc.In Stock: 1044USB-AM-S-F-B-TH-R Datasheet

Parametric EquivalentRFQ

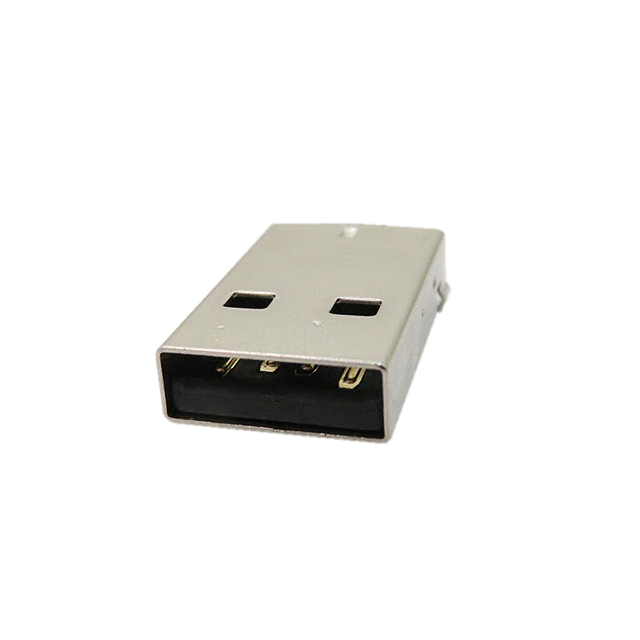

USB-AP-S-RA

Adam TechIn Stock: 13249USB-AP-S-RA Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the A-USB/2-A-LP are qualified based on the following critical parameters that determine functional interchangeability:

Primary Matching Criteria:

• Connector Type: USB-A (USB TYPE-A)
• Specifications: USB 2.0
• Number of Contacts: 4 positions
• Gender: Plug
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Shielding: Shielded
• Contact Finish: Gold
• Insulation Color: Black

Secondary Compatibility Factors:

• Current Rating: Minimum 1.0A (main part rated 1.5A)
• Operating Temperature Range: Overlap with -55°C to 85°C specification
• Material Flammability Rating: UL94 V-0 or equivalent
• RoHS3 Compliance: Required for regulatory alignment
• REACH Compliance: Required for regulatory alignment

All four substitute parts meet the primary matching criteria. Variations in operating temperature range, current rating, and voltage specifications are noted in the parameter comparison table for design consideration.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed are active products with ROHS3 compliance and REACH compliance status (where specified), ensuring regulatory alignment with the A-USB/2-A-LP reference part.

0480370001 (Molex): This part provides equivalent current rating (1.5A) and mating cycle specification (1500 cycles) to the main part. Operating temperature range is -20°C to 85°C, which covers the upper portion of the main part specification. Voltage rating of 150VAC is specified. This part is suitable for applications where the full -55°C lower temperature limit is not required.

RAHPCUA20E (Switchcraft Inc.): This part meets all primary matching criteria with a current rating of 1.0A and operating temperature range of -25°C to 85°C. The lower current rating should be considered for applications requiring the full 1.5A specification of the main part. Material flammability rating is not specified in available data.

USB-AM-S-F-B-TH-R (Samtec Inc.): This part provides the widest operating temperature range (-50°C to 85°C) among substitutes and matches the mating cycle specification (1500 cycles) of the main part. Current rating is not specified. Shell/shielding material is phosphor bronze rather than steel. Voltage rating is 30VAC. This part is suitable for extended low-temperature applications.

USB-AP-S-RA (Adam Tech): This part meets all primary matching criteria with a current rating of 1.0A and operating temperature range of -20°C to 60°C. The upper temperature limit of 60°C is lower than the main part specification of 85°C and should be considered for high-temperature applications. Voltage rating is 30VAC.
