ATM-20LP Automotive Fuse Equivalent & Substitute Parts
Part Overview
The ATM-20LP is a 20A 32VDC automotive blade fuse in miniature (low profile) form factor manufactured by Eaton - Bussmann Electrical Division. This fuse is designed for automotive electrical circuits requiring fast-blow response characteristics and is actively produced. Equivalent and substitute parts are identified based on matching electrical ratings, mechanical form factors, and functional performance parameters to ensure direct circuit compatibility.
Substiute Parts
Key Parameters
| Parameter | ATM-20LP Value |
|---|---|
| Current Rating | 20 A |
| Voltage Rating - DC | 32 V |
| Fuse Type | Automotive |
| Response Time | Fast Blow |
| Package / Case | Blade, Miniature (Low Profile) |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Yellow |
| Size / Dimension | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) |
| RoHS Status | RoHS Compliant |
Substitute Part Grouping Explanation
Substitute parts for the ATM-20LP are grouped into two categories based on form factor and electrical compatibility:
Group 1: Direct Miniature Blade Substitutes (32V DC) These parts maintain identical current rating (20A), voltage rating (32V DC), fast-blow response, miniature blade form factor, and 1kA breaking capacity. Dimensional tolerances remain within acceptable mounting compatibility. Parts in this group: 0297020.L, 0297020.U, 0297020.WXNV, 0297020.WXT (Littelfuse MINI® 297 series).

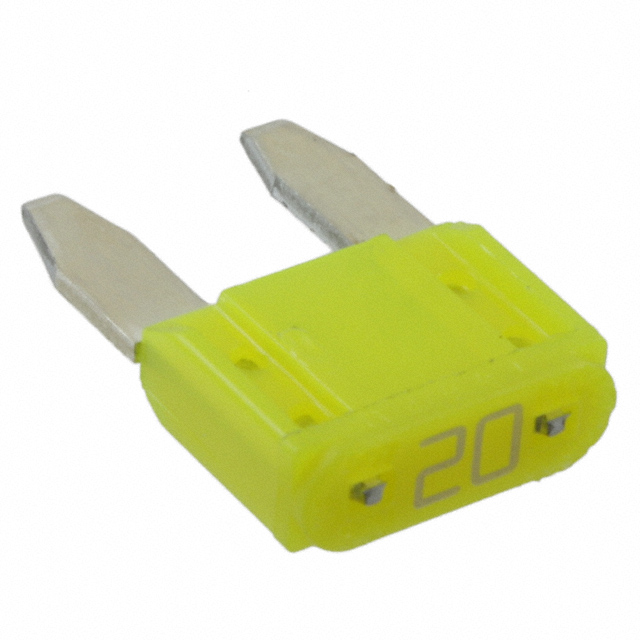

Group 2: Dual Voltage AC/DC Miniature Blade Substitutes (32V AC/DC) These parts provide 20A rating at 32V AC and 32V DC, maintaining miniature blade form factor and fast-blow response. Suitable for circuits operating at either AC or DC voltage. Parts in this group: 0MIN020.HXGLO, 0MIN020.MXGLO, 0MIN020.V, 0MIN020.VP (Littelfuse MINI® series).
Group 3: Micro Blade Form Factor (32V DC) The 0327020.YX2S operates at identical electrical ratings (20A, 32V DC) but uses a smaller Micro blade form factor. Physical dimensions differ, requiring compatible holder. Littelfuse MICRO2™ 327 series.
Group 4: Higher Voltage Miniature Blade (58V DC) The 0997020.WXN maintains 20A current and miniature blade form factor but operates at 58V DC. Suitable only for circuits with higher voltage requirements. Littelfuse MINI® 997 series.
Parameter Comparison
| Part Number | Manufacturer | Current Rating (A) | Voltage - DC (V) | Voltage - AC (V) | Response Time | Package / Case | Breaking Capacity (kA) | Color | Size (mm) | RoHS Status |
|---|---|---|---|---|---|---|---|---|---|---|
| ATM-20LP | Eaton - Bussmann | 20 | 32 | — | Fast Blow | Blade, Miniature (Low Profile) | 1 | Yellow | 10.92 x 3.81 x 8.81 | RoHS Compliant |
| 0297020.L | Littelfuse | 20 | 32 | — | Fast Blow | Blade, Miniature | 1 | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0297020.U | Littelfuse | 20 | 32 | — | Fast Blow | Blade, Miniature | 1 | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0297020.WXNV | Littelfuse | 20 | 32 | — | Fast Blow | Blade, Miniature | 1 | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0297020.WXT | Littelfuse | 20 | 32 | — | — | Blade, Miniature | 1 | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0327020.YX2S | Littelfuse | 20 | 32 | — | — | Blade, Micro | — | Yellow | 9.10 x 3.80 x 7.90 | ROHS3 Compliant |
| 0997020.WXN | Littelfuse | 20 | 58 | — | Fast Blow | Blade, Miniature | 1 | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0MIN020.HXGLO | Littelfuse | 20 | 32 | 32 | Fast Blow | Blade, Miniature | — | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0MIN020.MXGLO | Littelfuse | 20 | 32 | 32 | Fast Blow | Blade, Miniature | — | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0MIN020.V | Littelfuse | 20 | 32 | 32 | Fast Blow | Blade, Miniature | — | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
| 0MIN020.VP | Littelfuse | 20 | 32 | 32 | Fast Blow | Blade, Miniature | — | Yellow | 10.90 x 3.80 x 8.80 | ROHS3 Compliant |
Engineering Selection Recommendations
For Direct Replacement (Miniature Blade, 32V DC, 20A): The Littelfuse 0297020 series (0297020.L, 0297020.U, 0297020.WXNV) provides direct electrical and mechanical compatibility with the ATM-20LP. All three parts carry ROHS3 compliance and maintain 1kA breaking capacity. The 0297020.U variant has the highest inventory availability (2390 pcs) and carries both SAE and UL approvals. The 0297020.WXNV variant offers the largest stock (40885 pcs) for high-volume applications.
For Dual Voltage AC/DC Applications (32V AC/DC): The 0MIN020 series (0MIN020.HXGLO, 0MIN020.MXGLO, 0MIN020.V, 0MIN020.VP) is suitable when circuits operate at either AC or DC voltage. These parts maintain miniature blade form factor and 20A rating. Selection among these variants depends on packaging requirements (bulk vs. card packaging for 0MIN020.VP).
For Micro Form Factor Applications: The 0327020.YX2S is applicable only when the circuit holder supports the smaller Micro blade form factor. This part maintains 20A and 32V DC ratings but requires mechanical compatibility verification with the fuse holder.
For Higher Voltage Circuits (58V DC): The 0997020.WXN is restricted to applications requiring 58V DC operation. This part is not interchangeable with the ATM-20LP in 32V DC circuits.
Frequently Asked Questions (FAQ)
Q: Can the Littelfuse 0297020.L be used as a direct replacement for the ATM-20LP? A: Yes. Both parts share identical electrical ratings (20A, 32V DC), fast-blow response, miniature blade form factor, and 1kA breaking capacity. Dimensional differences (10.92mm vs. 10.90mm length) are within acceptable mounting tolerances.
Q: What is the difference between the 0297020.U and 0297020.WXNV variants? A: Both parts are electrically and mechanically identical. The primary difference is approval agency certification: 0297020.U carries SAE and UL approvals, while 0297020.WXNV carries no listed approval agency. Inventory availability also differs (2390 pcs vs. 40885 pcs).
Q: Can I use the 0MIN020.V in place of the ATM-20LP? A: Yes, for DC applications. The 0MIN020.V is rated for both 32V AC and 32V DC, maintaining the same 20A current rating and miniature blade form factor. It is suitable for circuits operating at 32V DC.
Q: Why is the 0327020.YX2S listed as a substitute if it uses a different form factor? A: The 0327020.YX2S maintains identical electrical performance (20A, 32V DC) but uses a Micro blade form factor instead of Miniature. It is a substitute only for applications where the fuse holder is compatible with Micro blade geometry.
Q: Is the 0997020.WXN compatible with 32V DC circuits? A: No. The 0997020.WXN is rated for 58V DC operation. Using it in a 32V DC circuit would result in over-specification and is not recommended for direct replacement.
Q: What does "Fast Blow" response mean? A: Fast Blow indicates the fuse responds quickly to overcurrent conditions, typically within milliseconds. This characteristic is critical for protecting sensitive automotive circuits from damage.
Q: Are all substitute parts RoHS compliant? A: Yes. The ATM-20LP is RoHS Compliant, and all listed Littelfuse substitutes carry ROHS3 Compliant status, ensuring environmental and regulatory compliance.
