ATM-20 Equivalent & Substitute Parts

Part Overview

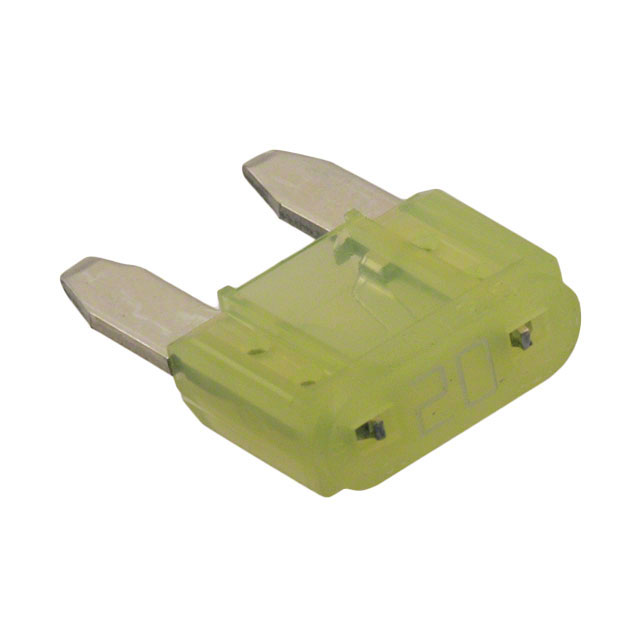

The ATM-20 is a 20 A automotive blade fuse rated for 32 V DC operation with fast-blow response characteristics. Manufactured by Eaton - Bussmann Electrical Division, this miniature blade fuse is designed for automotive electrical protection applications requiring a holder-mounted installation. The part is currently in active production status with 1114 units in stock. Substitute parts are identified when they maintain identical electrical ratings, mechanical dimensions, and functional specifications to ensure direct compatibility in automotive fuse holder applications.

Substiute Parts

ATM-20

Eaton - Bussmann Electrical DivisionIn Stock: 1213ATM-20 Datasheet

Current PartRFQ

BK/ATM-20

Eaton - Bussmann Electrical DivisionIn Stock: 1402BK/ATM-20 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ATM-20 are qualified based on strict equivalence across the following critical parameters:

• Current Rating: 20 A (exact match required)
• Voltage Rating (DC): 32 V (exact match required)
• Response Time: Fast Blow (exact match required)
• Fuse Type: Automotive (exact match required)
• Package / Case: Blade, Miniature (exact match required)
• Breaking Capacity @ Rated Voltage: 1 kA (exact match required)
• Physical Dimensions: 0.430" L x 0.150" W x 0.347" H (exact match required)
• Mounting Type: Requires Holder (exact match required)

The BK/ATM-20 variant meets all electrical and mechanical specifications for direct substitution. Additional cross-reference part numbers (0MIN020.ZXPRO, 0297020.U, 0997020.WXN, 0MIN020.MXGLO, 0MIN020.V) are documented as equivalent alternatives within the Eaton - Bussmann product family.

Parameter Comparison

Engineering Selection Recommendations

Both ATM-20 and BK/ATM-20 are active production parts from Eaton - Bussmann Electrical Division with identical electrical and mechanical specifications. The BK/ATM-20 variant carries ROHS3 compliance certification, providing enhanced regulatory alignment for applications subject to stricter environmental standards. Selection between these parts should be based on inventory availability and specific regulatory requirements of the end application. Both parts are suitable for direct substitution in automotive fuse holder applications requiring 20 A, 32 V DC protection with fast-blow response.

Frequently Asked Questions (FAQ)

Q: Can the BK/ATM-20 be used as a direct replacement for the ATM-20?

A: Yes. Both parts share identical current rating (20 A), voltage rating (32 V DC), response time (fast blow), package type (blade, miniature), breaking capacity (1 kA), and physical dimensions (0.430" L x 0.150" W x 0.347" H). Direct substitution is supported.

Q: What is the significance of the ROHS3 compliance on the BK/ATM-20?

A: ROHS3 represents an updated compliance certification level. Both parts meet RoHS requirements; the BK/ATM-20 carries the newer ROHS3 designation. This does not affect electrical or mechanical compatibility.

Q: Are the cross-reference part numbers (0MIN020.ZXPRO, 0297020.U, etc.) interchangeable with ATM-20?

A: These part numbers are documented as equivalent alternatives within the Eaton - Bussmann product family and meet the same electrical and mechanical specifications. Compatibility is based on matching all critical parameters: 20 A current rating, 32 V DC voltage rating, fast-blow response, miniature blade package, and identical physical dimensions.

Q: What mounting configuration is required for the ATM-20 and its substitutes?

A: All equivalent parts require a dedicated fuse holder for installation. These are not solder-in or surface-mount components. The miniature blade package requires a compatible automotive fuse holder rated for 20 A, 32 V DC operation.

Q: Can these fuses be used in applications rated for higher voltage?

A: No. The 32 V DC voltage rating is the maximum rated voltage. Use only in applications where the circuit voltage does not exceed this specification.
