ATE2DGPC104 Equivalent & Substitute Parts

Part Overview

The ATE2DGPC104 is a toggle switch manufactured by TE Connectivity ALCOSWITCH Switches, configured as a Double Pole Double Throw (DPDT) switch with On-On functionality. This through-hole mounted component is rated for 0.4VA at 20V AC/DC operation with a standard round actuator and epoxy sealed terminals. The part is currently classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing design support and procurement requirements.

Substiute Parts

ATE2DGPC104

TE Connectivity ALCOSWITCH SwitchesIn Stock: 757ATE2DGPC104 Datasheet

Current PartRFQ

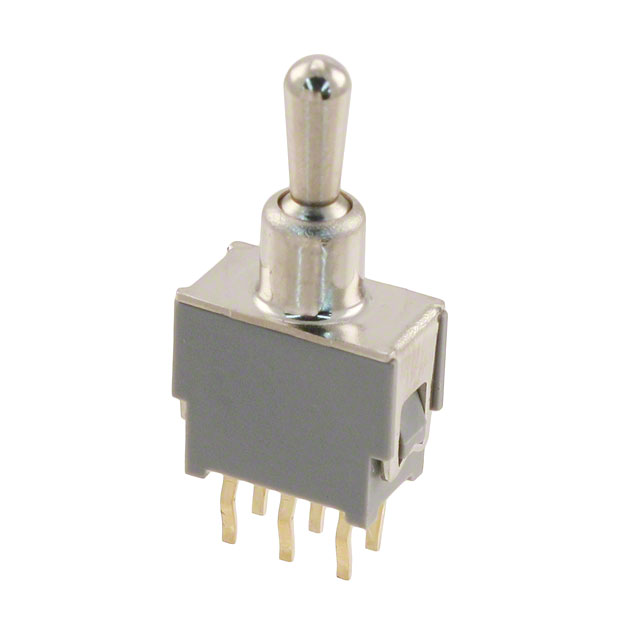

ATE2D-2M3-10-Z

Nidec Components CorporationIn Stock: 3065ATE2D-2M3-10-Z Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete ATE2DGPC104 is determined by strict alignment of the following electrical and mechanical parameters:

Circuit and Function Compatibility: The substitute part must maintain DPDT circuit configuration with On-On switch function to preserve electrical behavior in the target application.

Mounting and Physical Compatibility: Through-hole mounting type and PC pin termination style must be identical. Actuator type (standard round) and actuator length (6.00mm) must match to ensure mechanical fit within the panel cutout and user interface consistency.

Electrical Performance Envelope: The substitute part must operate within the voltage and current requirements of the original application. The ATE2DGPC104 operates at 0.4VA maximum at 20V. Substitute parts with higher voltage or current ratings remain compatible provided they do not exceed the application's design specifications.

Base Product Series: Both the main part and substitute share the ATE2D base product number, confirming compatibility within the same product family.

The identified substitute ATE2D-2M3-10-Z meets all mandatory compatibility criteria while offering enhanced electrical performance characteristics and active product status.

Parameter Comparison

Engineering Selection Recommendations

The ATE2D-2M3-10-Z is a direct functional substitute for the obsolete ATE2DGPC104. Both components share identical circuit configuration (DPDT), switch function (On-On), mounting type (through-hole), actuator specifications (standard round, 6.00mm length), and termination style (PC pin).

The substitute part offers the following advantages:

Product Status: The ATE2D-2M3-10-Z maintains active product status with Nidec Components Corporation, ensuring long-term availability and supply chain continuity compared to the obsolete ATE2DGPC104.

Electrical Performance: The substitute provides higher voltage rating (48V AC/DC versus 20V) and extended electrical life (50,000 cycles versus 10,000 cycles), delivering enhanced performance margins for the application.

Compliance: Both parts carry identical ECCN (EAR99) and HTSUS (8536.50.9065) classifications. The substitute achieves RoHS3 compliance and MSL 1 rating, meeting modern regulatory requirements.

Operating Temperature: The substitute extends the upper operating temperature limit to 85°C compared to 80°C, providing improved thermal margin.

Selection of the ATE2D-2M3-10-Z eliminates obsolescence risk while maintaining full mechanical and electrical compatibility with the original ATE2DGPC104 design.

Frequently Asked Questions (FAQ)

Q: Can the ATE2D-2M3-10-Z directly replace the ATE2DGPC104 in existing designs?

A: Yes. Both components share identical DPDT circuit configuration, On-On switch function, through-hole mounting, PC pin termination, standard round actuator type, and 6.00mm actuator length. Physical and electrical compatibility is confirmed.

Q: What are the key differences between these two parts?

A: The primary differences are manufacturer (TE Connectivity versus Nidec Components), product status (obsolete versus active), voltage rating (20V versus 48V), current rating (0.4VA versus 50mA), electrical life (10,000 versus 50,000 cycles), and operating temperature upper limit (80°C versus 85°C). The substitute provides enhanced performance specifications.

Q: Does the higher voltage rating of the ATE2D-2M3-10-Z affect compatibility?

A: No. A substitute part with higher voltage rating remains compatible with applications designed for lower voltage operation. The 48V rating of the substitute accommodates the 20V requirement of the original design with additional margin.

Q: Are there packaging differences between these parts?

A: The ATE2DGPC104 is supplied without specified packaging, while the ATE2D-2M3-10-Z is packaged in trays. Packaging format does not affect functional compatibility or performance.

Q: What compliance certifications apply to the substitute part?

A: The ATE2D-2M3-10-Z is RoHS3 compliant with MSL 1 (unlimited moisture sensitivity level), meeting current regulatory standards. Both parts share identical ECCN (EAR99) and HTSUS (8536.50.9065) classifications.

Q: Is the extended electrical life of the substitute part beneficial?

A: Yes. The ATE2D-2M3-10-Z provides 50,000 electrical cycles compared to 10,000 cycles for the ATE2DGPC104, extending component service life and reducing replacement frequency in high-cycle applications.

Q: Can the substitute part operate across the full temperature range of the original?

A: Yes. The ATE2D-2M3-10-Z operates from -20°C to 85°C, which encompasses the -20°C to 80°C range of the ATE2DGPC104 with additional upper temperature margin.
